Tredia L4-1795cc 1.8L SOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Turbocharger
Turbocharger

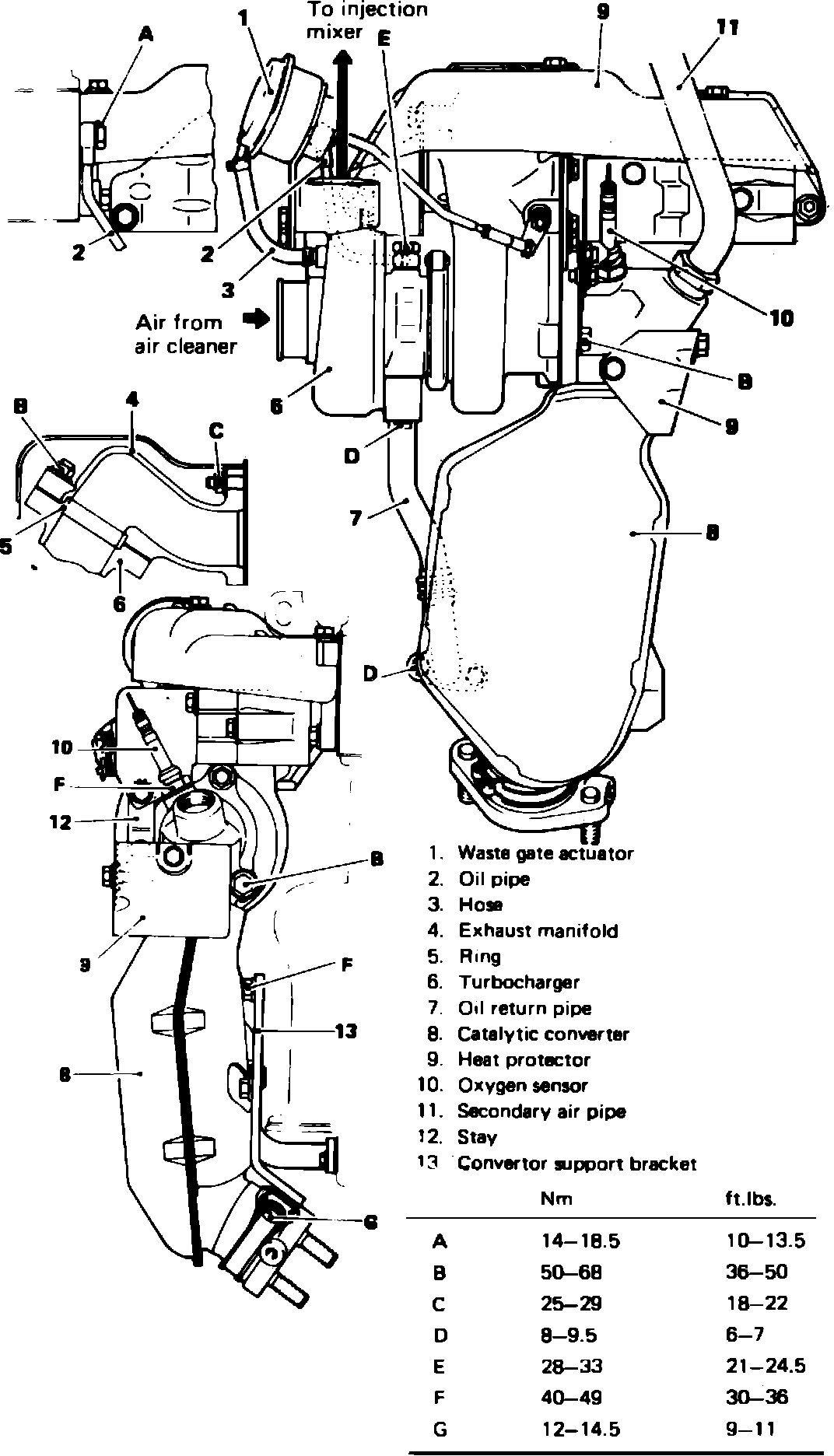

Fig. 2 Turbocharger assembly.:
