Power Window Switch - Connection, Manual Update

85mitsubishi01

SUBJECT:
POWER WINDOW SWITCH CONNECTIONSSERVICE MANUAL UPDATE
NO. STB-85-08-008

DATE May, 1985

MODEL 1985 Starion
PURPOSE

This bulletin is issued to update the power window switch connection table on page 8-238 of the 1985 Starion Service Manual. As reference, please write the STB number in the revision box on page 8-238.



REVISION STB Revision
PAGE 8-238 COMPONENT SERVICE-POWER WINDOW STB-85-08-008

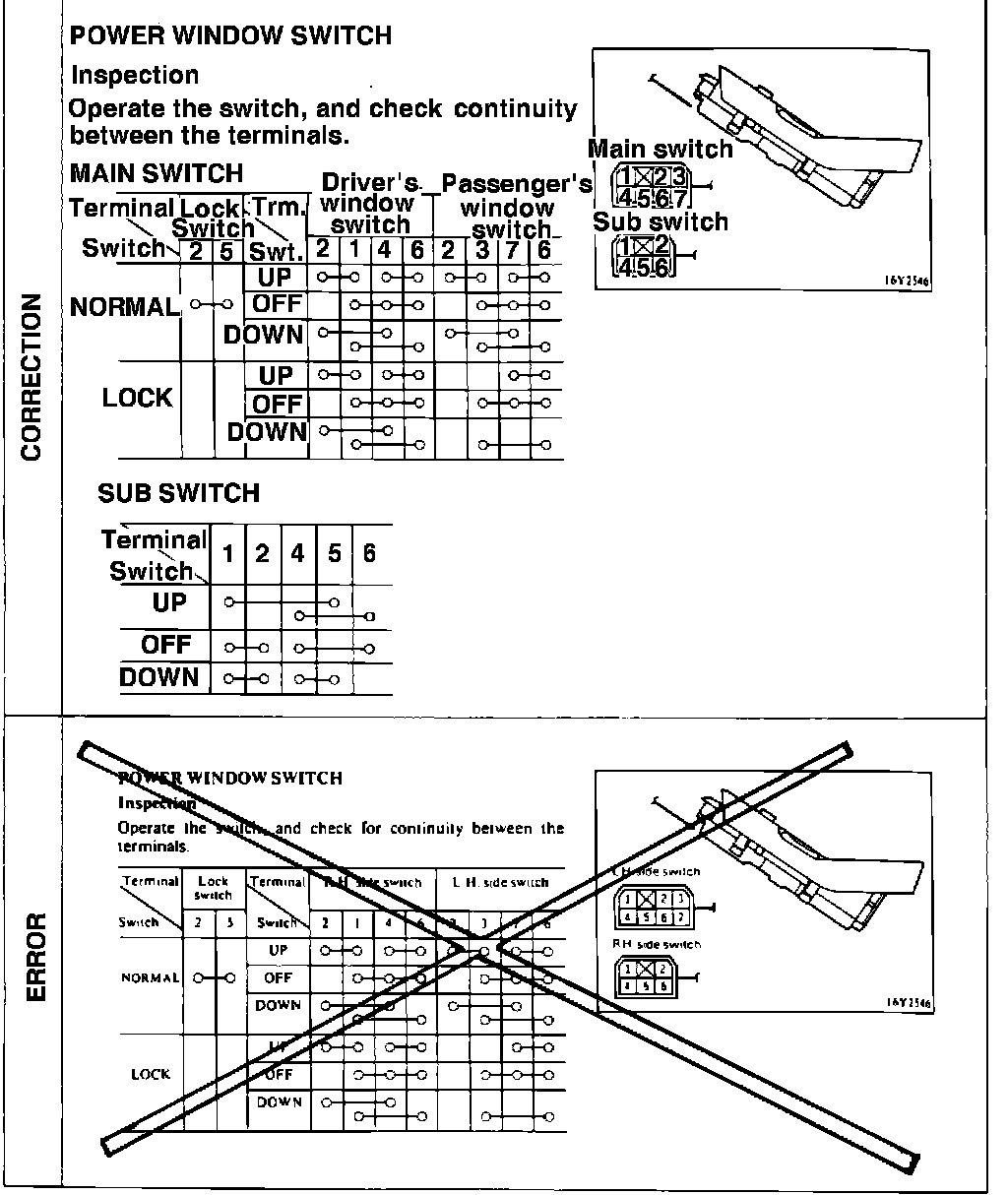

See illustration below.
