Home >> Mitsubishi >> 1985 >> Starion L4-2555cc 2.6L SOHC Turbo VIN H FI >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Catalytic Converter >> Locations

Catalytic Converter: Locations

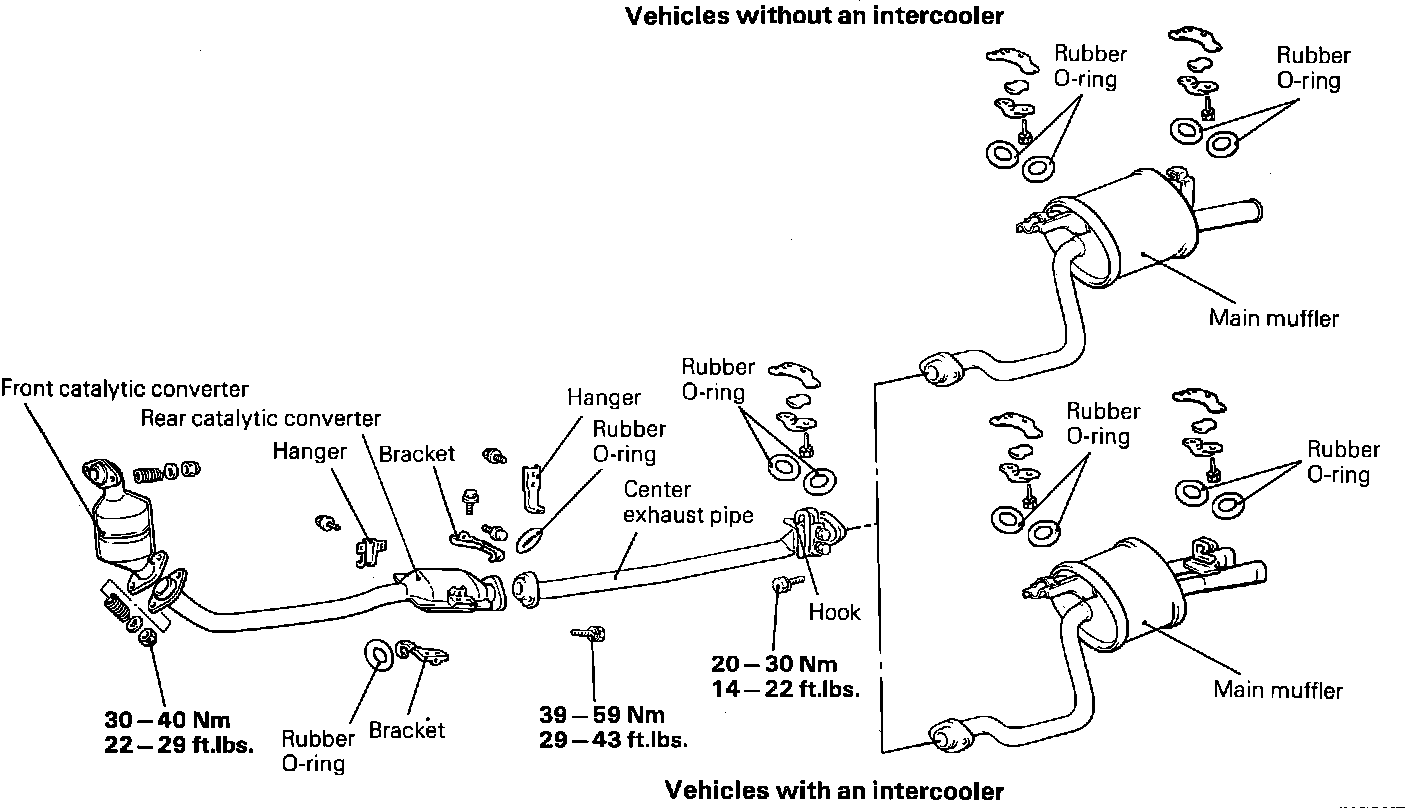

Fig. 604 Exhaust system exploded view.:
