Home >> Mitsubishi >> 1985 >> Starion L4-2555cc 2.6L SOHC Turbo VIN H FI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Diagrams >> Electrical Diagrams >> Fuel Injection (ECI) >> Less Intercooler

Less Intercooler

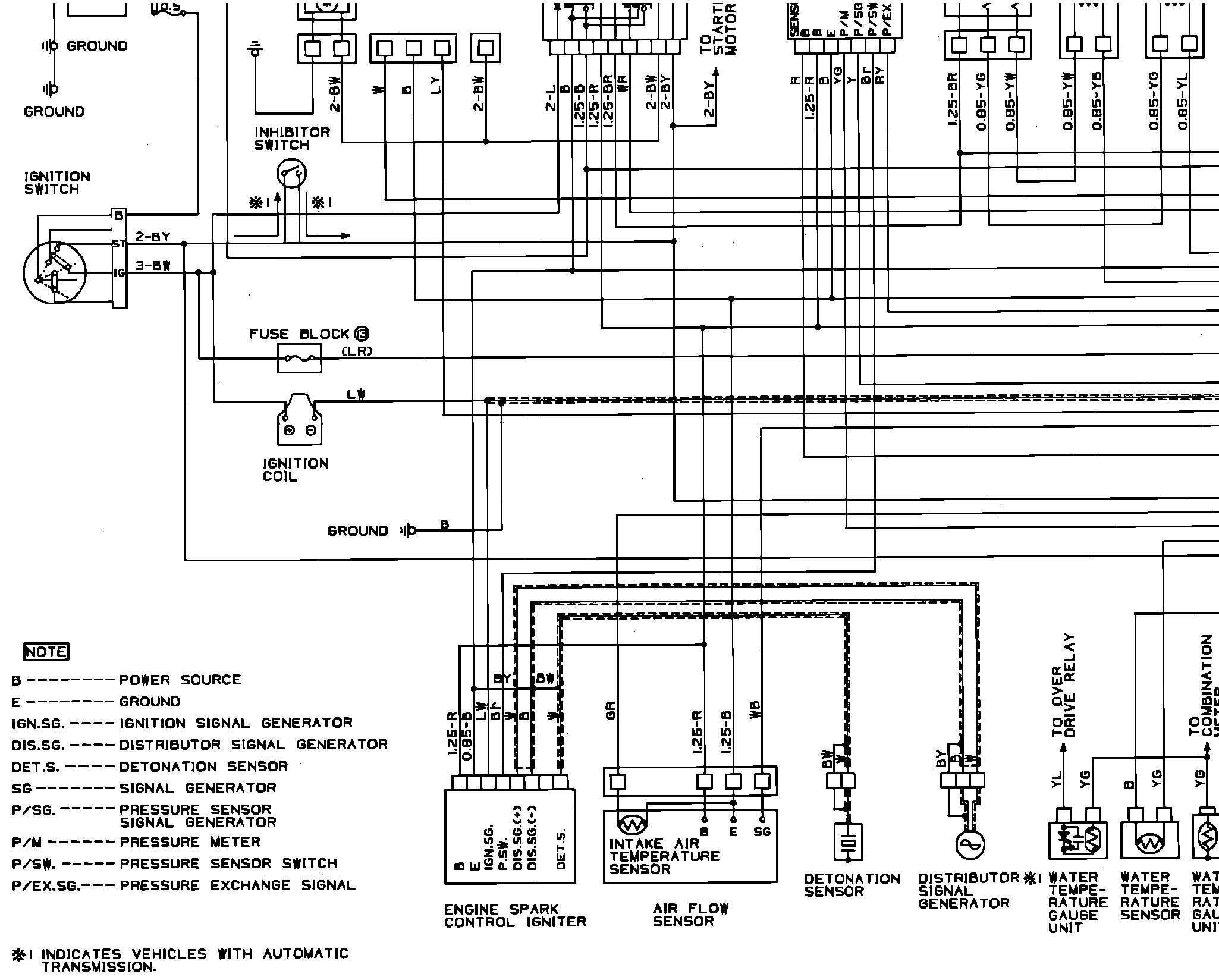

��h/9,i/�7i/Fig. 51d Fuel Injection (ECI) Less Intercooler.:
