Mitsubishi
>>
1985
>>
Starion L4-2555cc 2.6L SOHC Turbo VIN H FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Description and Operation
>>
General System Description
>>
Without Intercooler
Without Intercooler

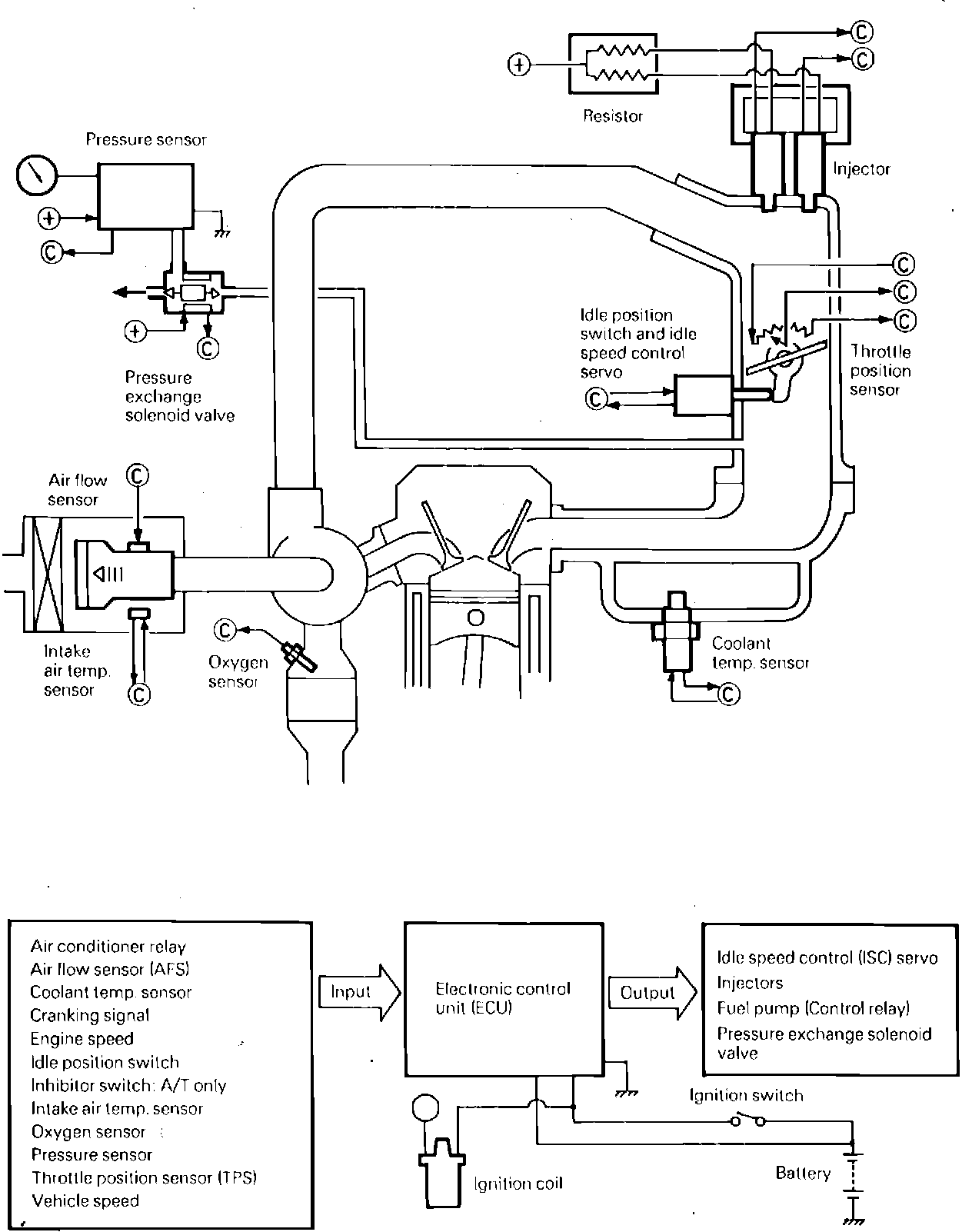

ECI System Diagram, W/O Intercooler:
