Starion L4-2555cc 2.6L SOHC Turbo VIN H FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Description and Operation
>>
General System Description
>>
With Intercooler
With Intercooler

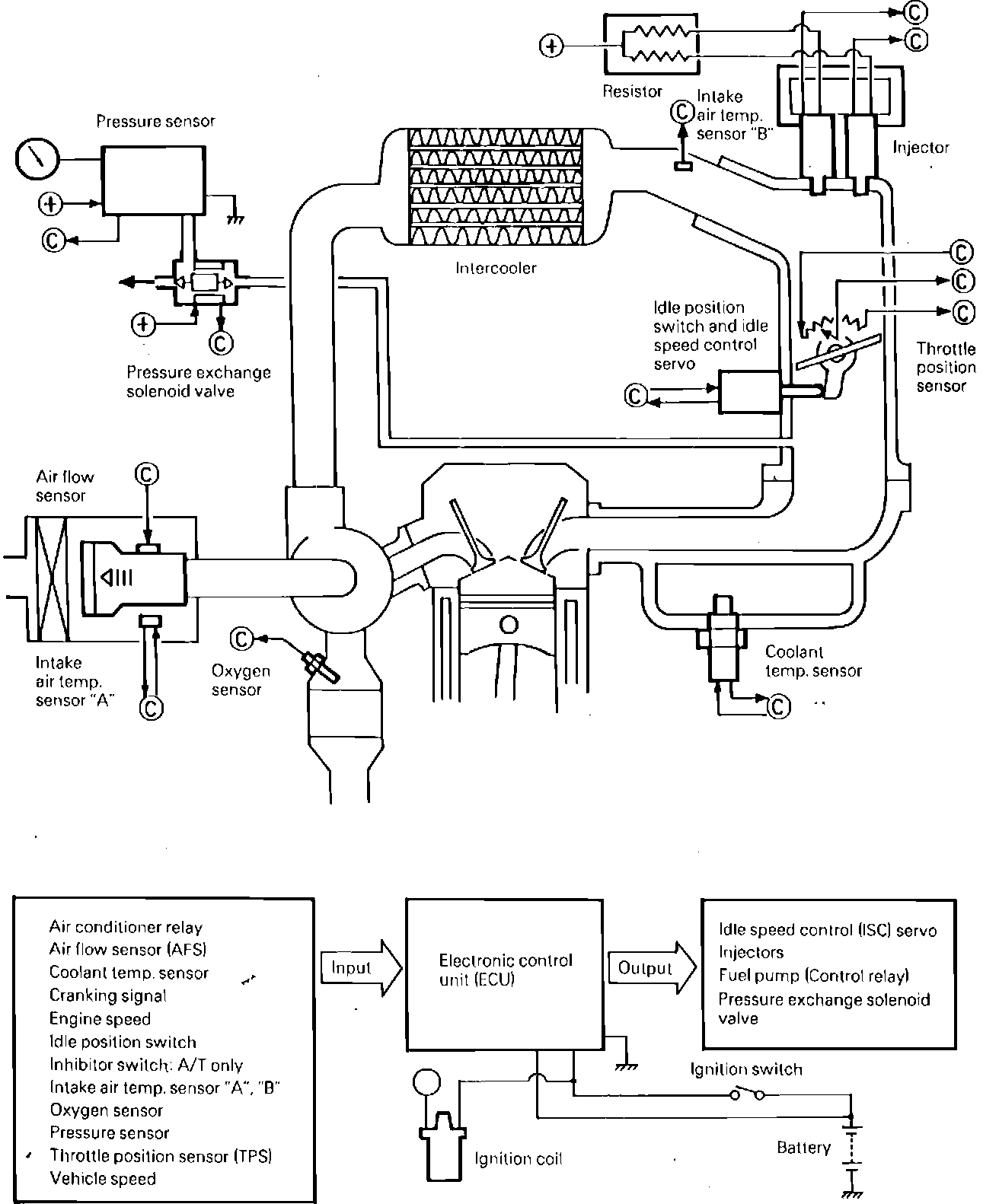

ECI System Diagram, With Intercooler:
