85mitsubishi01SUBJECT:
1985.5 STARION FUSE BLOCK UPDATE
NO. STB-85-08-010
DATE July, 1985
MODEL 1985.5 Starion w/intercooler
PURPOSE This bulletin is issued to update the 1985.5 Starion Service Manual Turbo-Intercooler Supplement with additional information on fuse locations and amperage ratings. It also contains a correction for one of the trouble-shooting charts in the 1985 Starion Service Manual.
As reference to this bulletin, please write the STB number in the revision box on Pages 8-2 and 8-6 of the 1985.5 Starion Service Manual Turbo-Intercooler Supplement and on Page 24-18 of the 1985 Starion Service Manual.
1985.5 STARION SERVICE MANUAL SUPPLEMENT - TURBO-INTERCOOLER

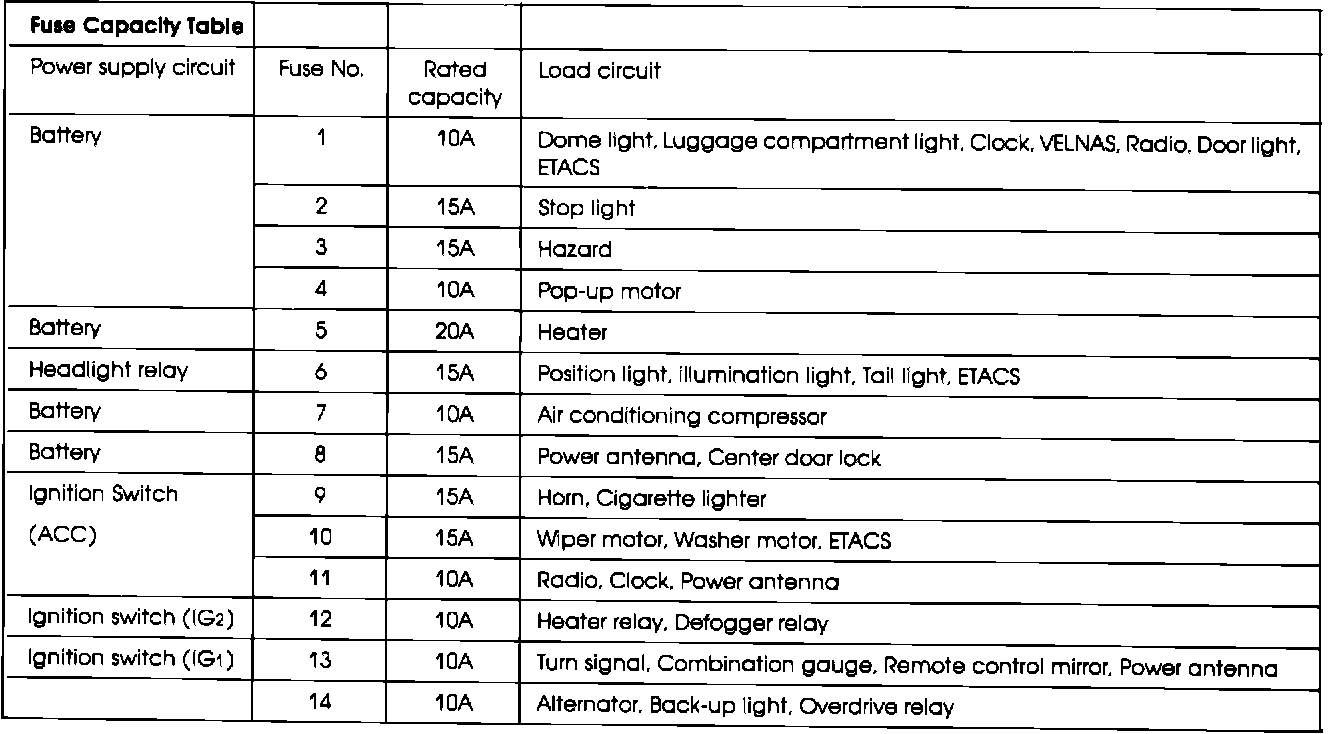

PAGE 8-2 SPECIFICATIONS: The following fuse table contains data on fuse location, amperage rating, and description of circuits protected by each fuse.
(Note: This is a new table, and you may wish to make a copy of it to paste onto Page 8-2.)

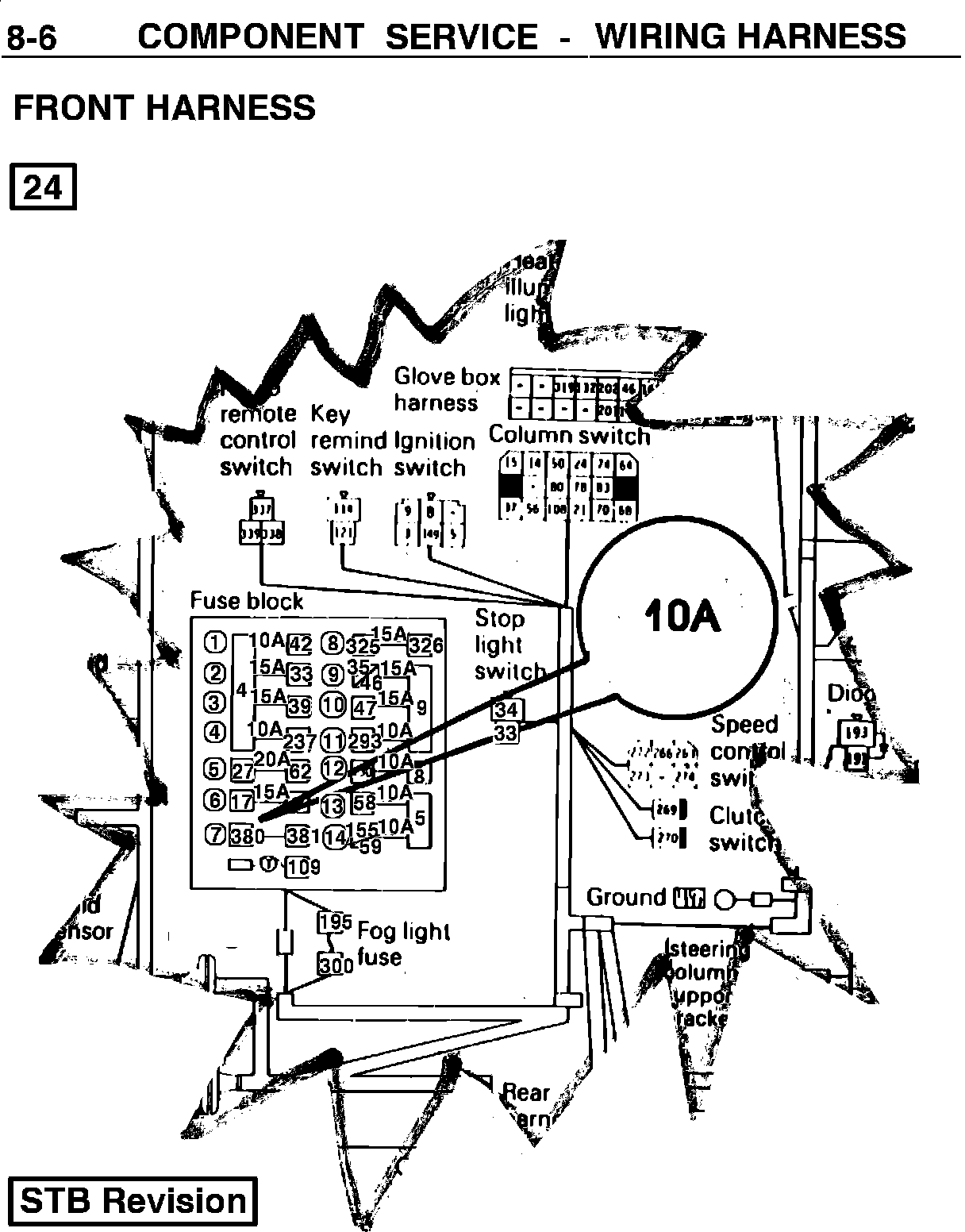

PAGE 8-6 COMPONENT SERVICE - WIRING HARNESS Add a notation to the Fuse Block illustration to indicate that there is a 10-ampere fuse in location #7 as illustrated below.
1985 STARION SERVICE MANUAL

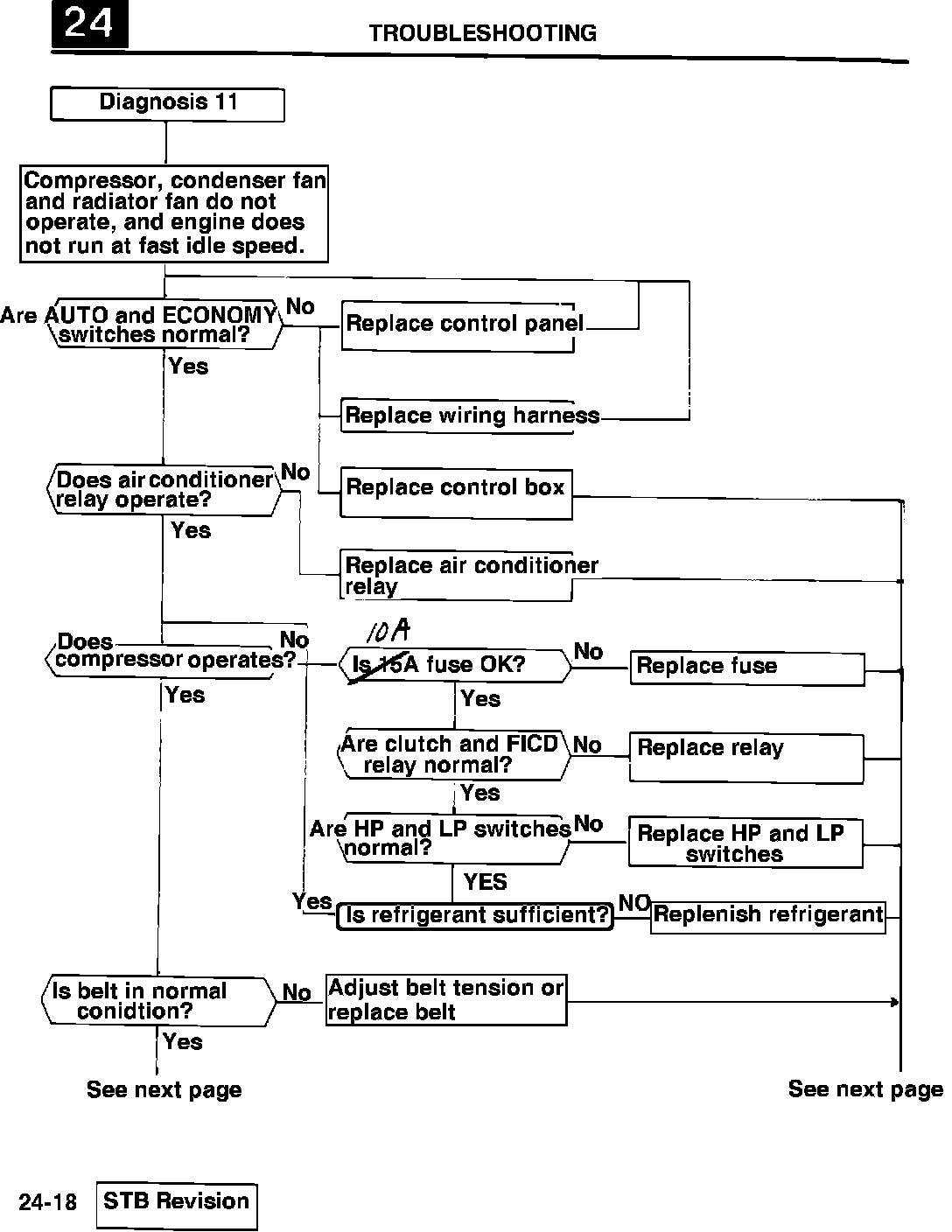

PAGE 24-18 TROUBLESHOOTING: Change the amperage rating of the fuse from 15A to 10A as shown below.
