Transaxles - Specifications Update
85mitsubishi03SUBJECT:
MIRAGE TRANSAXLE SPECIFICATIONS UPDATE
NO. STB-85-21 -006
DATE September, 1985
MODEL 1985 Mirage
STB Revision
PURPOSE STB-85-21-006
This bulletin is issued to update gear ratio specifications for the manual and automatic transaxles in the 1985 Mirage Service Manual.
As reference to this bulletin, please write the STB number in the boxes on Pages 21-2, 21-3, 21-16, and 21-17 of the 1985 Mirage Service Manual.

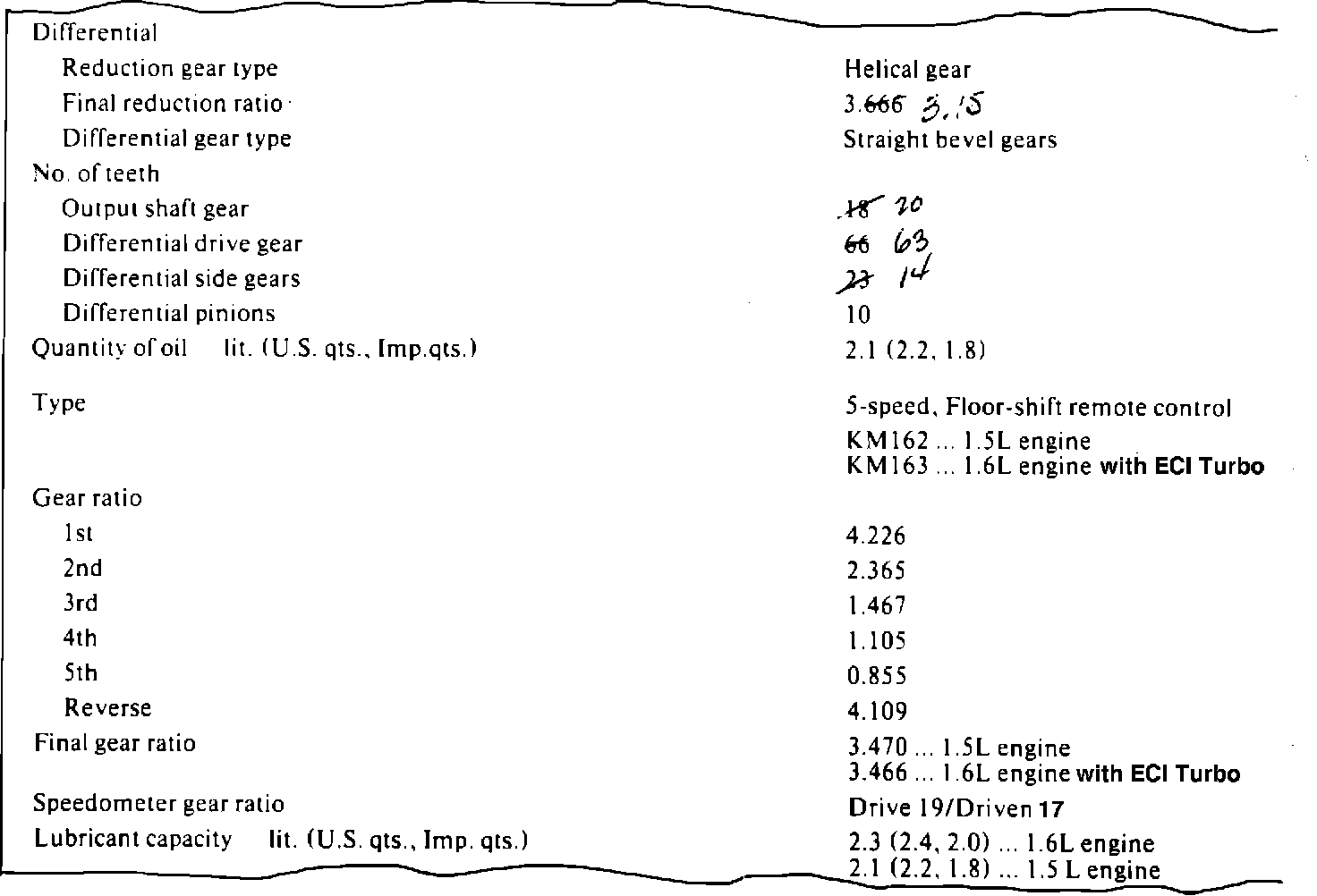

PAGE 21-2 SPECIFICATIONS Change the final reduction ratio, numbers of gear teeth, and speedometer gear ratio as shown below.

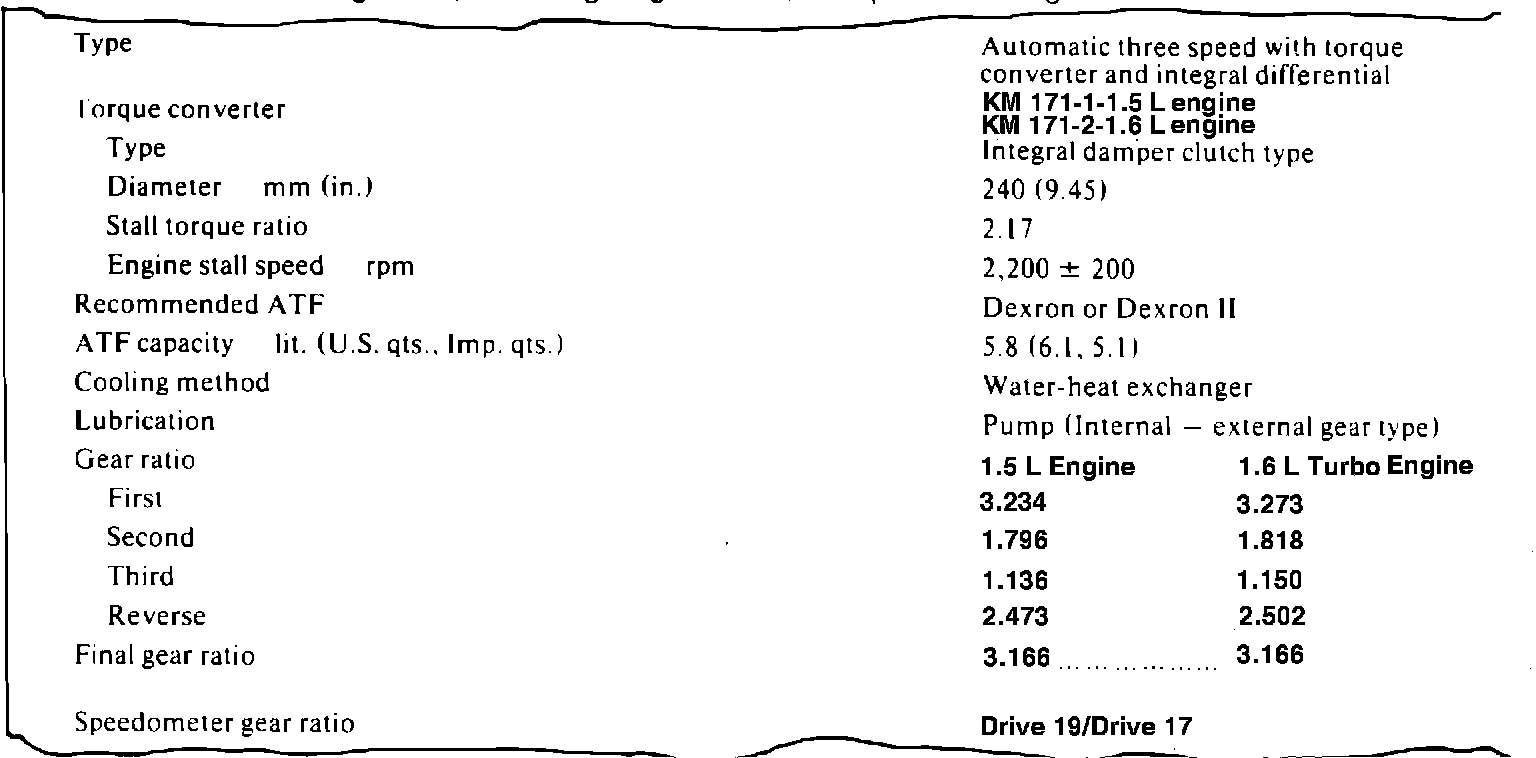

PAGE 21-3 SPECIFICATIONS
Add transaxle designation, Turbo-engine gear ratios, and speedometer gear ratios as shown below.

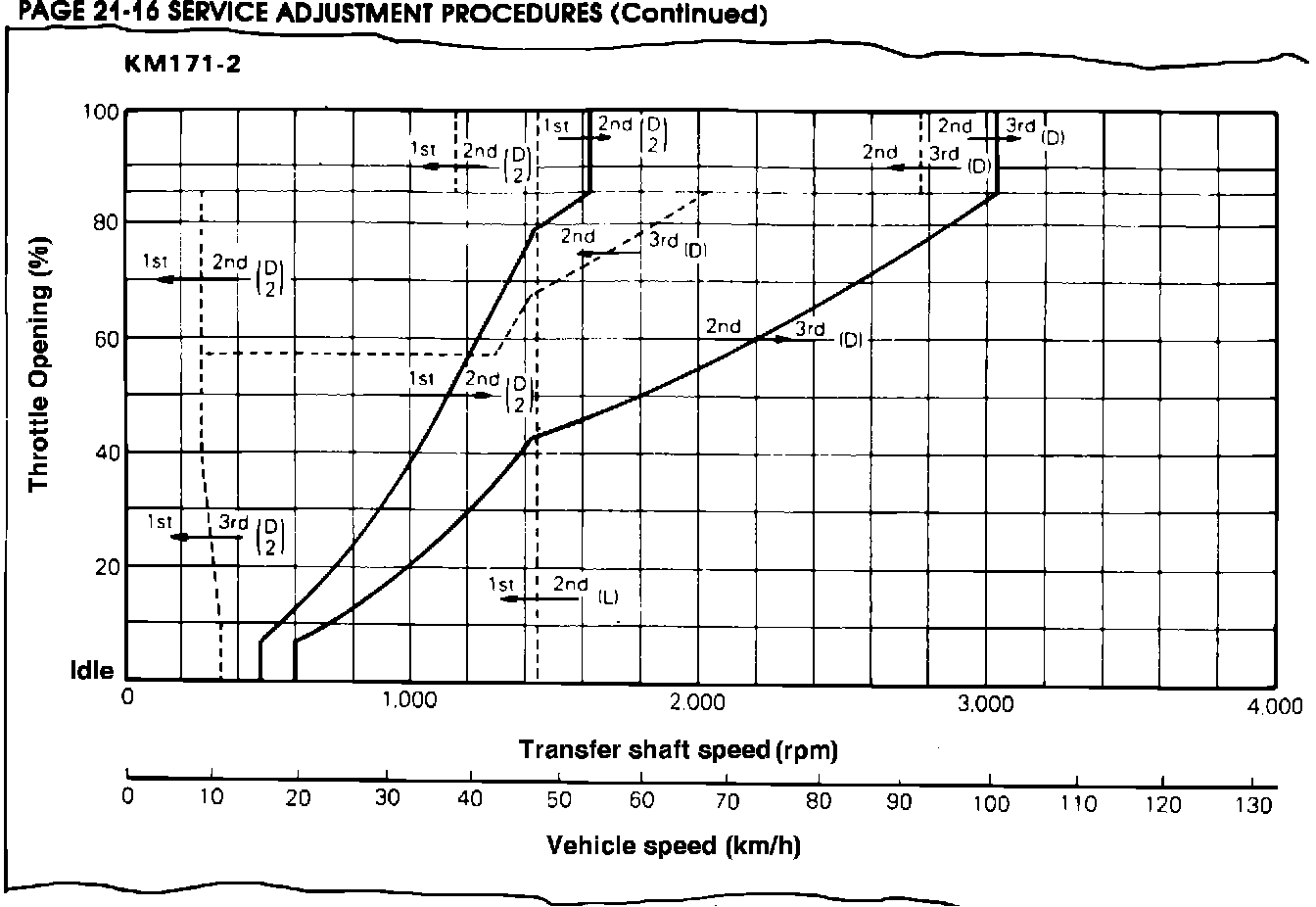

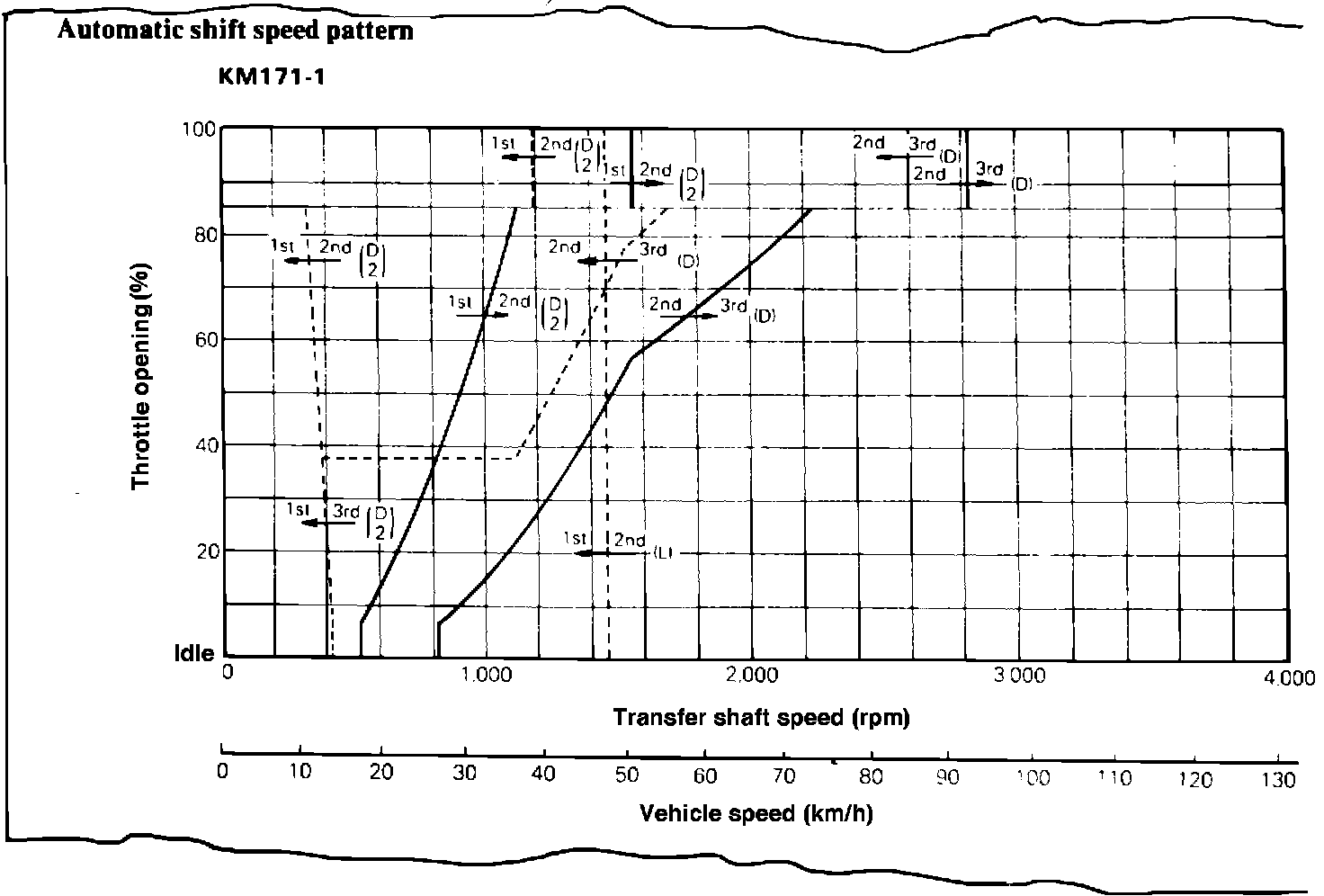

PAGE 21-16 SERVICE ADJUSTMENT PROCEDURES Replace the "Automatic Shift Speed Pattern" graphs with the revised graphs shown below and on page 3.
PAGE 21-17 SERVICE ADJUSTMENT PROCEDURES Replace the table "Elements In Use At Each Position Of The Selector Lever" with the table illustrated below.
