Vacuum Hose Routing Diagram (Fed.)
Vacuum Hose Routing Diagram (Fed.)

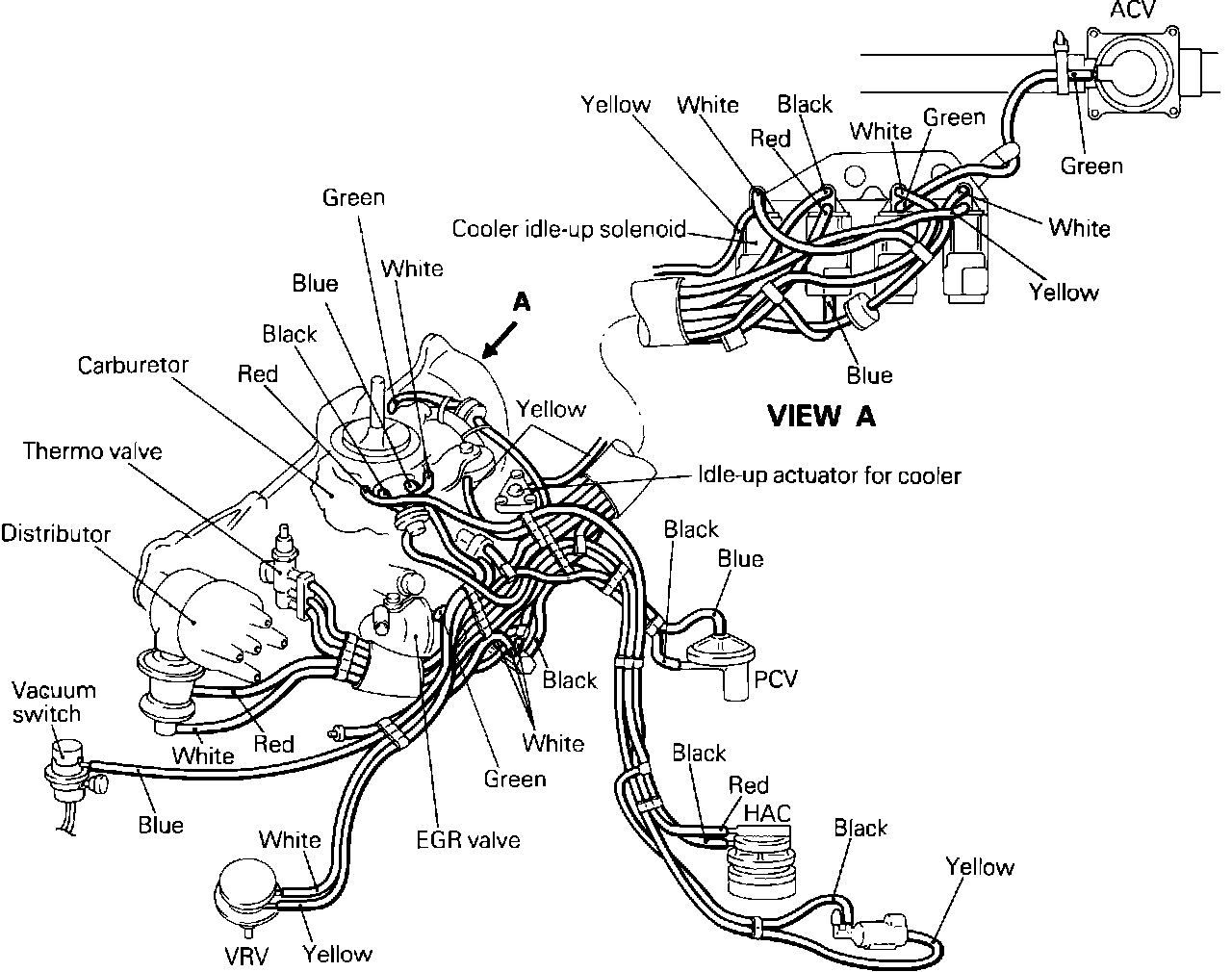

Fig. 203 Vacuum hose routing diagram (Federal):
