Fuel Injection System Wiring Diagram
Fuel Injection System Wiring Diagram

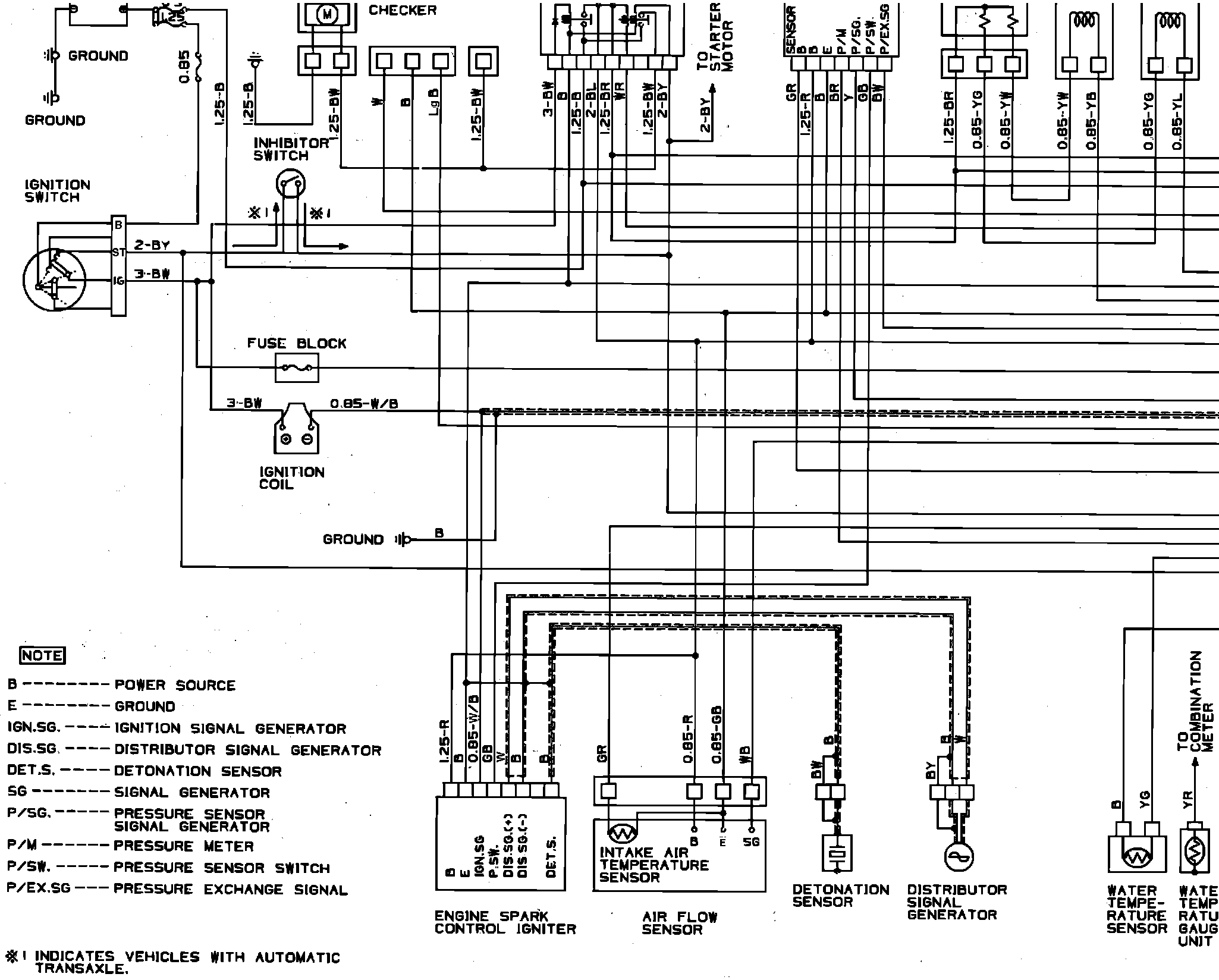

Ek/�Mk/Xk/Fig. 36d Fuel Injection (ECI)-Turbo:
