A/C - Water Temperature Switch Torque Spec Revision

85mitsubishi04

SUBJECT:

WATER TEMPERATURE SWITCH TORQUE SPECIFICATION REVISION
NO. STB-85-24-010

DATE December 1985

MODEL Models with A/C
This bulletin supersedes STB-85-24-001 which is invalid and should be discarded!

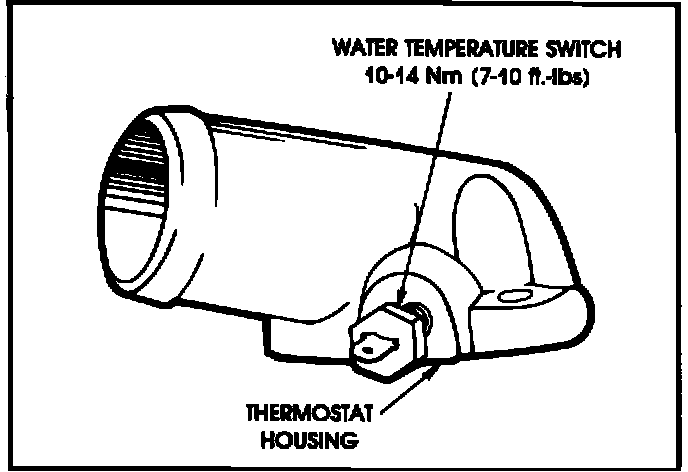

FIGURE 1:

PURPOSE This bulletin presents revised torque specifications for the water temperature switch in the thermostat housing on some models equipped with air conditioning. See Fig. 1.
CAUTION Excessive tightening torque will crack the thermostat housing!

TORQUE SPECIFICATIONS 10-14 N-m (7-10 ft.lbs)

NOTE:
After torquing the switch, be sure to re-connect the wire which serves as a ground for the A/C compressor. Without this ground, the compressor will not operate!
