Cordia L4-1795cc 1.8L SOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Computers and Control Systems
>>
Fuel Injection (ECI) System
Fuel Injection (ECI) System

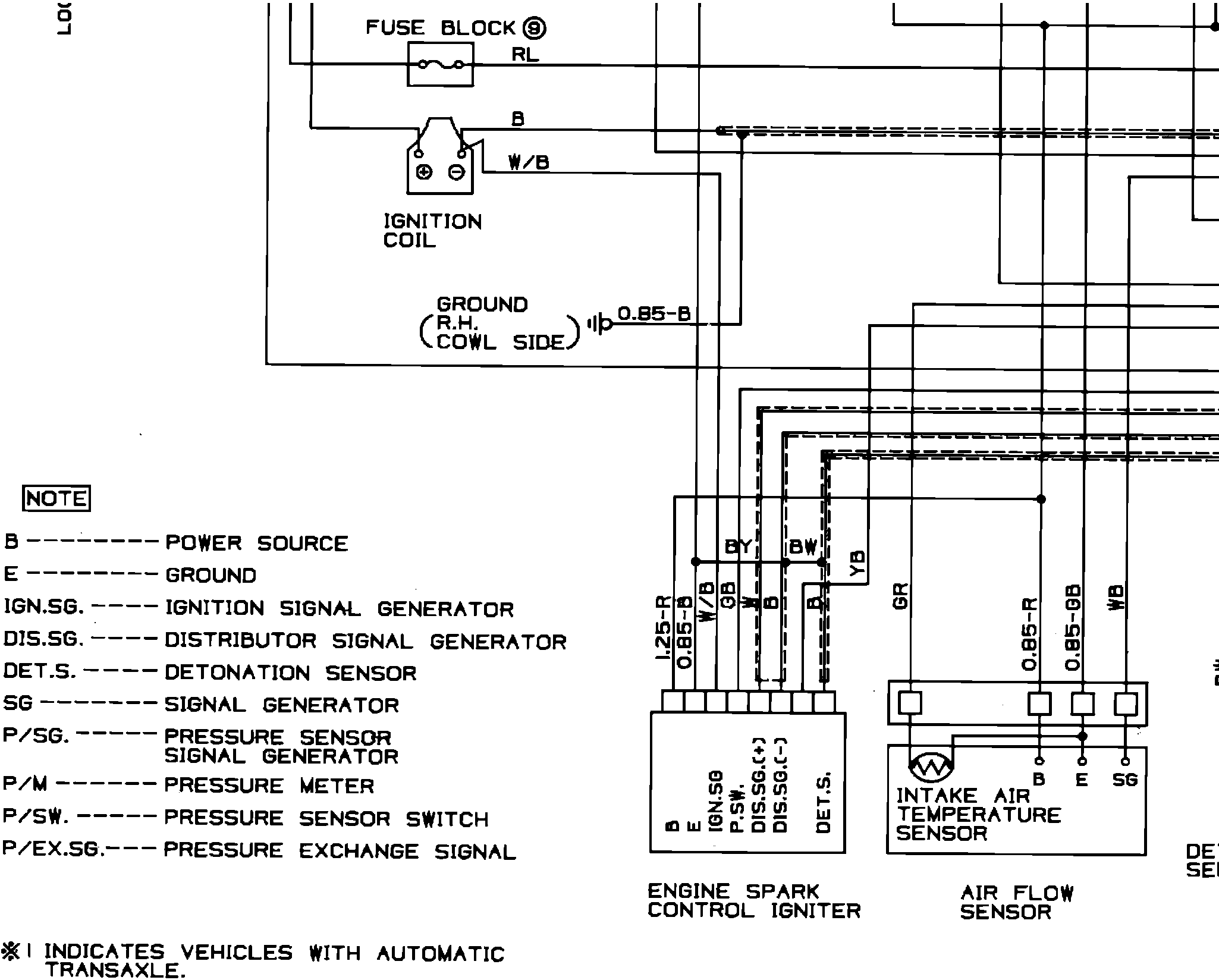

� j/�5j/�[j/,�j/t�j/Fig. 6f Fuel Injection (ECI) System:
