Transaxle - Mounting Bolt Torque Update

84mitsubishi01

SUBJECT:

CORDIA/TREDIA TRANSAXLE MOUNTING BOLT TORQUE - SERVICE MANUAL UPDATE

NO. STB-84-09-003

DATE June, 1984

MODEL 1984 Cordia/Tredia

This bulletin is issued to update the torque specification for the 1984 Cordia/Tredia transaxle mounting bolts. Please attach orange labels to the tops of pages 9-7 and 9-16 of the 1984 Cordia/Tredia Service Manual as a reference to this bulletin.

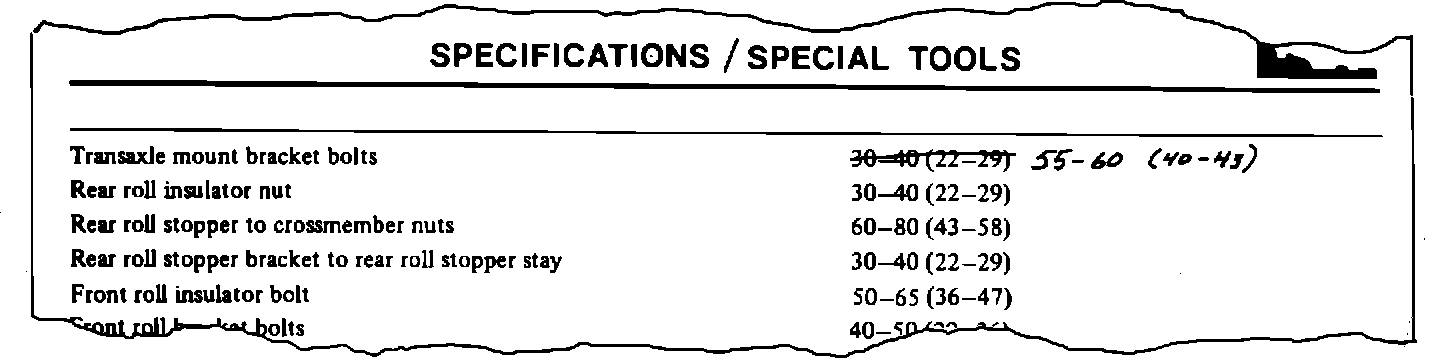

PAGE 9-7 SPECIFICATIONS/SPECIAL TOOLS

Change the torque specification for the transaxle mount bracket bolts as shown below.

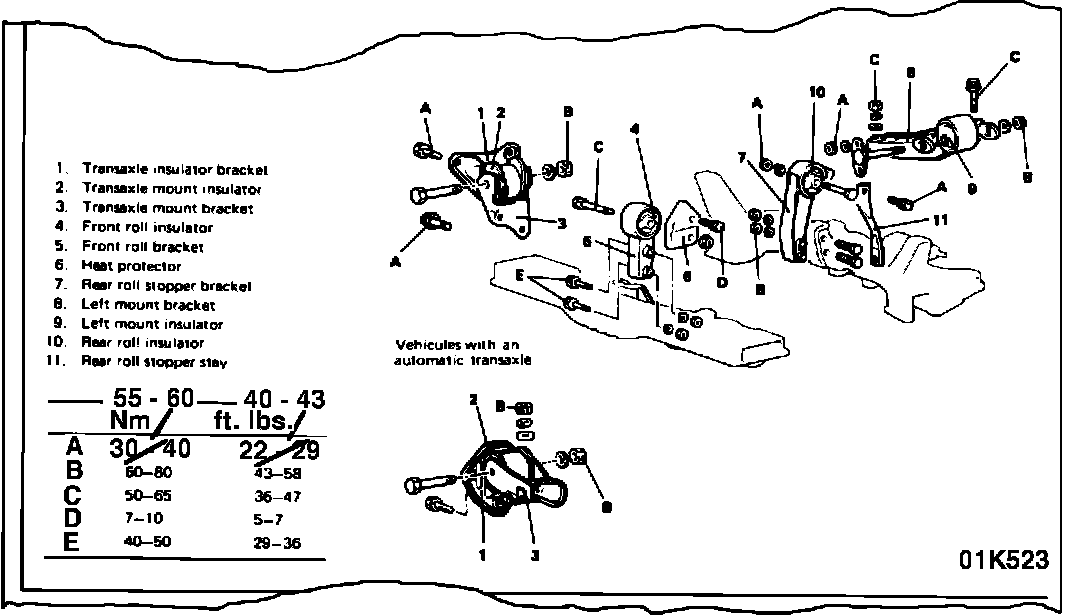

PAGE 9-16 COMPONENT SERVICE - ENGINE MOUNTING

Change the torque values in the illustration at the bottom of the page as shown below.
