Power Antenna Circuit - Service Manual Update
84mitsubishi01SUBJECT:
POWER ANTENNA CIRCUIT - SERVICE MANUAL UPDATE
No. STB-84-08-007
DATE June 1984
MODEL 1984 Cordia/Tredia

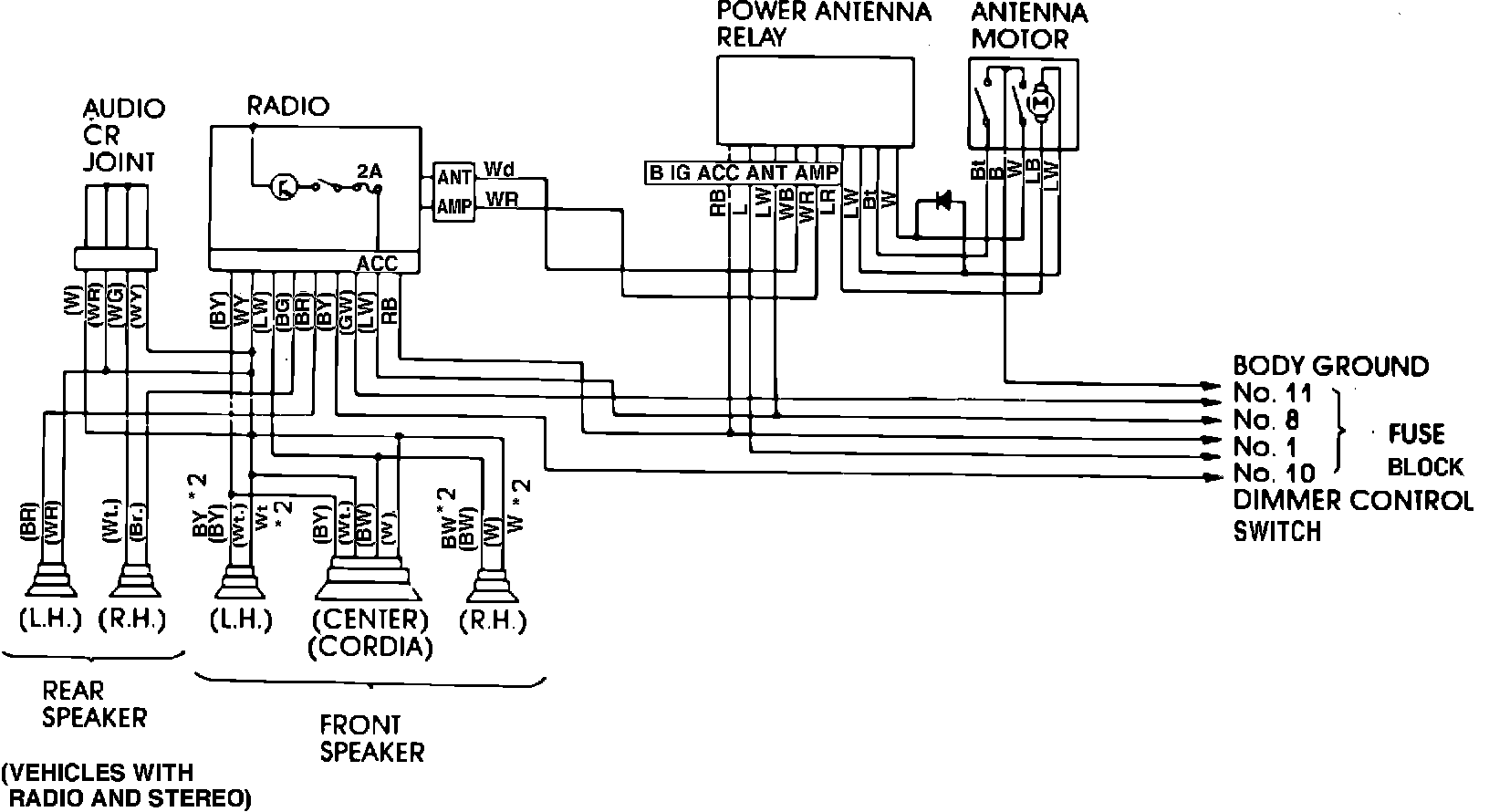

The circuit diagram for the 1984 Cordia power antenna was not included in the 1984 Cordia/Tredia Service Manual. This bulletin is issued to update the manual.
Please attach the orange label to the wiring diagram at the back of the manual as a reference to this bulletin.
