Air Conditioner - Performance
>>
Performance Test Diagnosis
Performance Test Diagnosis

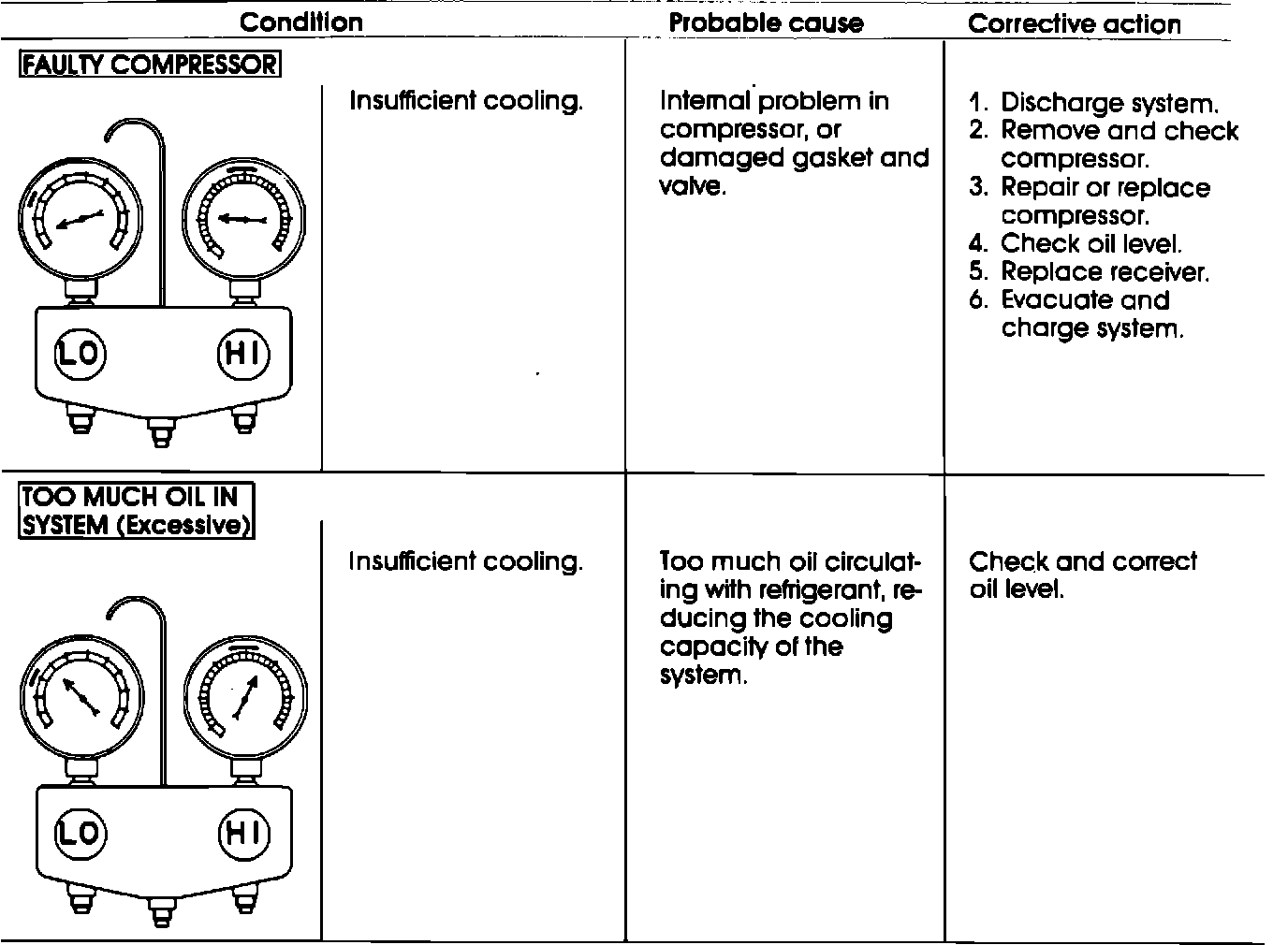

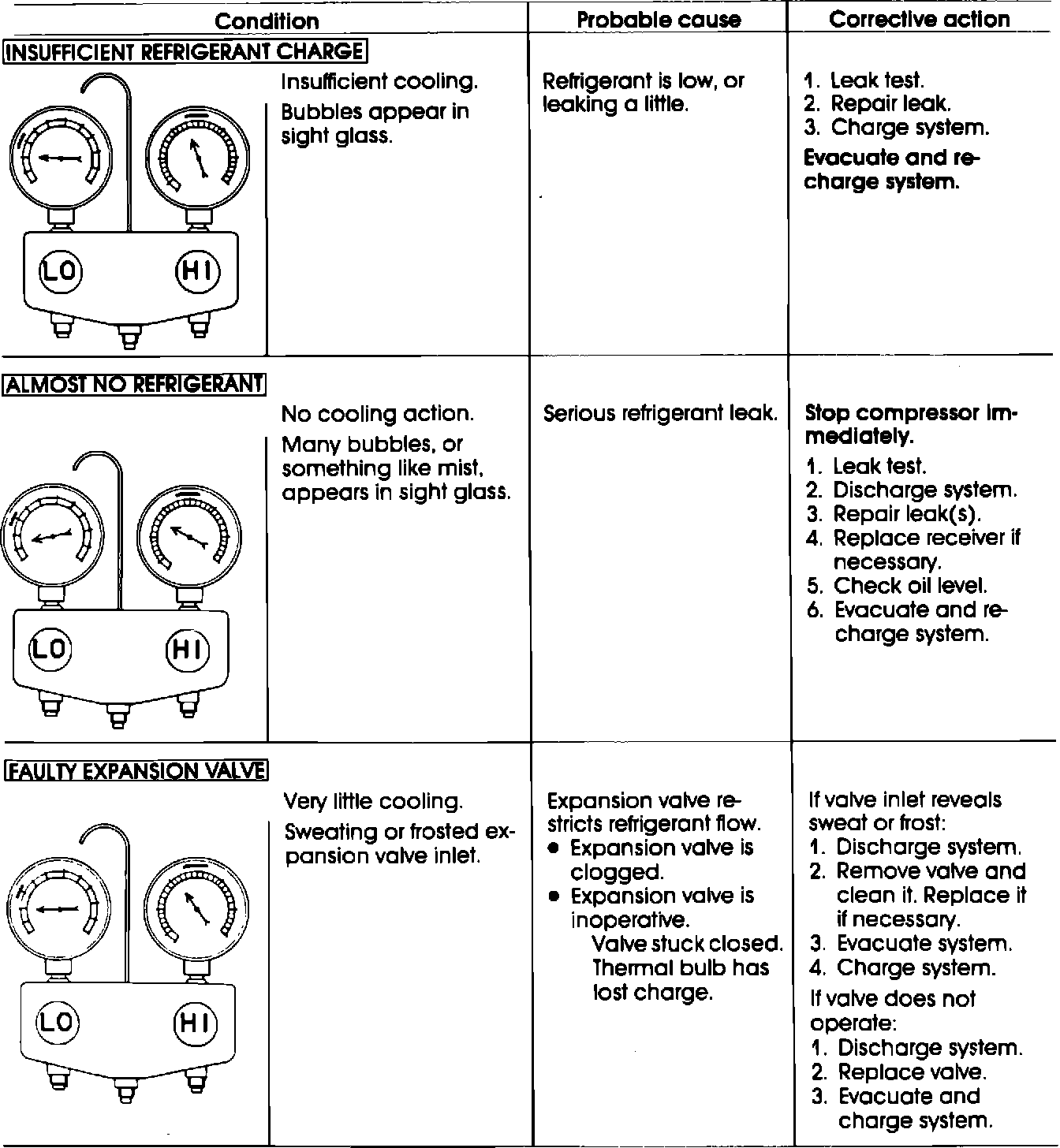

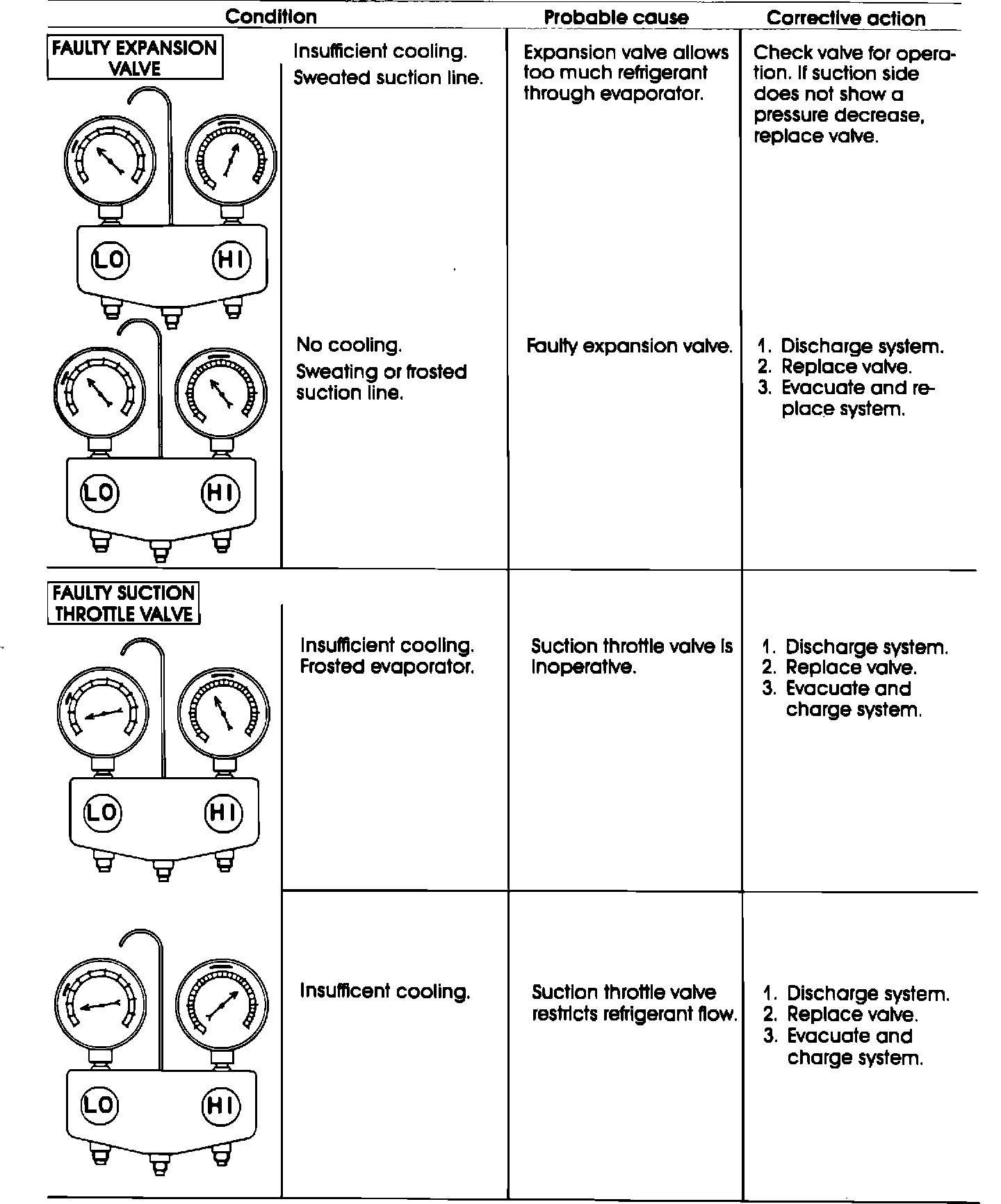

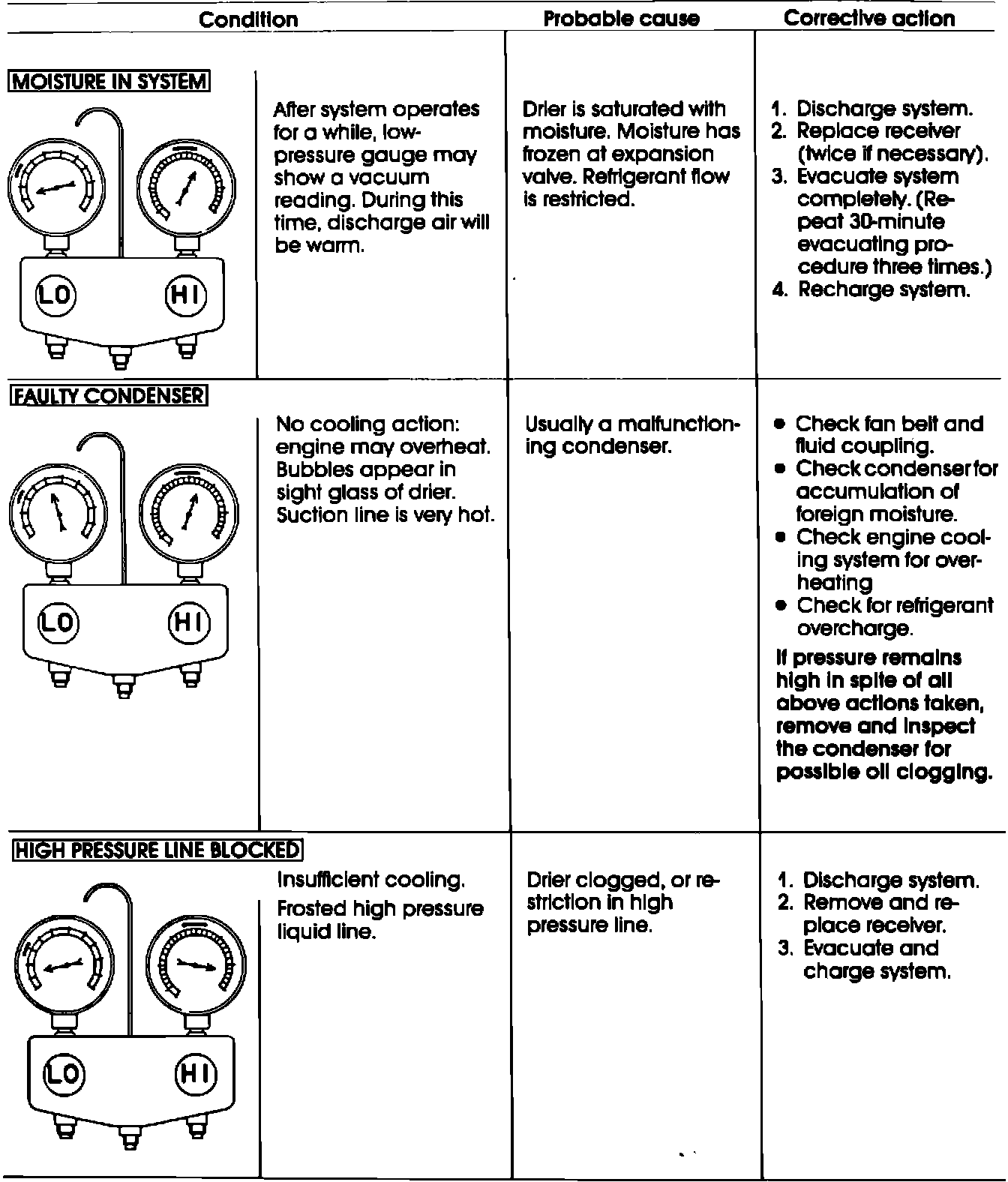

In the following table, the marked sector on each gauge scale indicates a range based on the assumption that the air conditioning system is in good order.
