A/T - KM 172 Valve Body O-Rings
85mitsubishi03SUBJECT: KM 172 AUTOMATIC TRANSAXLE VALVE BODY O-RINGS
NO. STB-85-21-005
DATE August, 1985
MODEL 1984-85 Cordia/Tredia
STB Revision
STB-85-21-005

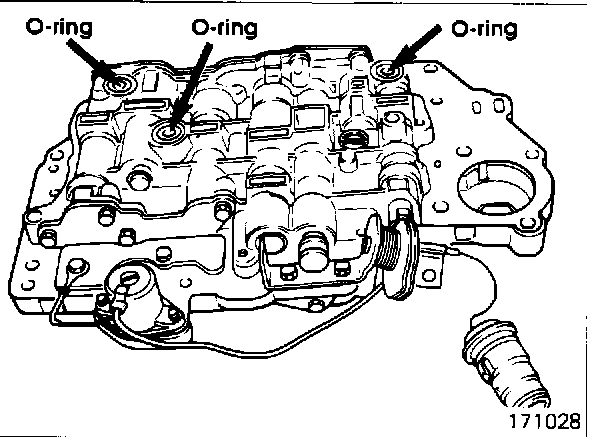

PURPOSE This Bulletin is issued to update the assembly instructions for the KM172 automatic transmission valve body on Page 21-85 of the 1984 Cordia/Tredia Service Manual and Page 21-84 of the 1985 Cordia/Tredia Service Manual. These Service Manuals show only one O-ring position on the top of the valve body; in the KM 172, three O-rings must be installed before the valve body is assembled to the case. The locations of the three O-rings.
FIGURE 2:
As reference to this bulletin, please mark-in the O-ring locations in the 1984 manual as shown in Figure 2, and write the STB number in the box on Page 21-84 of the 1985 Service Manual.
