Feedback Carburetor - Diagnosis Update
NO: 83-14-007DATE: December, 1983
MODEL: 1984 Cordia/Tredia
SUBJECT:
FEEDBACK CARBURETOR SYSTEM DIAGNOSIS
This bulletin updates the 1984 Cordia/Tredia Service Manual. Also enclosed with this bulletin is an up-to-date diagnosis chart which we recommend you attach permanently to your FBC Harness Connector, Special Tool # MD998408. As a reference to this bulletin, please place the orange labels at the tops of Pages 14-34 and 14-35 in your 1984 Cordia/Tredia Service Manual.
Update the 1984 Cordia/Tredia Service Manual as shown:

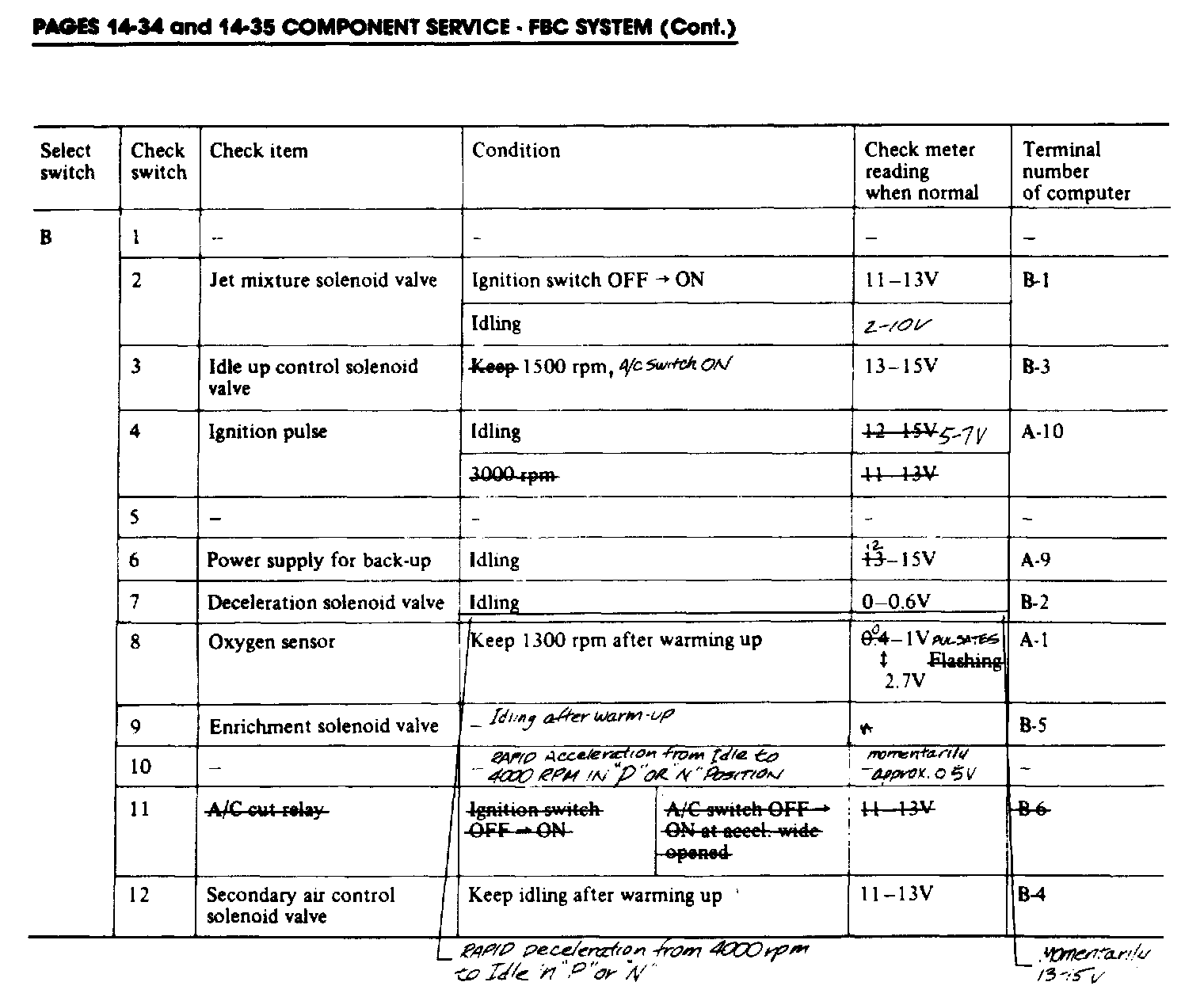

PAGE 14-34 COMPONENT SERVICE - FBC SYSTEM

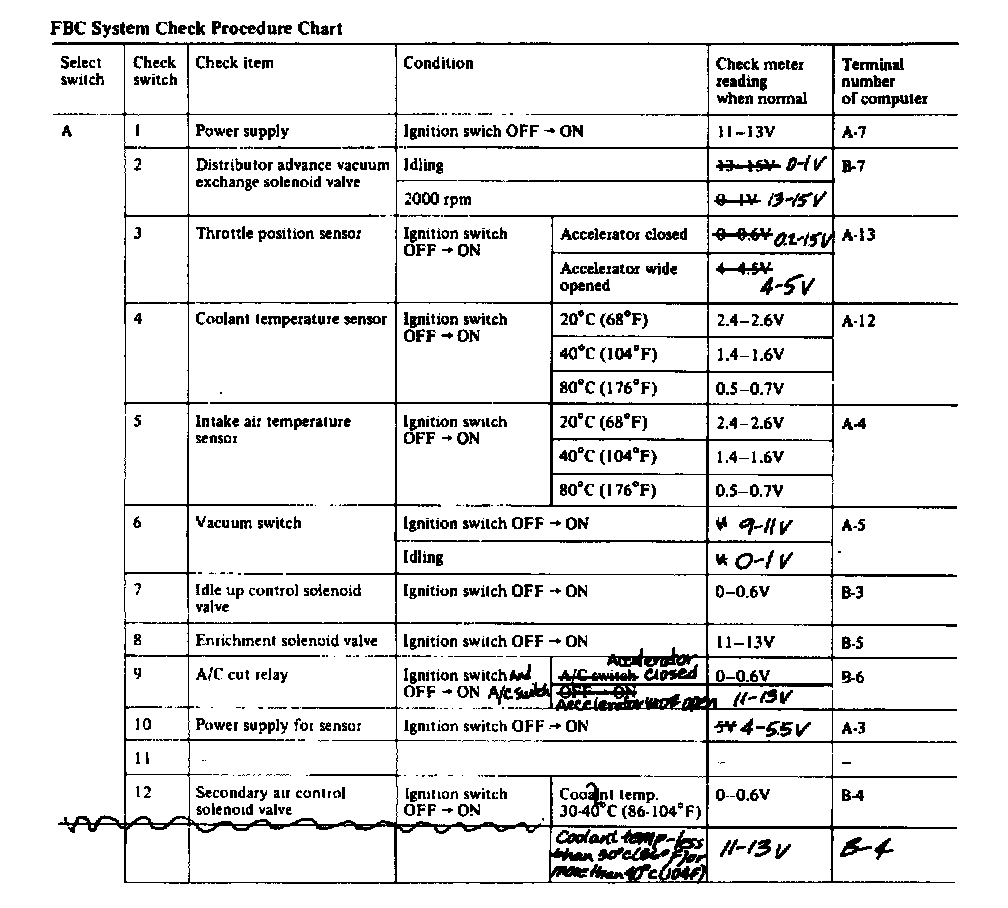

The FBC System Check Procedure Chart is changed as shown. Because these changes are extensive; we recommend crossing-out the entire chart. The labels on Pages 14-34 and 14-35 will direct the technician to this bulletin.
