Curb Idle Speed - Specification Update
83mitsubishi01SUBJECT:
CORDIA/TREDIA IDLE SPEED UPDATE
NO. STB-83-00-009
DATE December, 1983
MODEL
1984 Cordia/Tredia
This bulletin provides information to update the 1984 Cordia/Tredia Service Manual.
As a reference to this bulletin, please place the orange labels at the tops of Pages 0-10 and 14-3.
PAGE 0-10 MAINTENANCE SERVICE
The curb idle speed specification tolerance in the Tune-Up Specification table, previously +/- 50 RPM, has been changed to +/- 100 RPM.

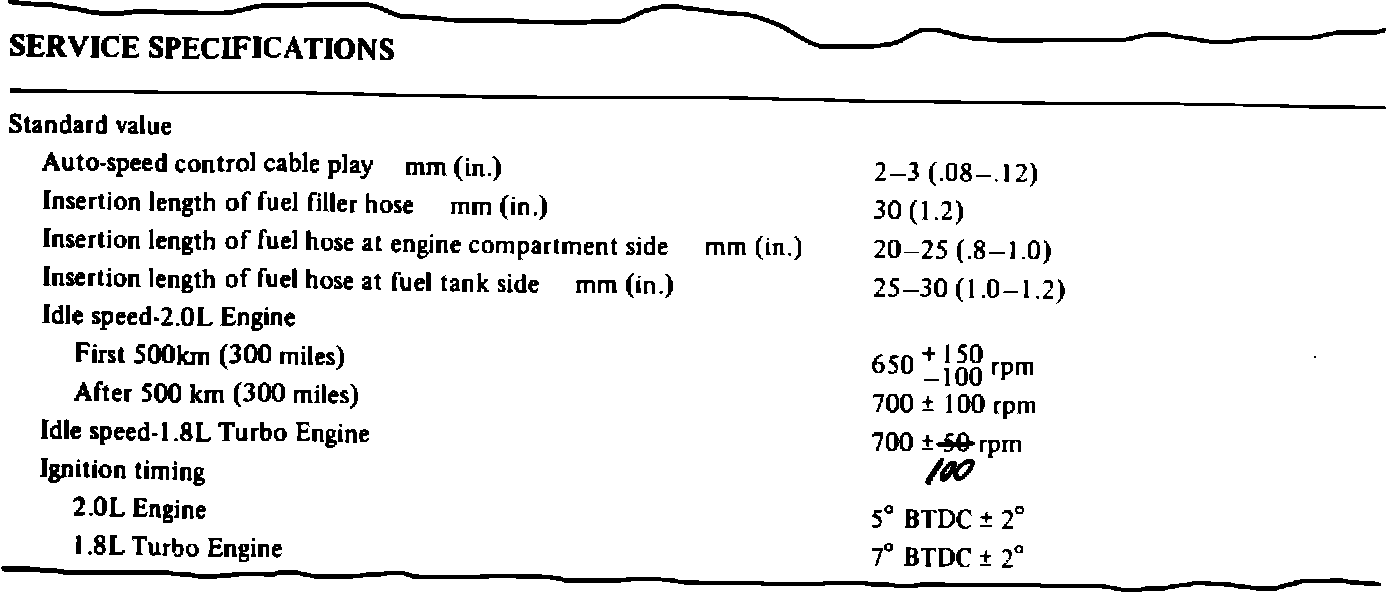

PAGE 14-3 SPECIFICATIONS
The idle speed tolerance in the Service Specifications table has been changed to +/- 100 RPM.
