ECI System - Voltmeter Check Procedure
>>
1984 Cordia/Tredia Turbo Voltmeter Check
1984 Cordia/Tredia Turbo Voltmeter Check
1984 CORDIA/TREDIA
TURBO

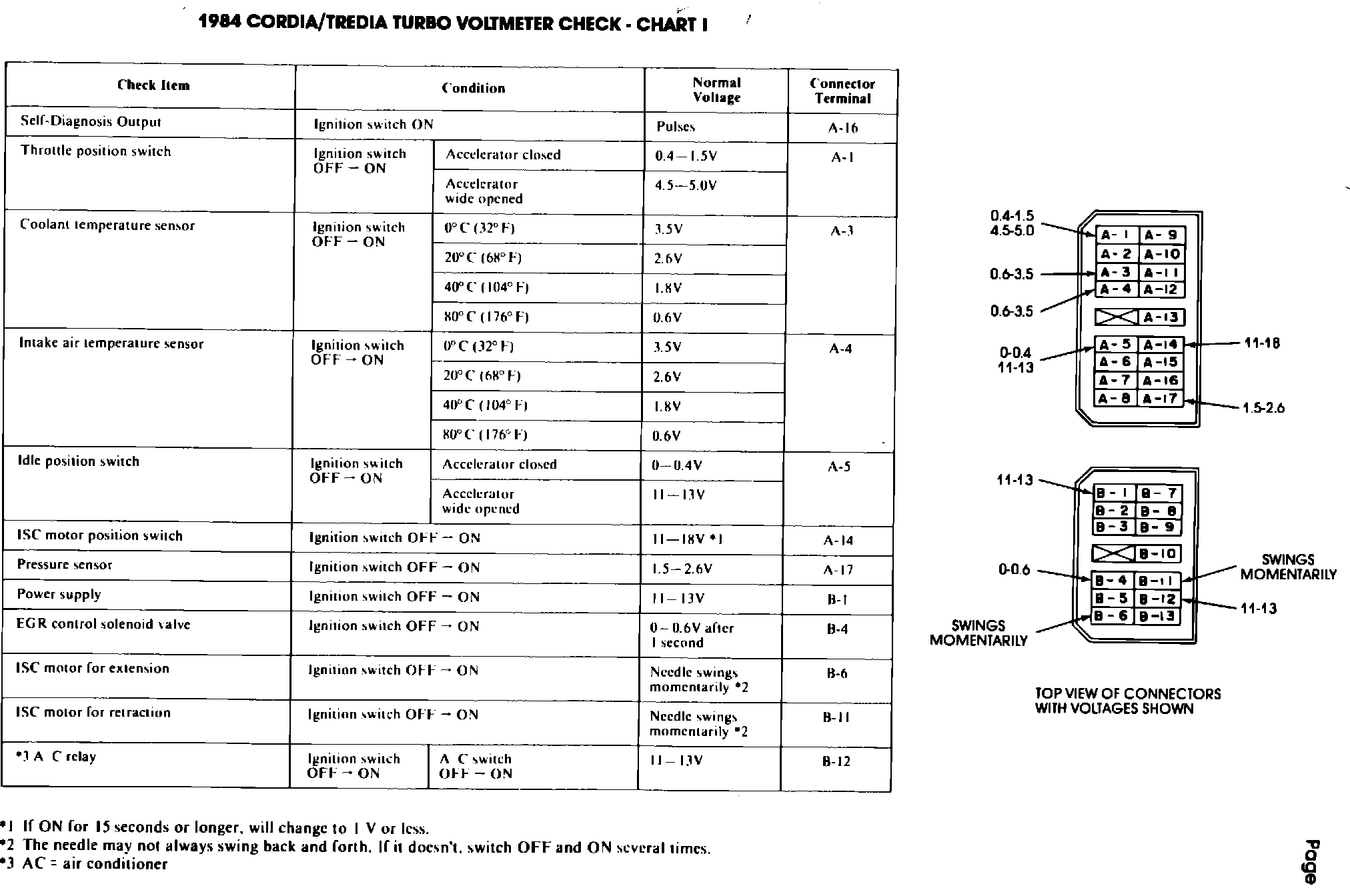

VOLTMETER CHECK - CHART I
1984 CORDIA/TREDIA
TURBO
VOLTMETER CHECK-CHART II
