Mitsubishi
>>
1984
>>
Tredia L4-2.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
Windows

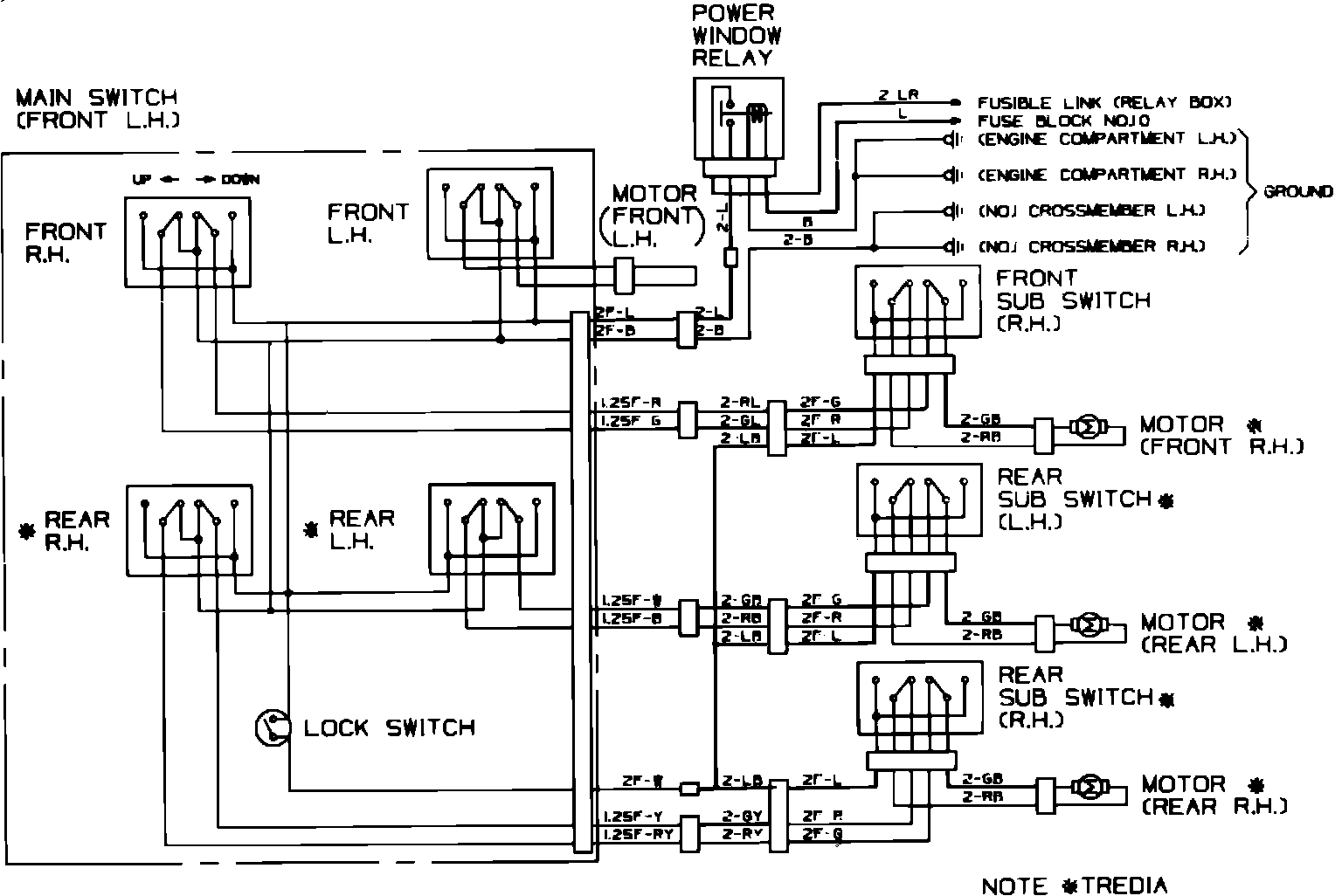

Fig. 13 Power Window Wiring Circuit.:
