1983 Starion Eci Voltmeter Check

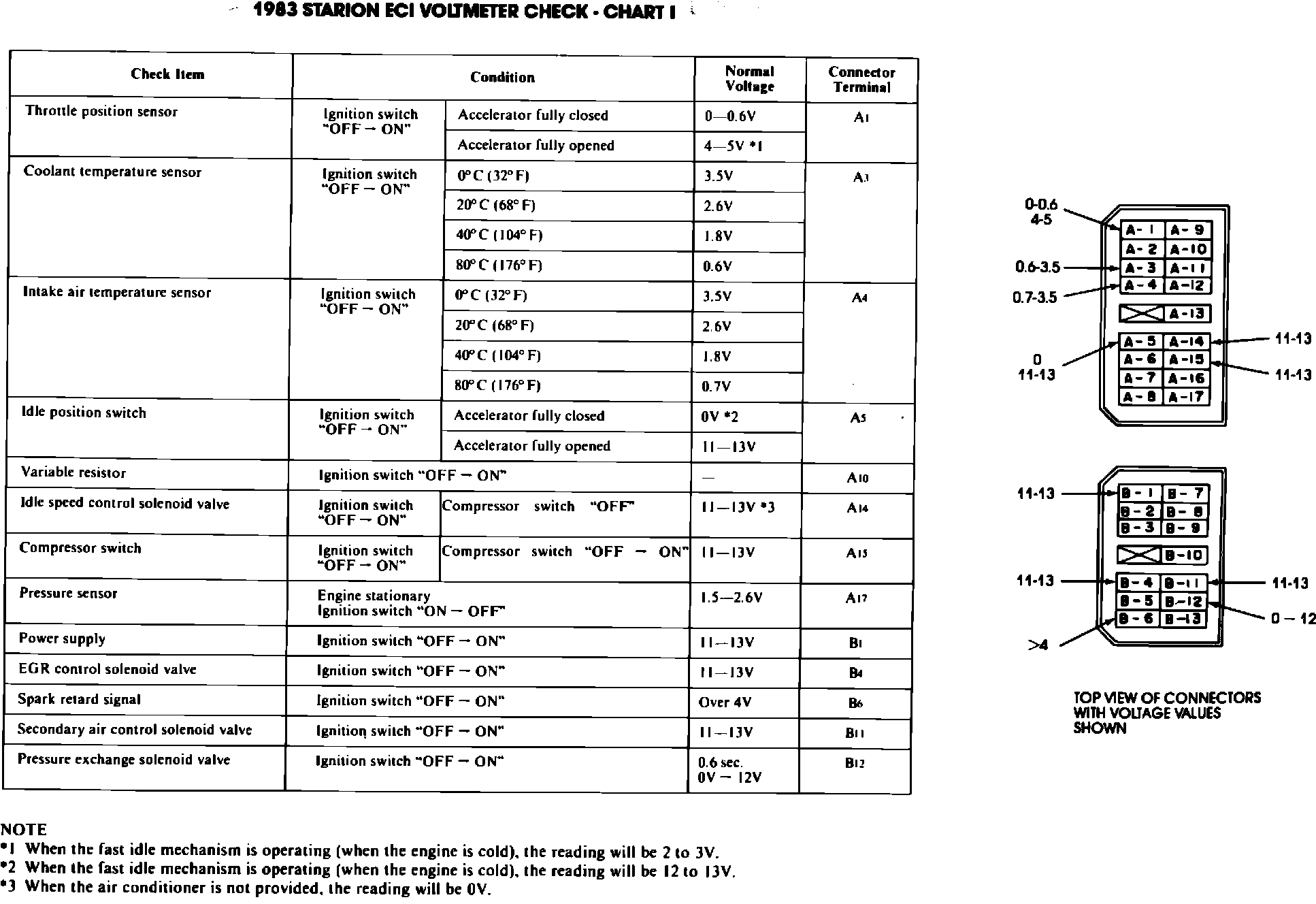

1983 STARION ECI VOLTMETER CHECK - CHART I

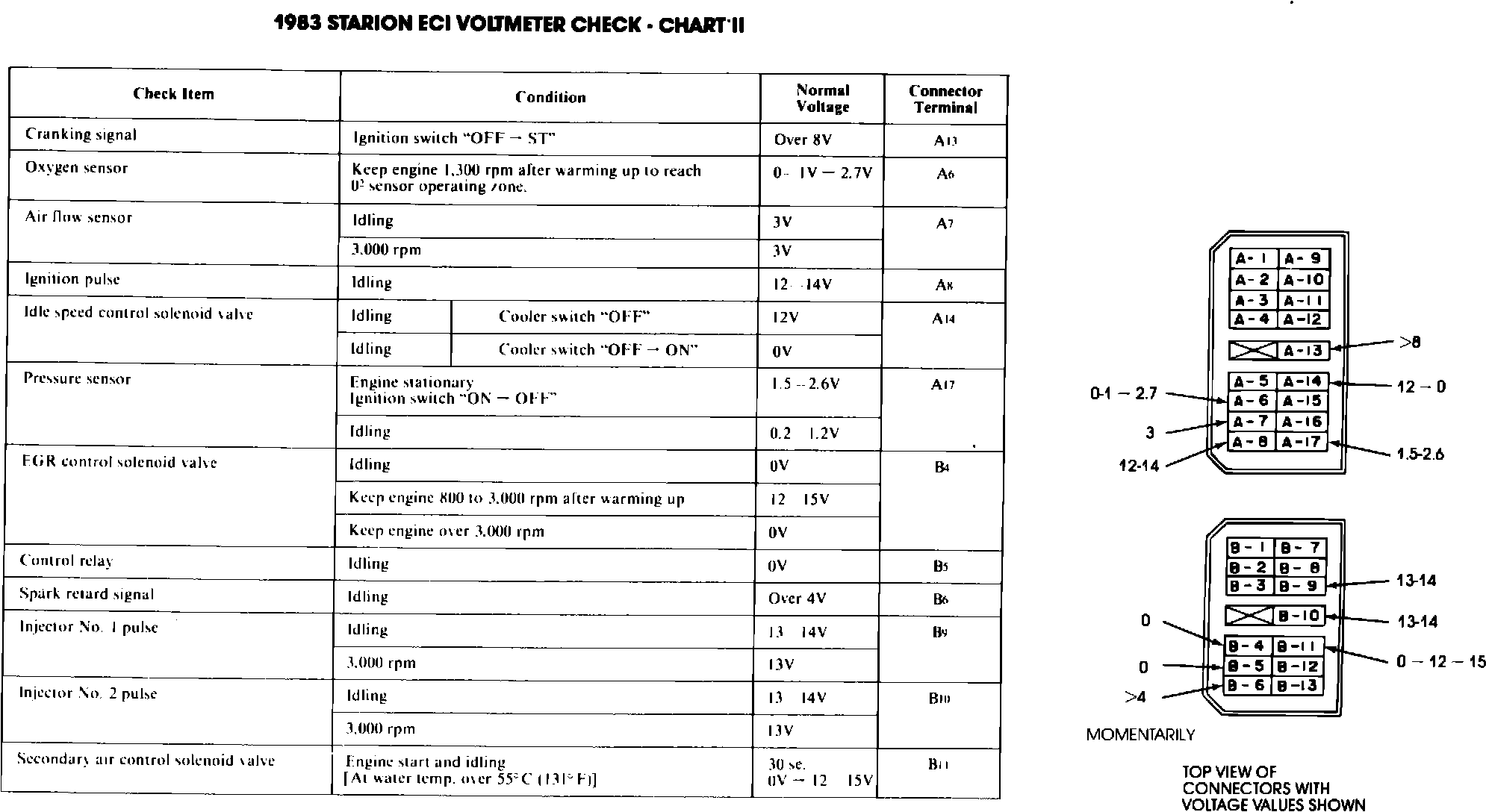

1983 STARION ECI VOLTMETER CHECK - CHART II
