Mitsubishi
>>
1984
>>
Cordia L4-1795cc 1.8L SOHC Turbo
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
W/Turbocharged Engine
W/Turbocharged Engine

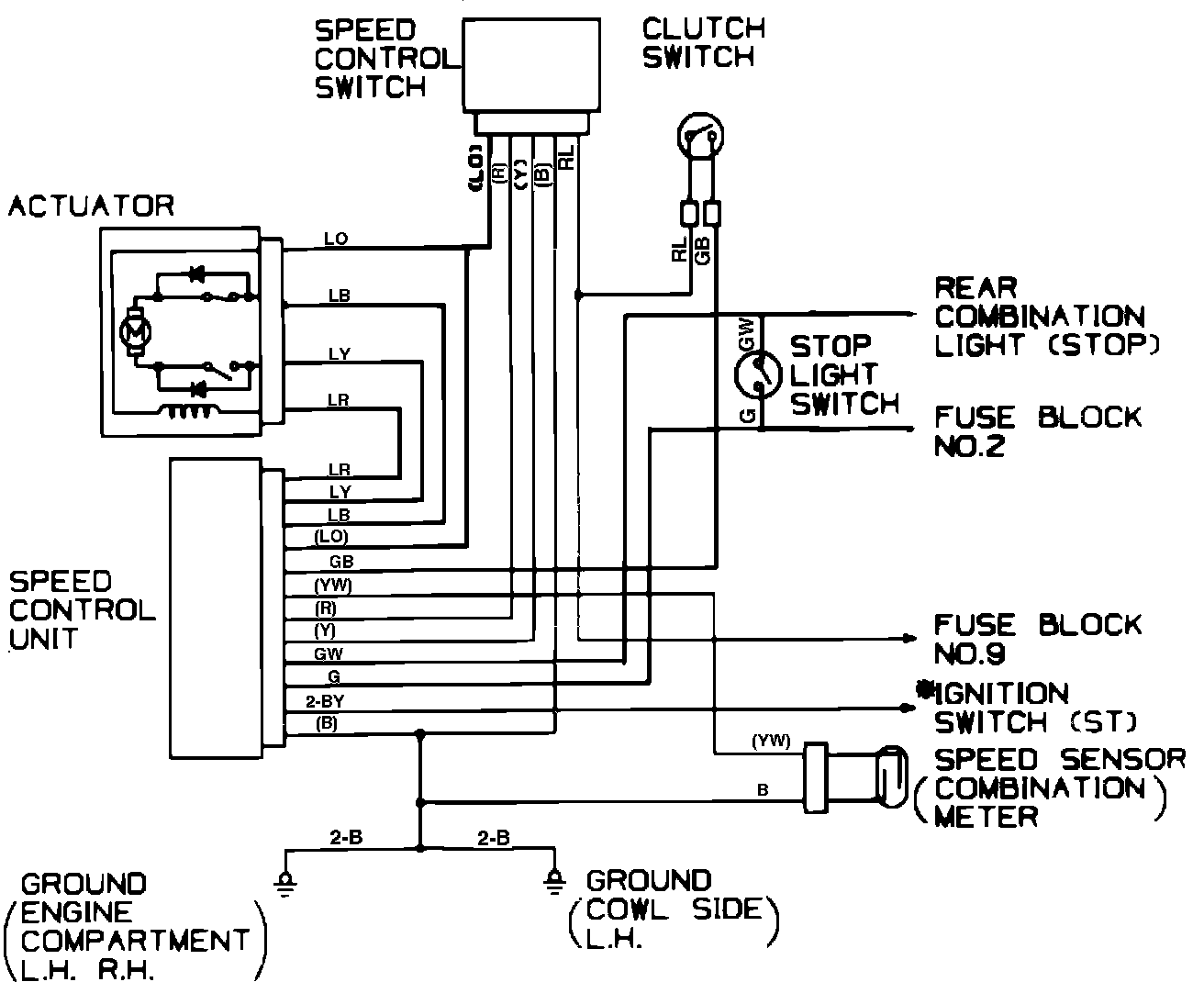

Fig. 18 Speed Control Wiring Circuit. W/Turbocharged Engine:
