Home >> Mitsubishi >> 1983 >> Starion L4-2555cc 2.6L SOHC Turbo >> Repair and Diagnosis >> Wiper and Washer Systems >> Diagrams

Wiper and Washer Systems: Diagrams

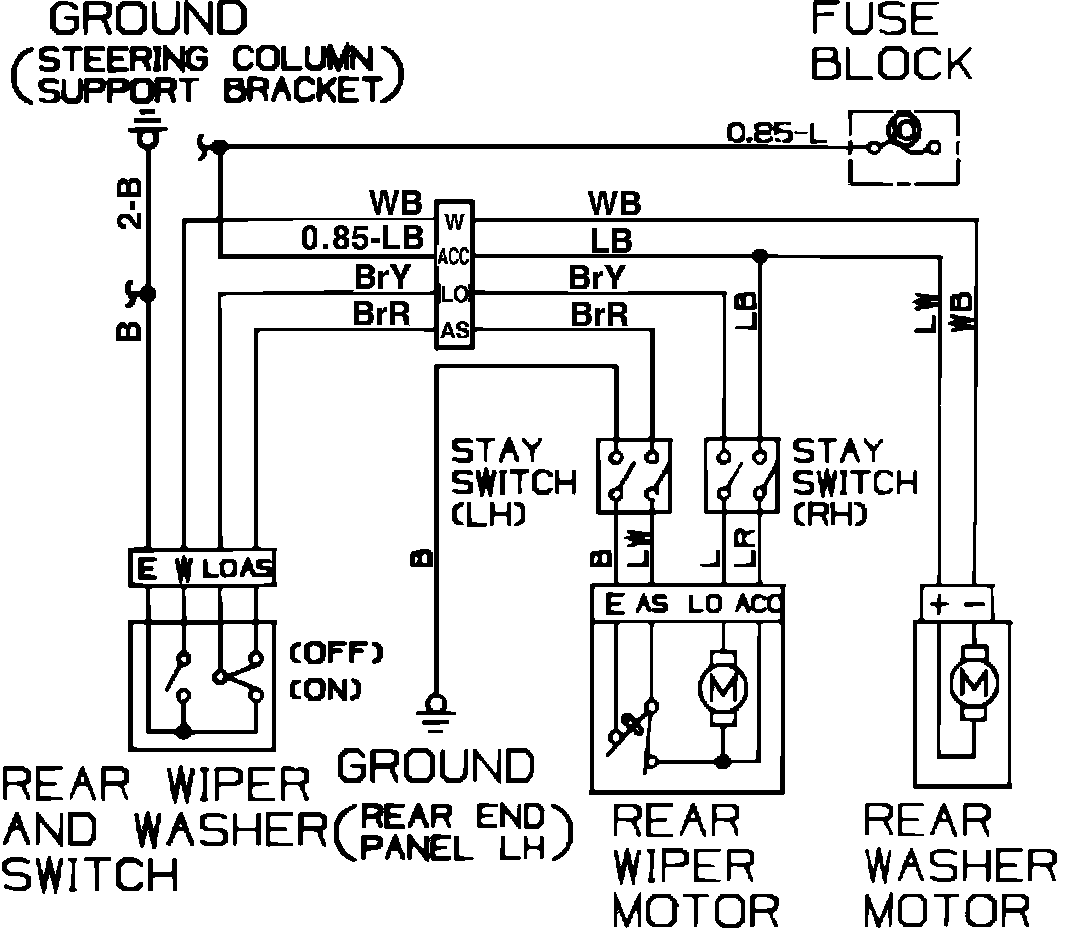

Fig. 39 Rear Wiper/Washer Wiring Circuit.:
