Home >> Mitsubishi >> 1983 >> Starion L4-2555cc 2.6L SOHC Turbo >> Repair and Diagnosis >> Windows and Glass >> Windows >> Diagrams

Windows: Diagrams

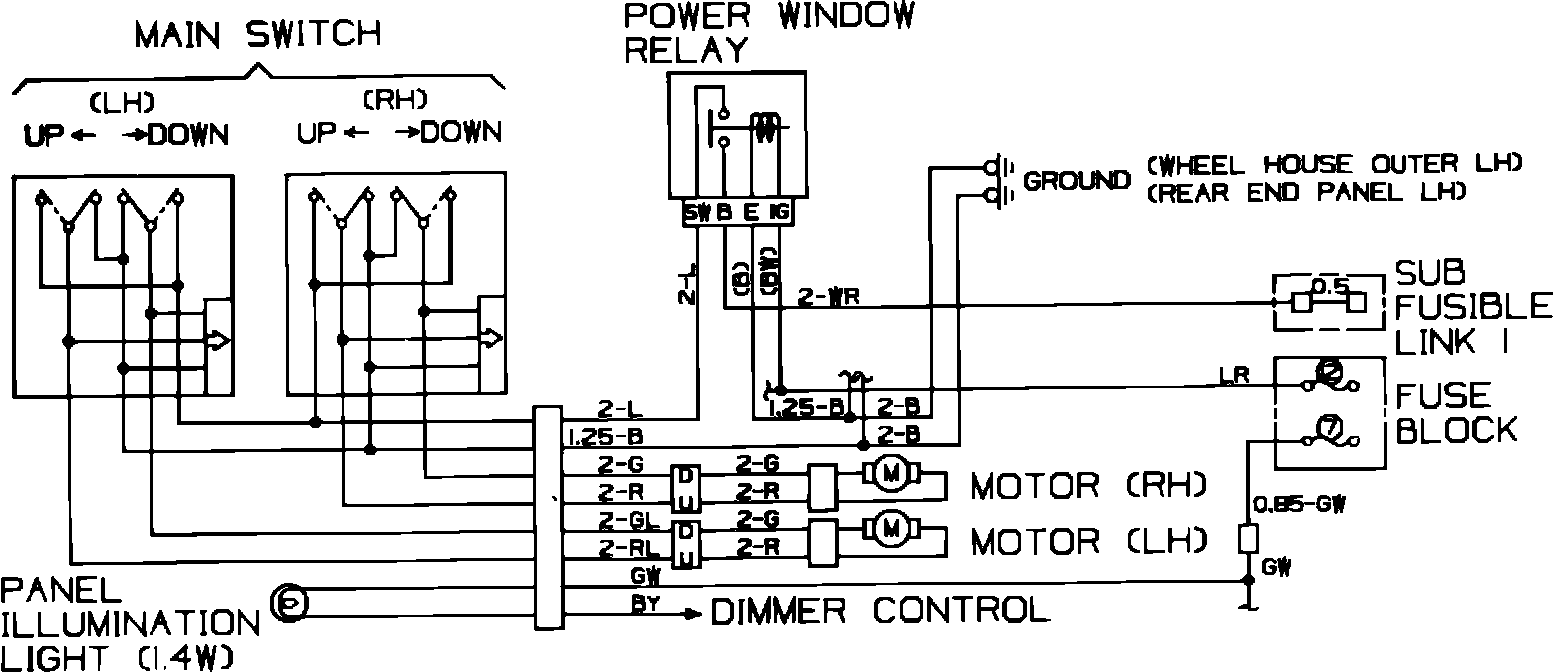

Fig. 33 Power Windows Wiring Circuit.:
