Page 21-9

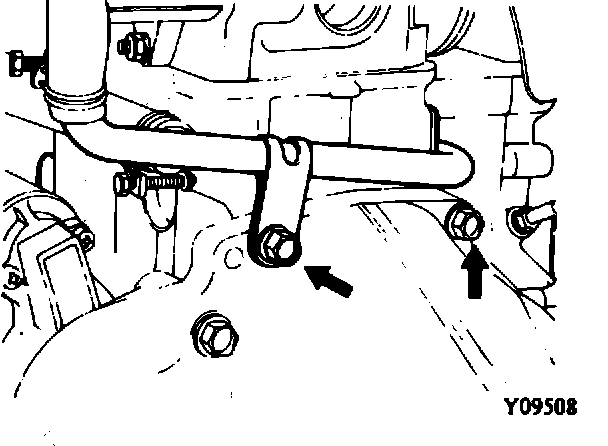

7. Remove the two upper transmission mounting bolts from the bell housing. (Y09508)

8. Remove the remaining transmission mounting bolts.

9. Support the transmission with a jack.

10. Remove the engine support bracket, insulator assembly and ground cable.

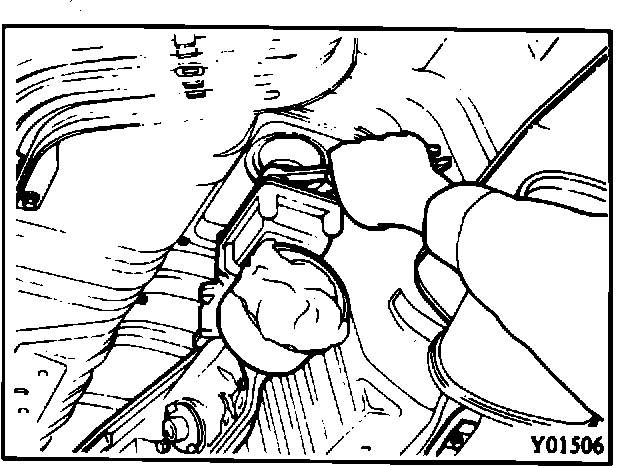

11. Remove the gearshift lever assembly while the lever is in the neutral position as shown in the illustration.

NOTE:

Place a piece of cloth on the rear cylinder head to prevent damage to the firewall.

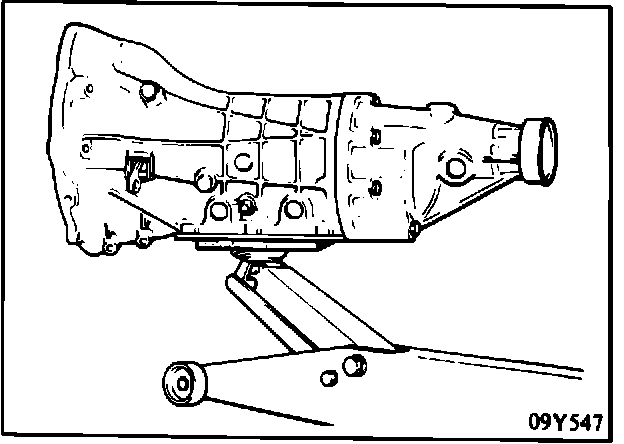

12. Remove the transmission.



DISASSEMBLY

Extension Housing

1. Remove the shift lever assembly.

2. Remove the transmission under cover.

3. Remove the back-up light switch and ball.

4. Remove the speedometer driven gear.

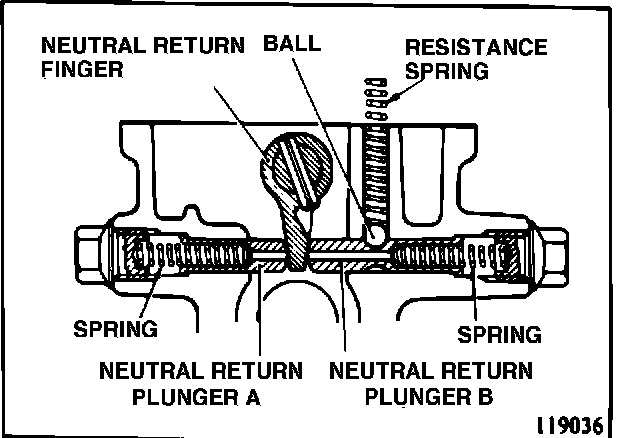

5. Remove the resistance spring and ball.

6. Remove the two plugs, springs, and neutral return plungers A and B.
21-9
