Page 21-8

REMOVAL

1. Drain the transmission oil.

2. Remove the propeller shaft.

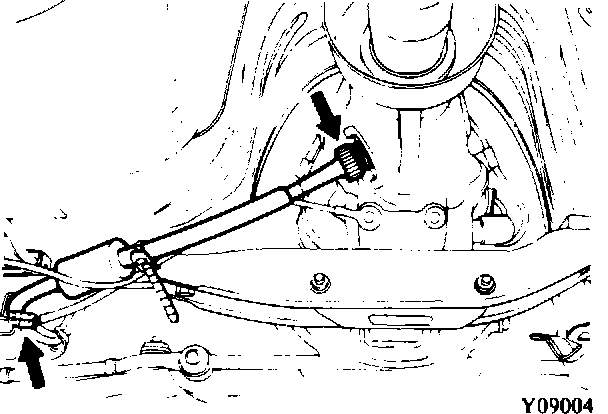

3. Disconnect the speedometer cable and the back-up light switch harness. (Y09004)

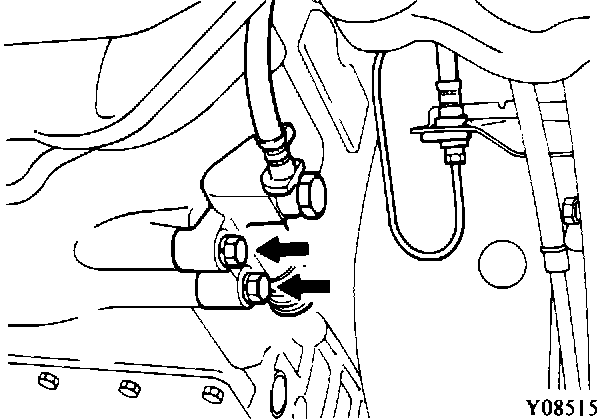

4. Remove the clutch release cylinder.

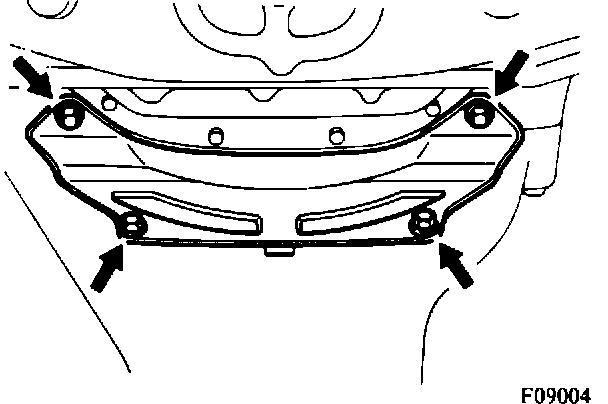

5. Remove the bell housing cover.

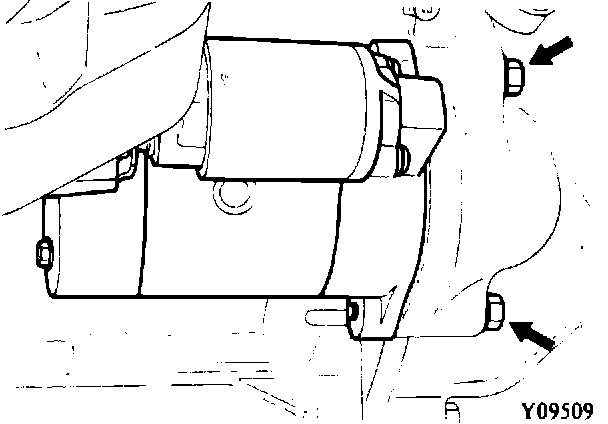

6. Remove the starting motor.
21-8
