Brakes - Proportioning Valve Precaution Update

87mitsubishi05

SUBJECT:
STARION PROPORTIONING VALVE IDENTIFICATION MARK - SERVICE MANUAL UPDATE
NO. STB-87-05-005

DATE December, 1987

MODEL 1983-1984 Starion
PURPOSE

This bulletin is issued to update the brake proportioning valve caution information on page 6-17 in the 1983 and 1984 Starion Service Manuals. The text and illustration in this bulletin supersede those in the subject Service Manuals. As reference to this bulletin, please attach the red-lettered stickers to page 5-17 of the 1983 and 1984 Starion Service Manuals.

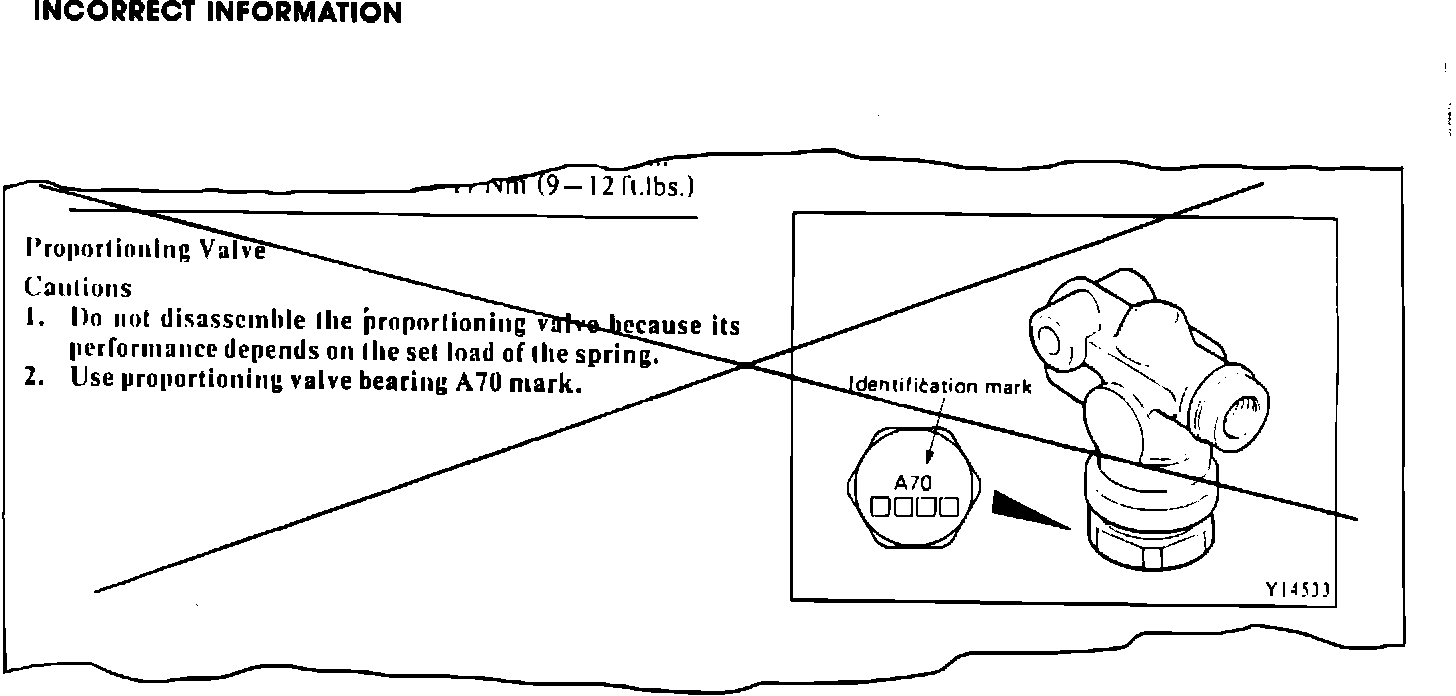

CORRECTION - PAGE 5-17

Cross out the incorrect text and illustration as shown below. The correct information is shown on page 2 of this bulletin.
