Accelerator Cable - Adjusting Nut Torque Specification
84mitsubishi01SUBJECT:
STARION ACCELERATOR CABLE ADJUSTING NUT TORQUE SPECIFICATION
NO. STB-84-14-003
DATE February, 1984
MODEL 1983 & 1984 Starion
This bulletin is issued to add a torque specification for the accelerator cable adjusting nut in 1983 and 1984 Starion service manuals. Please place an orange label at the top of page 14-4 of the 1983 Starion Service Manual and page 14-3 of the 1984 Starion Service Manual as reference to this bulletin.
1984 STARION SERVICE MANUAL PAGE 14-3 SPECIFICATIONS, AND 1983 STARION SERVICE MANUAL PAGE 14-4 SPECIFICATIONS

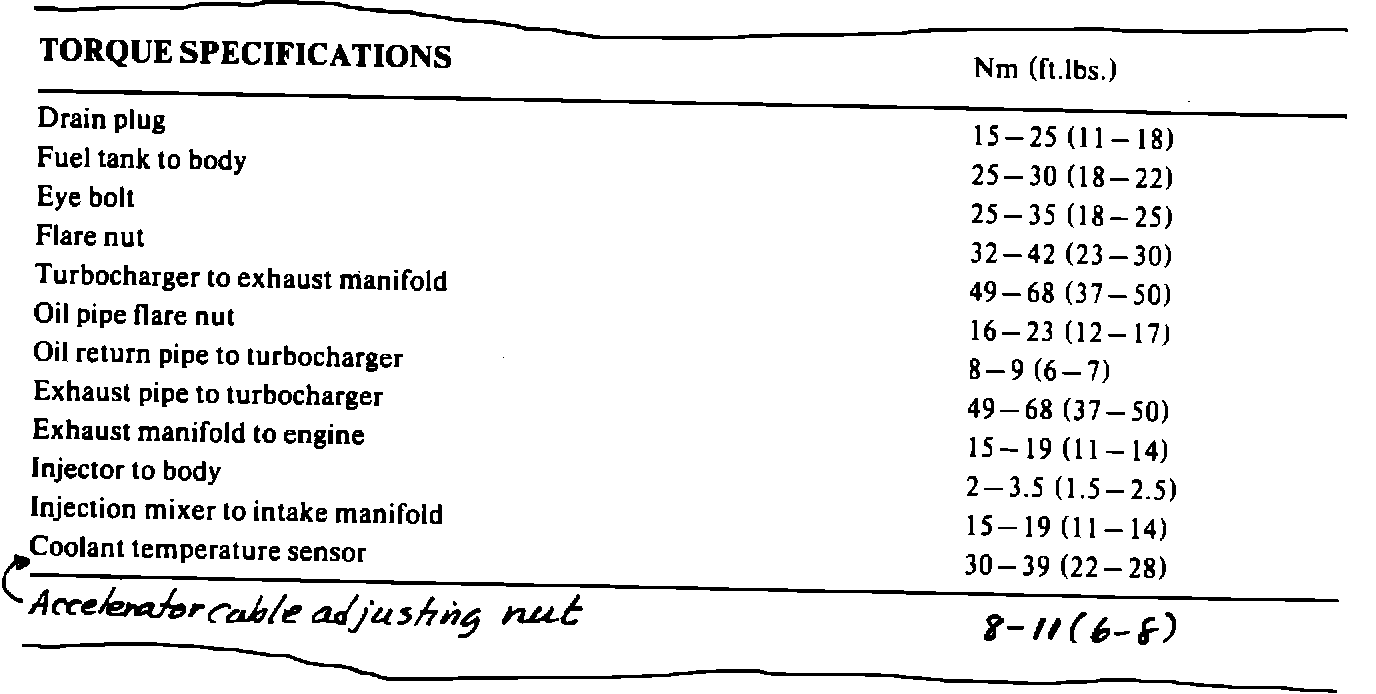

To the TORQUE SPECIFICATIONS tables on these pages, add the torque specification for the accelerator cable adjusting nut as shown below.
