Ignition Control Module: Locations

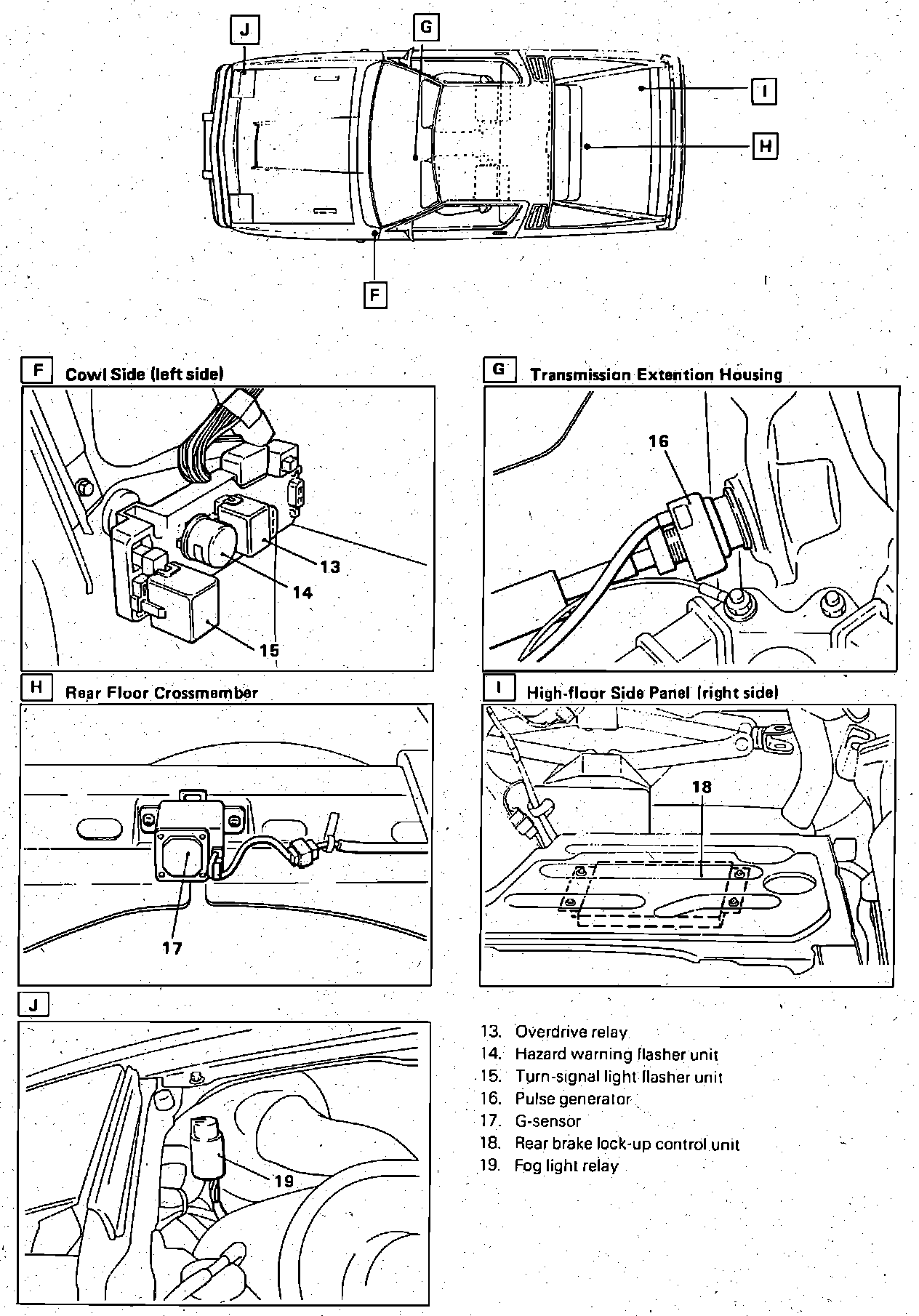

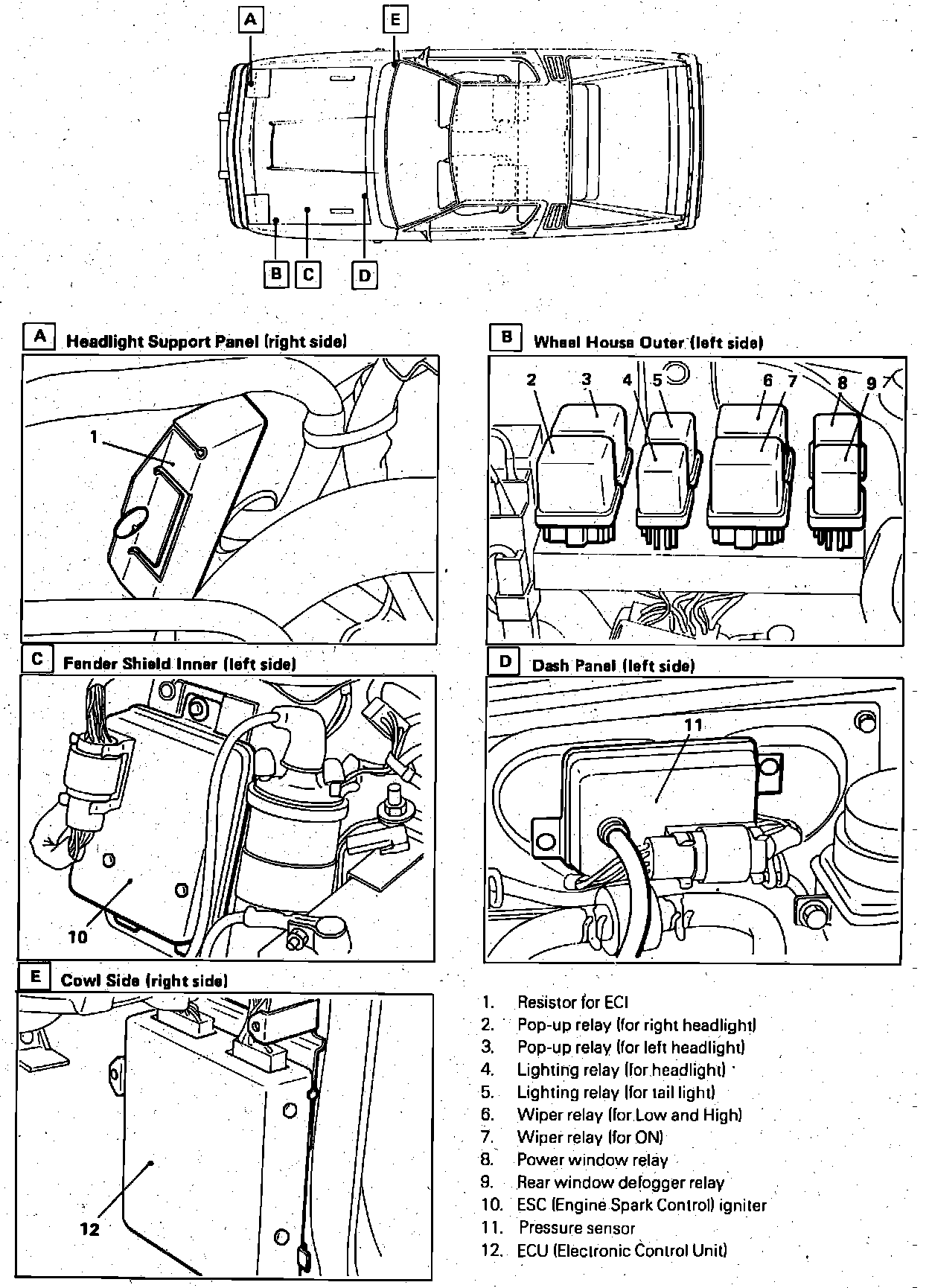

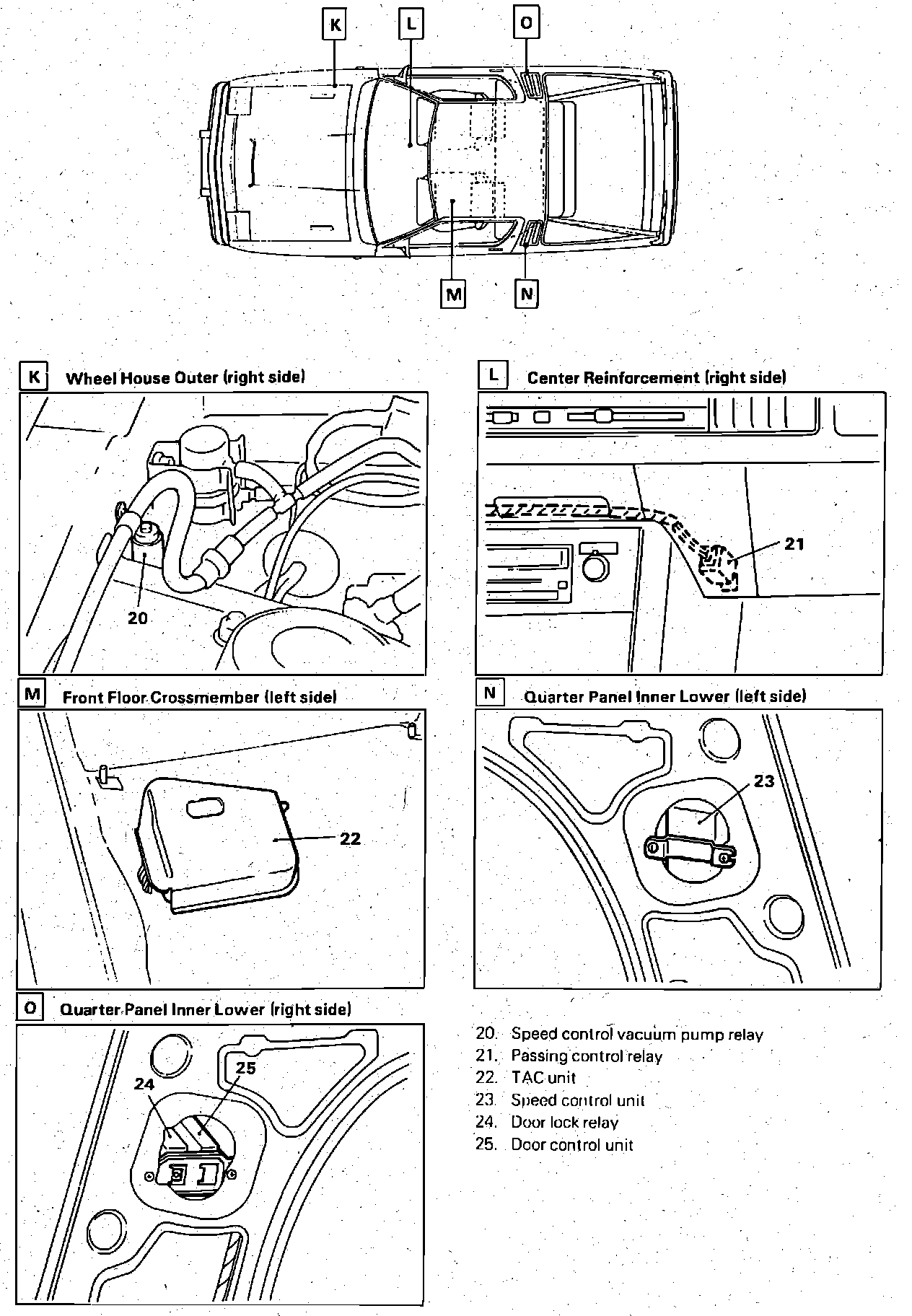

Body Relay Locations (Part 1 of 3).:




Body Relay Locations (Part 1 of 3).:




Body Relay Locations (Part 1 of 3).:




LH Side Engine Compartment

Applicable to: 1983-84 Starion
