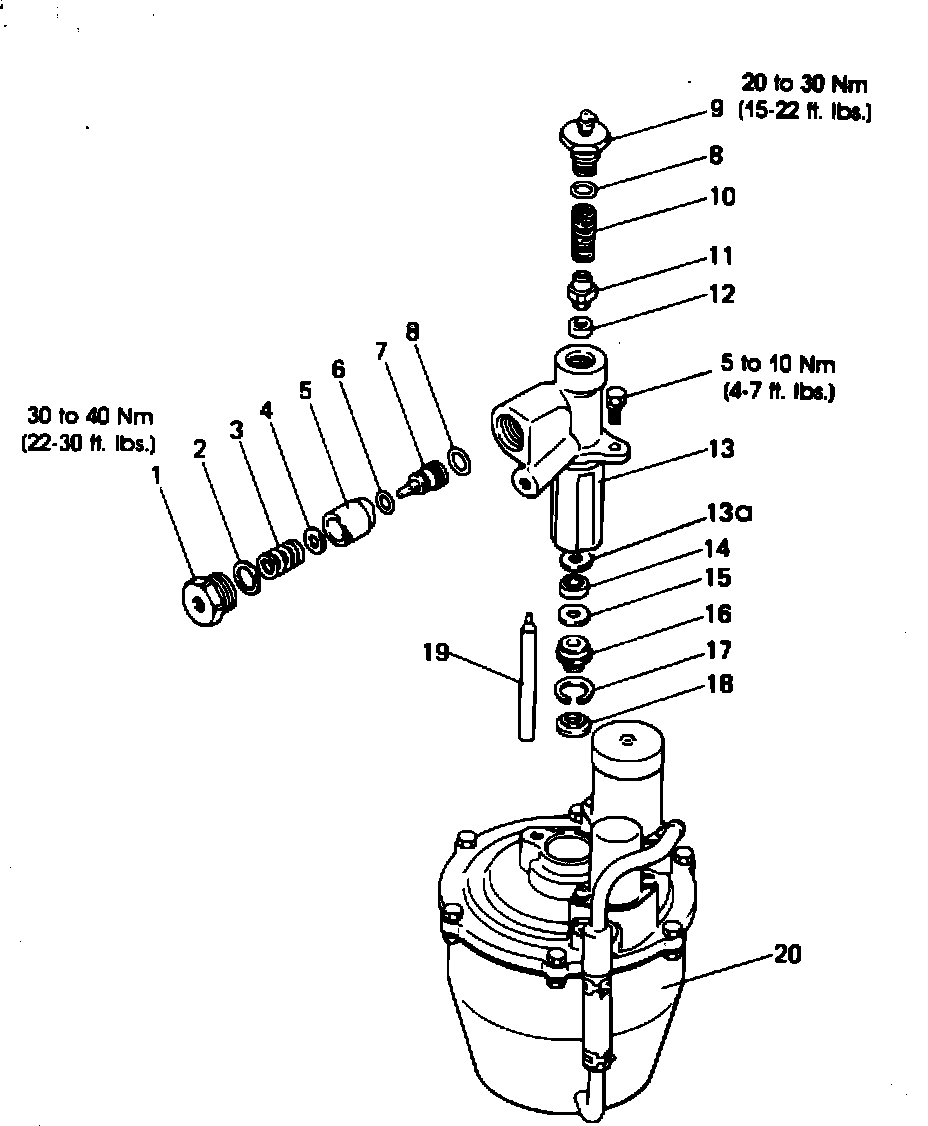

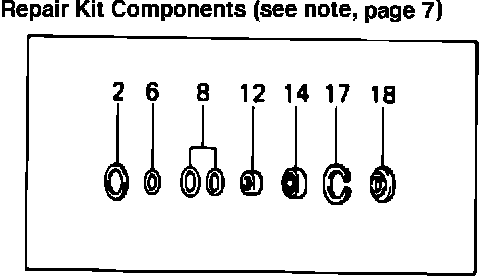

Component Identification

(1) Valve cap
(2) Gasket
(3) Choke valve spring
(4) Spring seat
(5) Bushing
(6) O-ring
(7) Choke valve piston spring
(8) O-ring
(9) Bleeder cap
(10) Check valve piston spring
(11) Check valve piston
(12) Check valve seal
(13) Hydraulic cylinder
(13a) Clear plastic washer
(early units only)
(14) Cup seal
(15) Back-up ring
(16) Cup retainer
(17) Snap ring
(18) Dust seal
(19) Plunger
(20) Vacuum cylinder assembly
Detailed information concerning the operation and testing of the rear brake lockup control system can be found in the Starion service manual in Group 5, Pages 5-31 thru 5-48.
