Antilock Brakes / Traction Control Systems: Diagrams

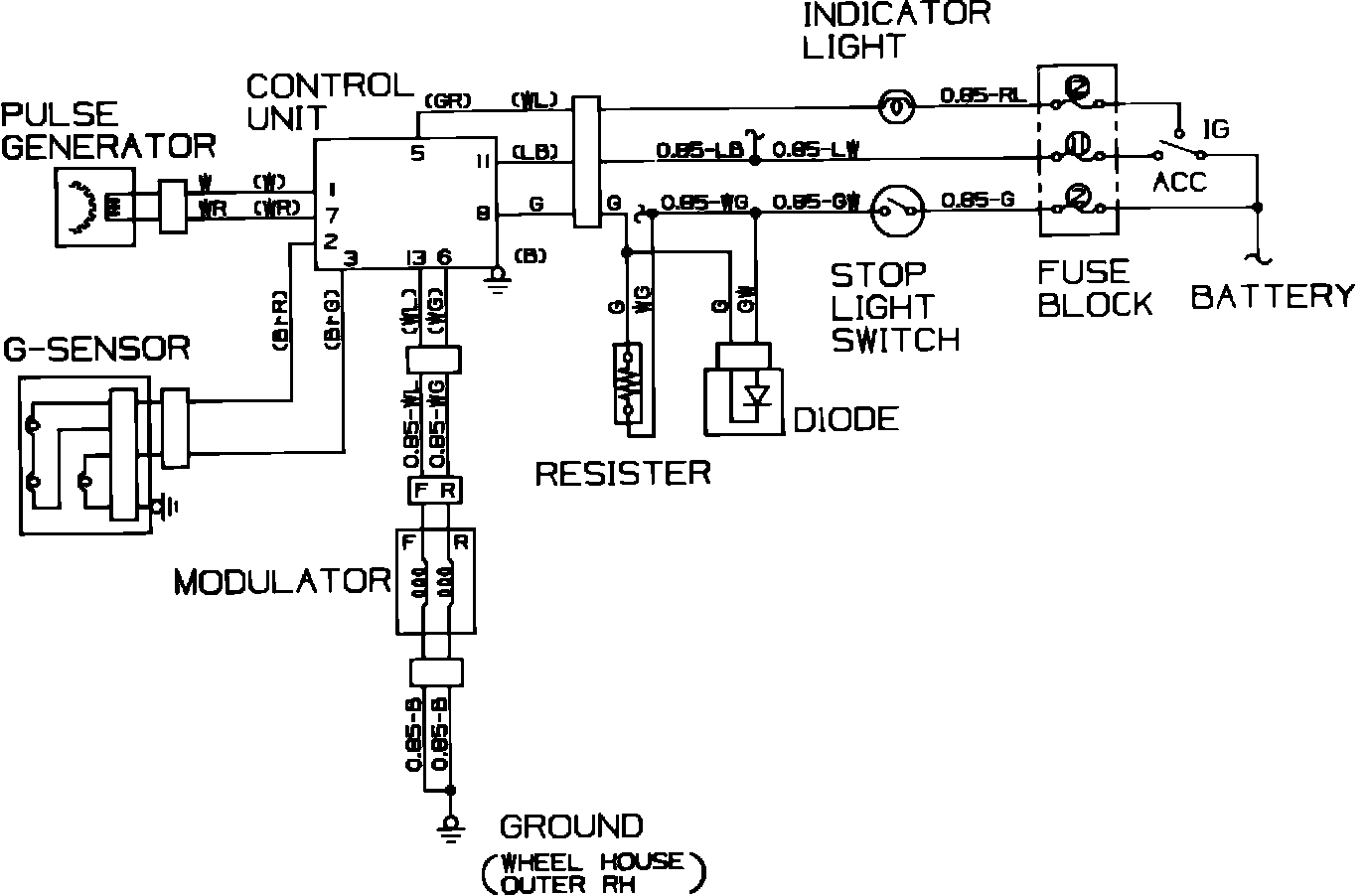

Fig. 12 Anti-lock Brake System Wiring Diagram. Starion:

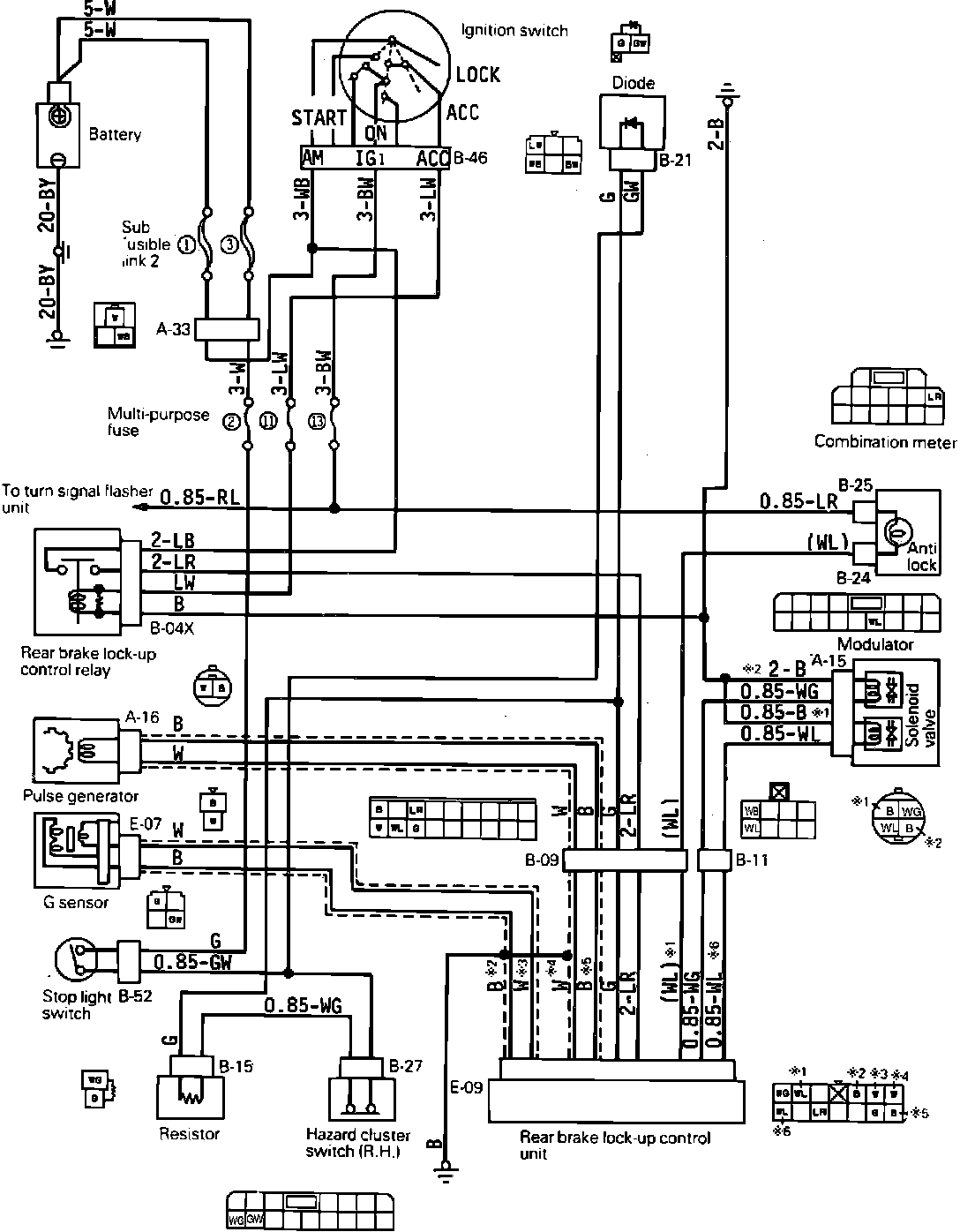

Fig. 37 Rear Brake Lock-Up Control System Wiring Circuit.:
