Suspension - Spring/Shock Absorber Specifications
83mitsubishi01SUBJECT:
SUSPENSION MODIFICATIONS (FRONT)
NO. STB-83-02-002
DATE April 1983
MODEL 1983 Cordia/Tredia
The 1983 Cordia/Tredia Service Manual has been updated:
GROUP 2 PAGE 2 - SPECIFICATIONS

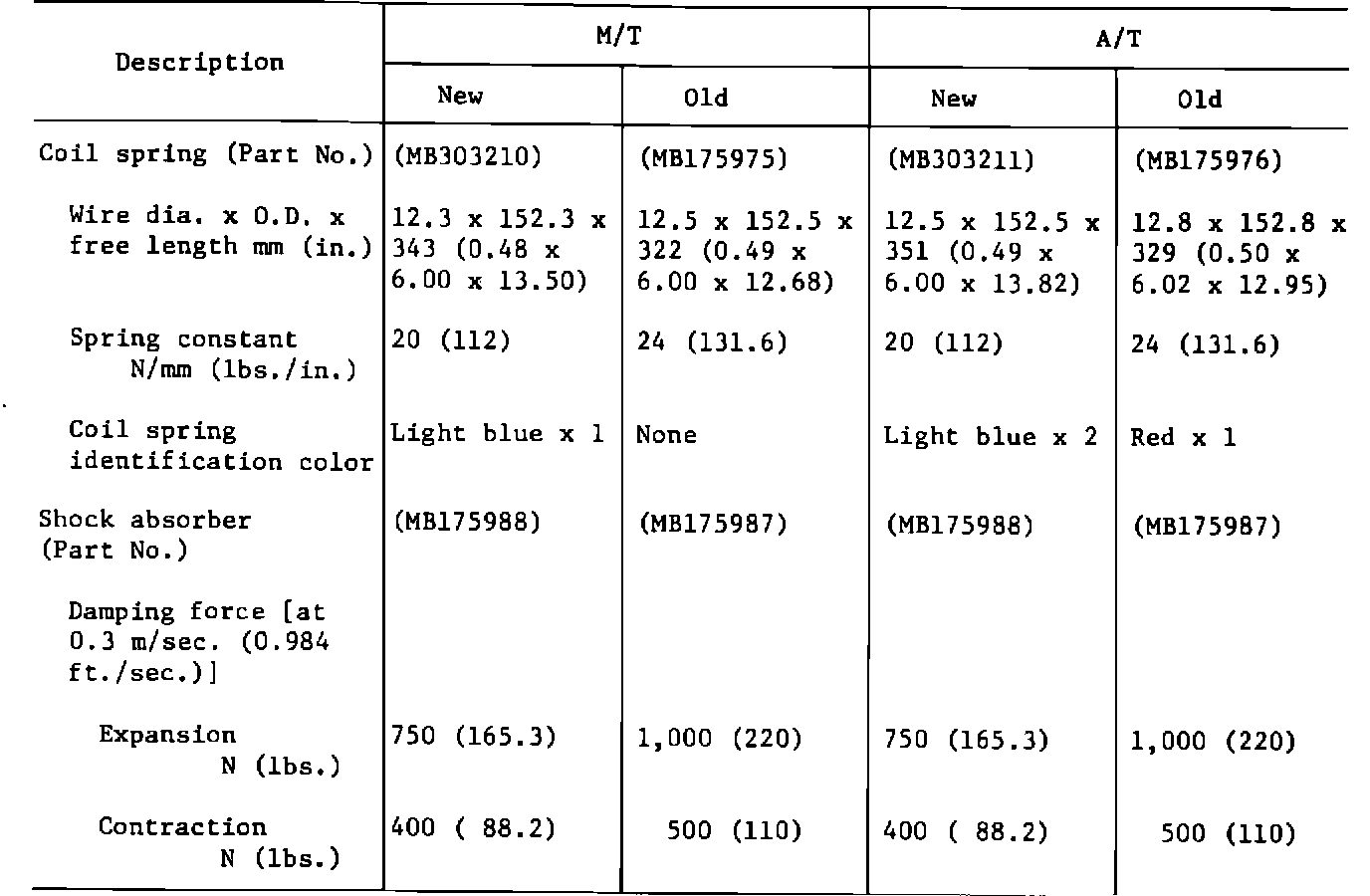

The specifications for the front springs and shock absorbers have been changed with October 25, 1982 production.
FRONT SUSPENSION
Page 2 - 2 : Apply this label on top of the page.
Inter- Vehicles produced Vehicles produced
changeability after Oct 25th 1982 before Oct. 25th 1982
New Parts Can be used Can be used*
Old Parts Cannot be used Can be used
^ Springs must be replaced n sets of 4
^ Shock absorbers must be replaced in pairs on one axle.
