Front Bumper - Service Manual Supplement
83mitsubishi03SUBJECT:
CORDIA/TREDIA FRONT BUMPER
NO. STB-83-23-001
DATE February 1983
MODEL Cordia/Tredia

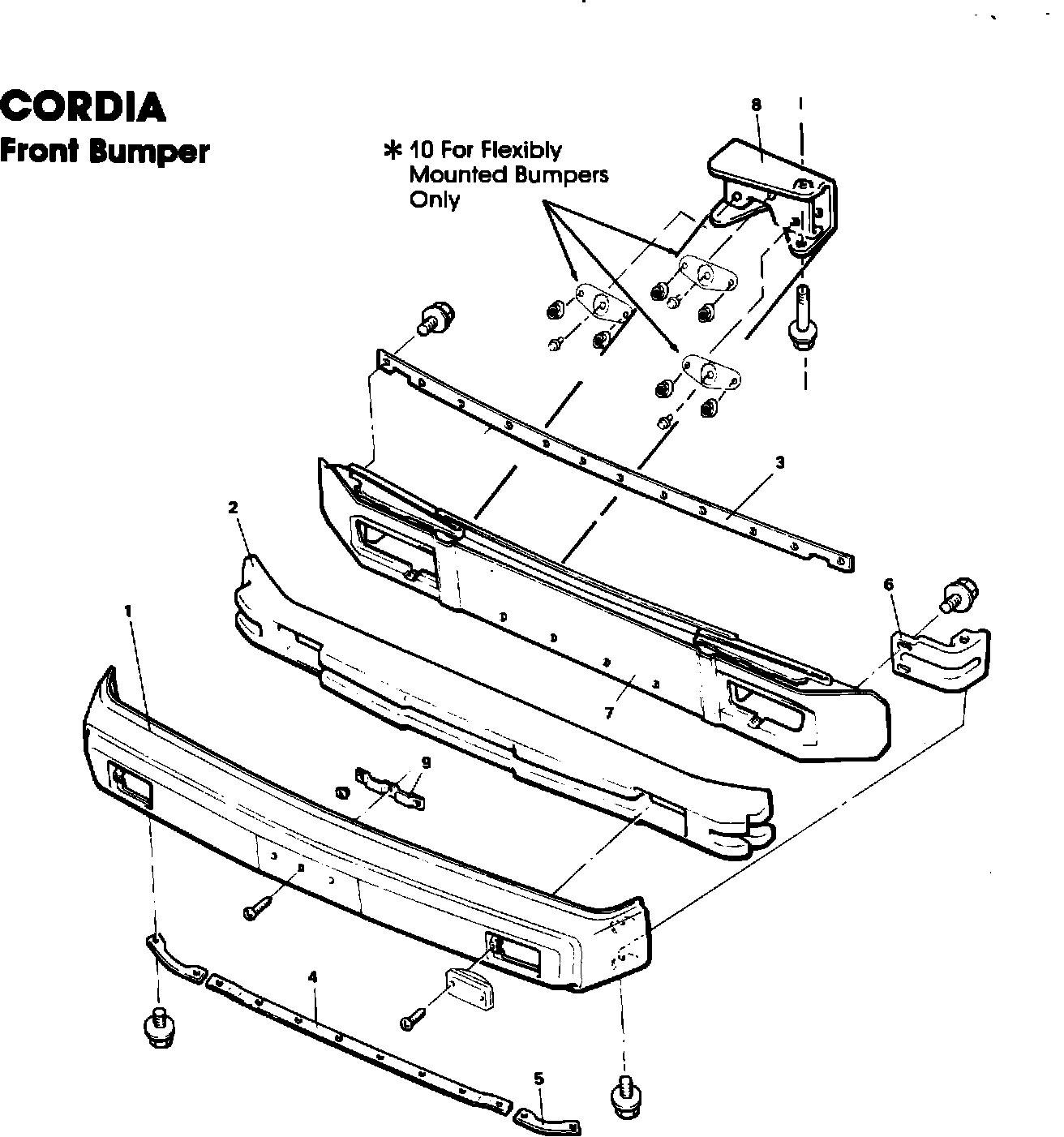

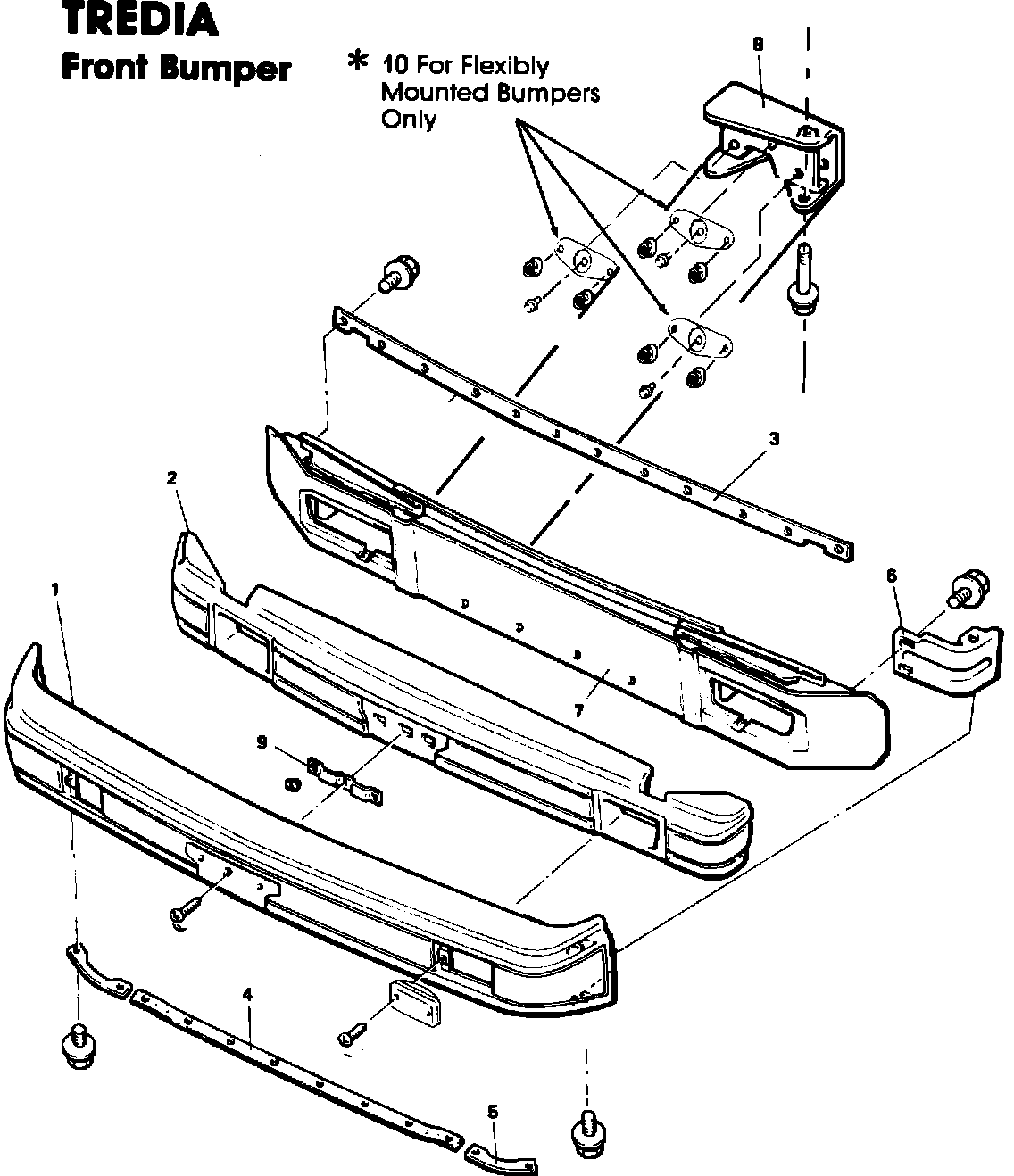

The following information is issued to supplement the Body and Sheet Metal Section of the 1983 Cordia/Tredia Service Manual for front bumpers.
BACKGROUND INFORMATION
All automatic transaxle equipped Cordia/Tredias and manual transaxle equipped Cordia/Tredias manufactured since February 1, 1983 have a flexibly mounted front bumper. The bumper appears to be "loose," however, when the engine is idling, the bumper actually serves as a dynamic vibration absorber to counteract engine movement.

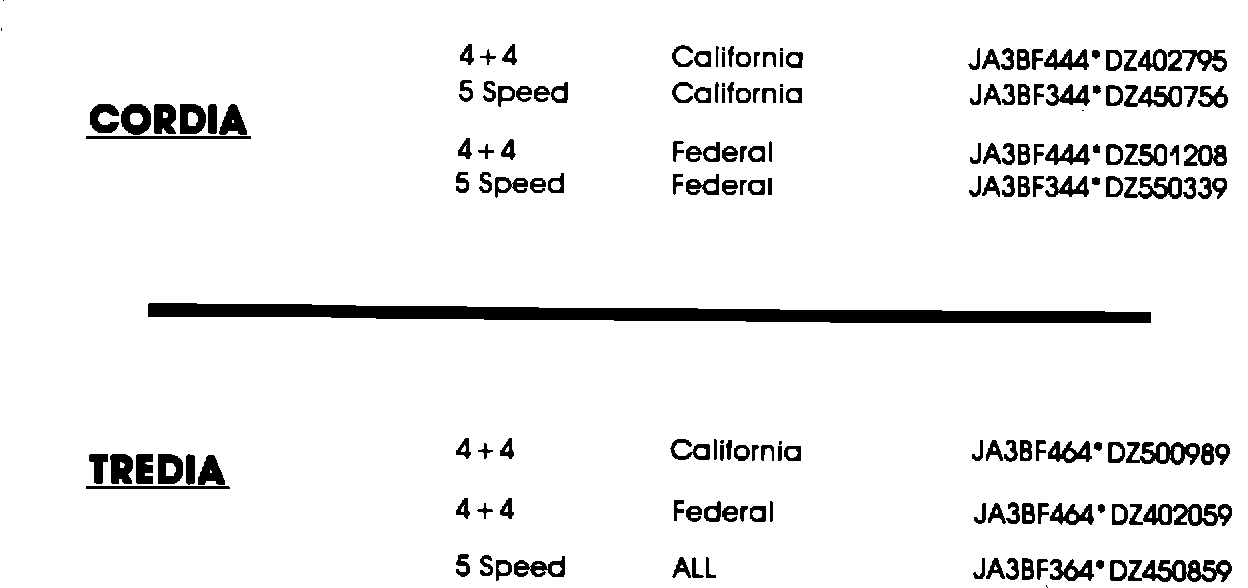

Manual transaxle equipped Cordia/Tredias beginning with the following Vehicle Identification Numbers have flexibly mounted bumpers.
Apply the orange stickers supplied with this Service Technical Bulletin to the upper right hand corner of pages 23-17 and 23-19. The stickers contain referral information to this bulletin.
* Manual transaxle equipped Cordias manufactured since February 1, 1983 beginning with the following Vehicle Identification Numbers have flexibly mounted bumpers.
4 + 4 Federal JA3BF444*DZ402795
4 + 4 California JA3BF444*DZ501208
5 Speed Federal JA3BF344*DZ450756
5 Speed California JA3BF344*DZ550339
* Manual transaxle equipped Tredias manufactured since February 1, 1983 beginning with the following Vehicle Identification Numbers have flexibly mounted bumpers.
4 + 4 Federal JA3BF464*DZ402059
4 + 4 California JA3BF464*DZ500989
5 Speed ALL JA3BF364*DZ450859
