KM162 5-SPD M/T

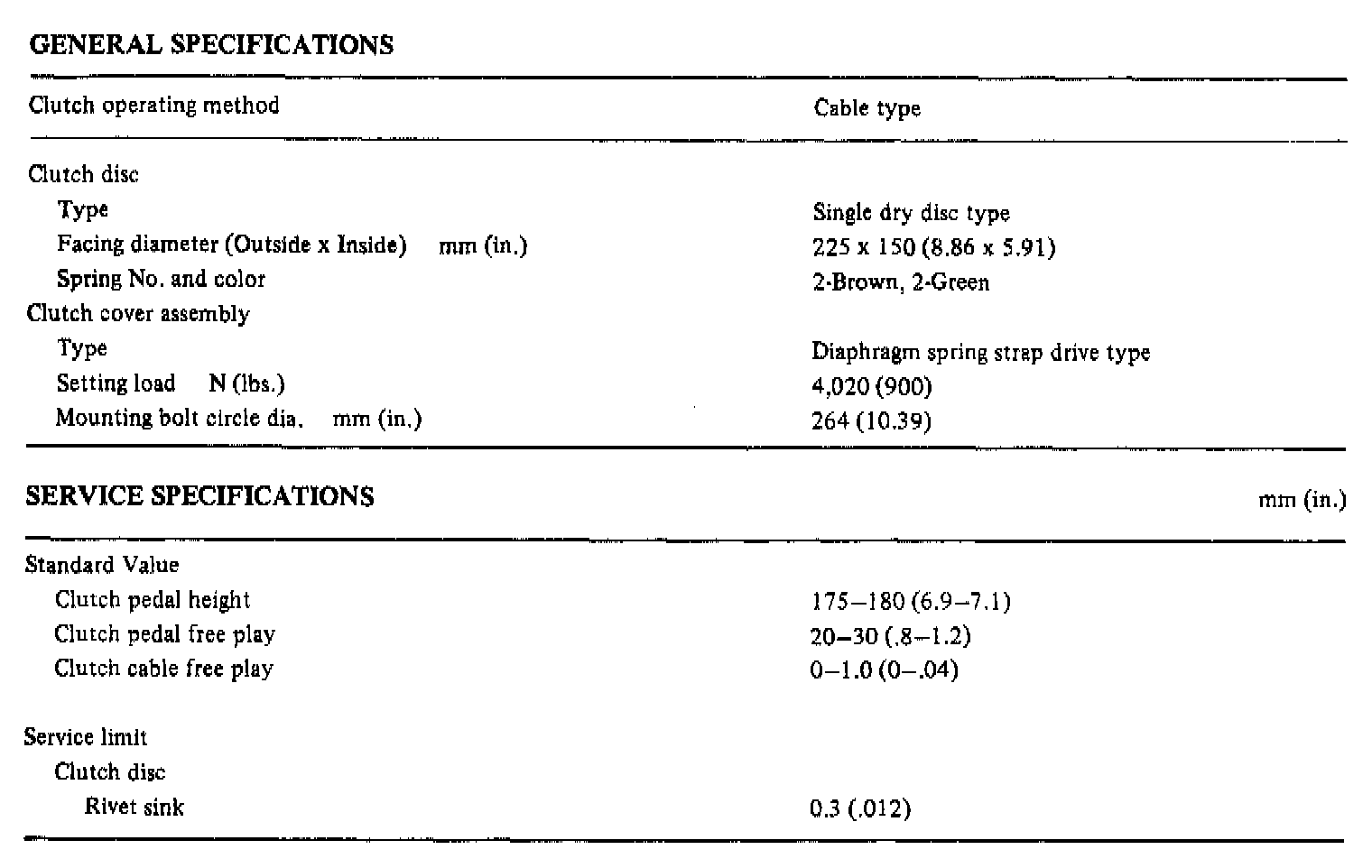

KM165 4-spd M/T, Clutch Dimensions:

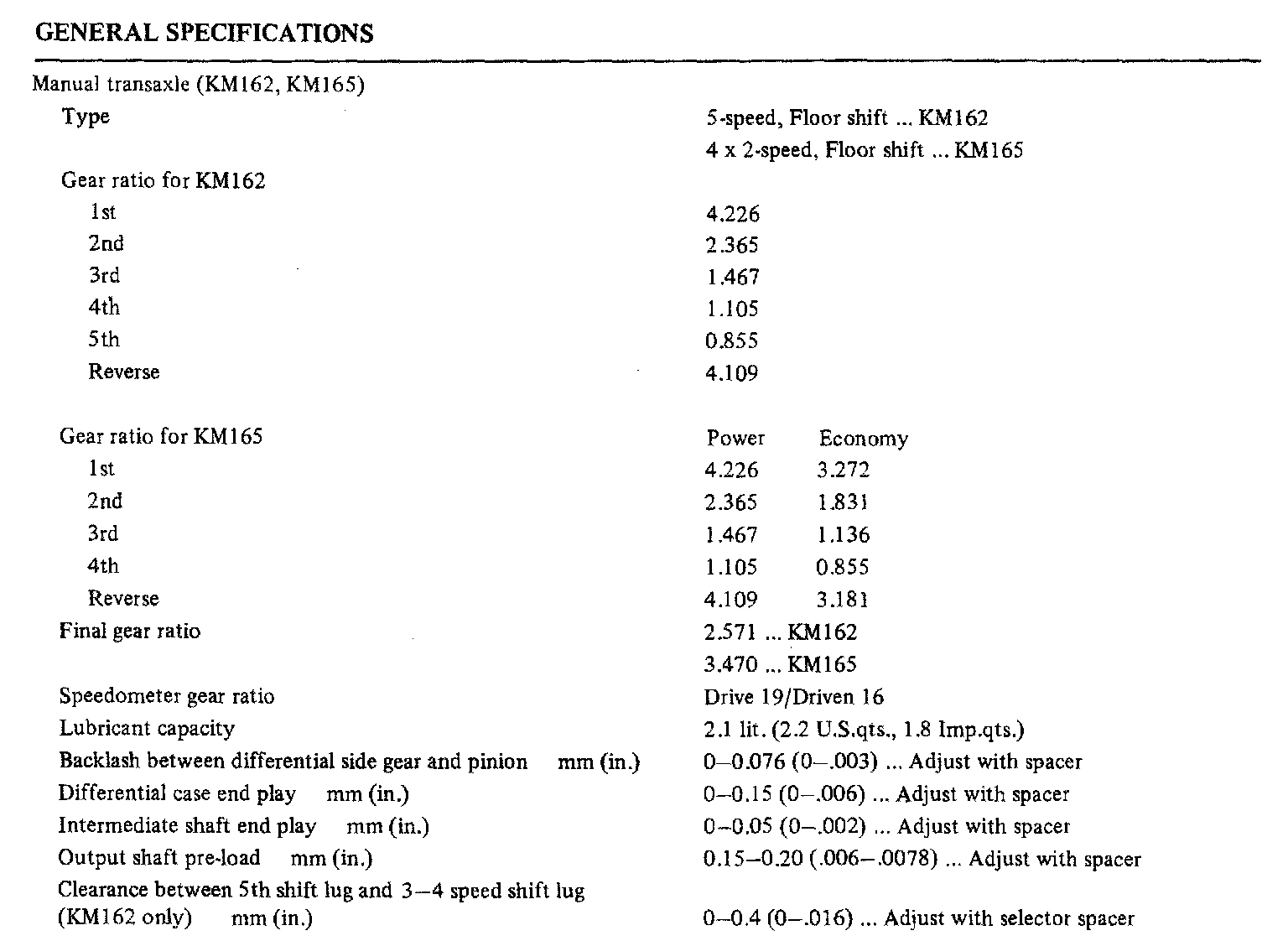

KM162 5-spd M/T/KM165 4-spd M/T, Gear Ratios:





KM162 5-spd M/T / KM165 4-spd M/T, Intermediate & Outputshaft End Play:

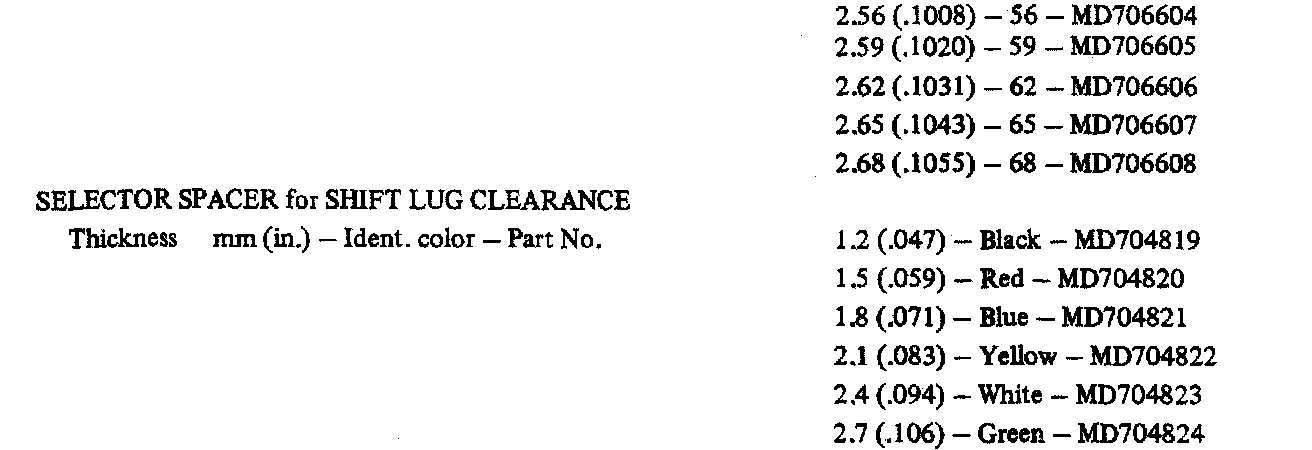

KM162 5-spd M/T / KM165 4-spd M/T, Spacer Clearance:
