Mitsubishi
>>
1983
>>
Cordia L4-1795cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Door Locks
Door Locks

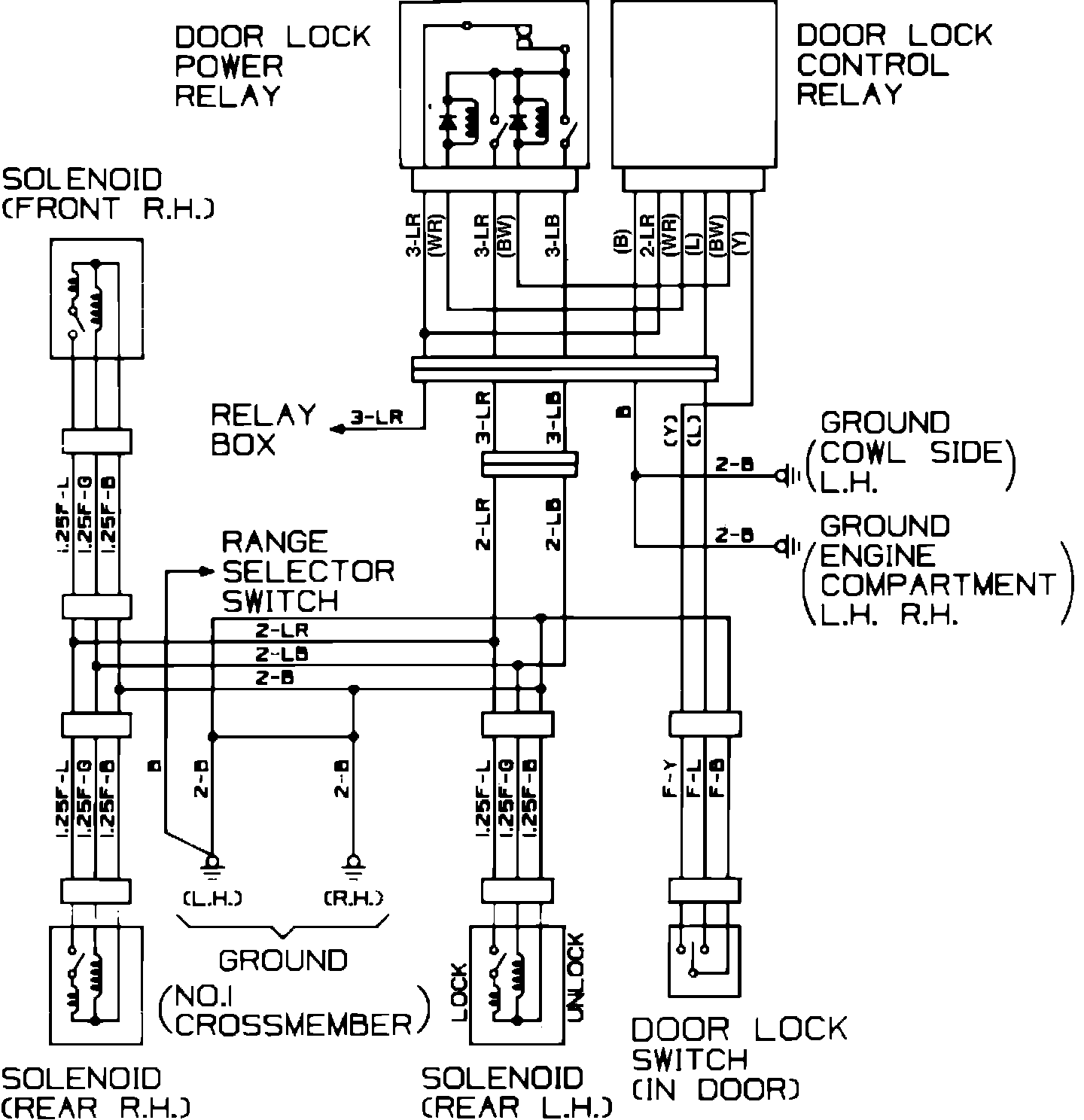

Fig. 1 Central Door Locking System Wiring Circuit.:
