Air Cleaner Housing: Service and Repair

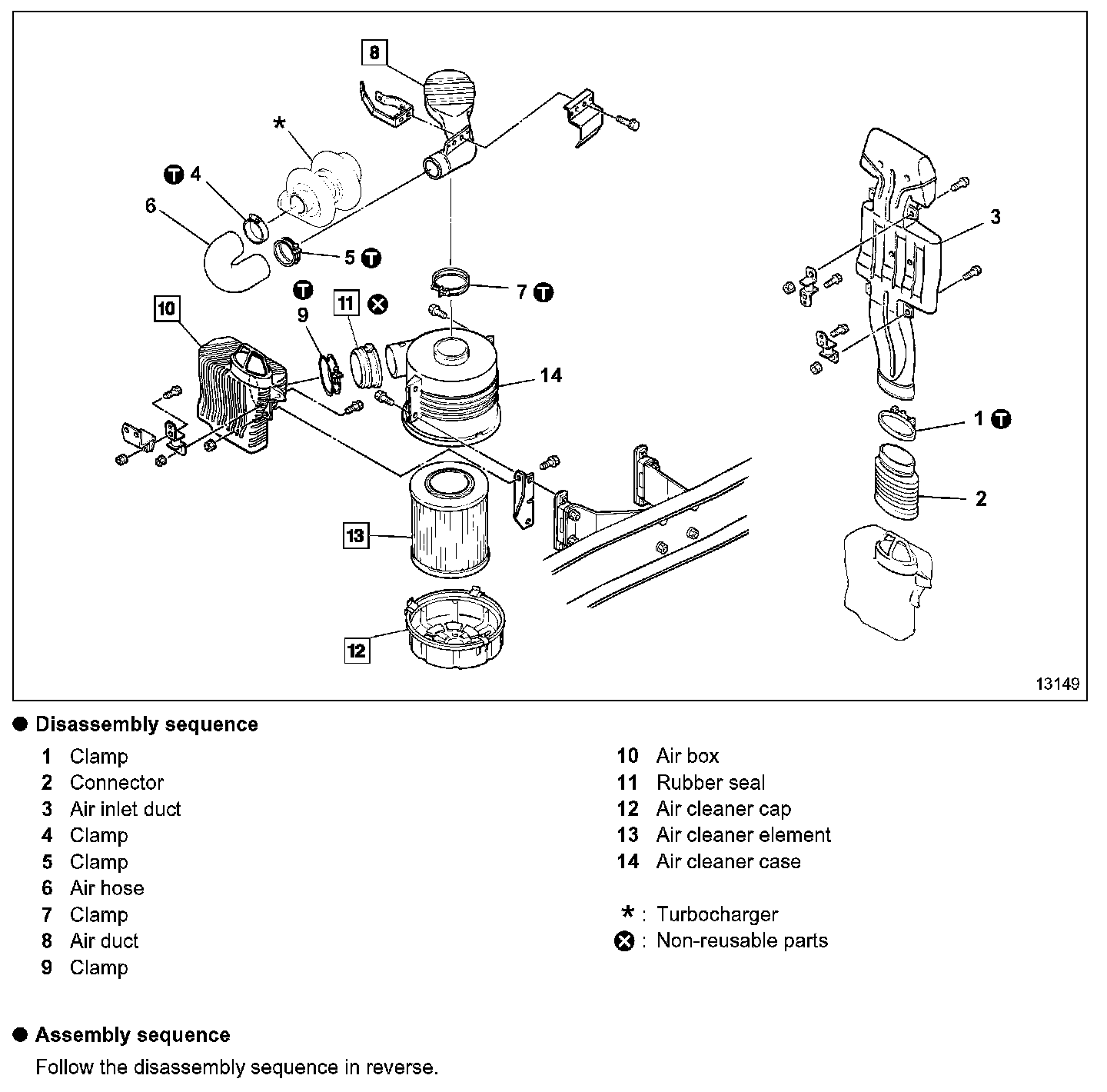

AIR DUCT AND AIR CLEANER







Tightening torque







Service procedure

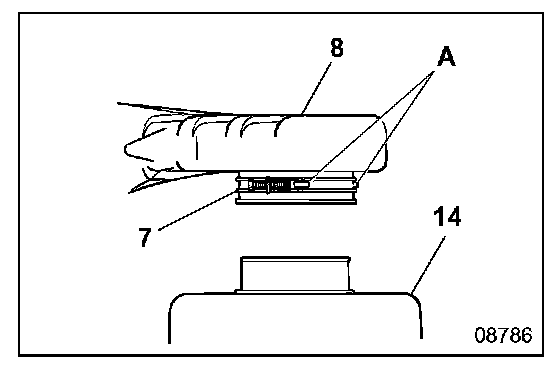

[8] Installation of air duct
- Fit clamp 7 over protrusions A of air duct 8.
- Push air duct 8 in until it hits air cleaner case 14.

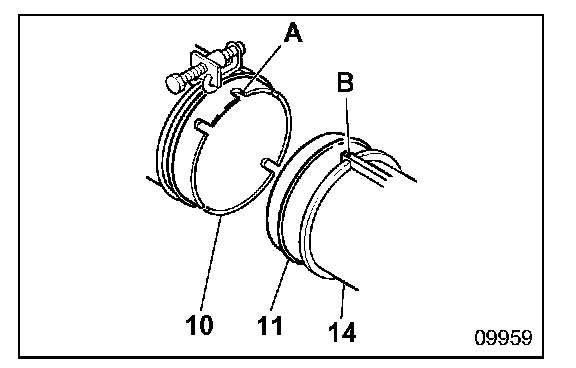

[10] Installation of air box
Align slit A of air box 10 with key B of air cleaner case 14.

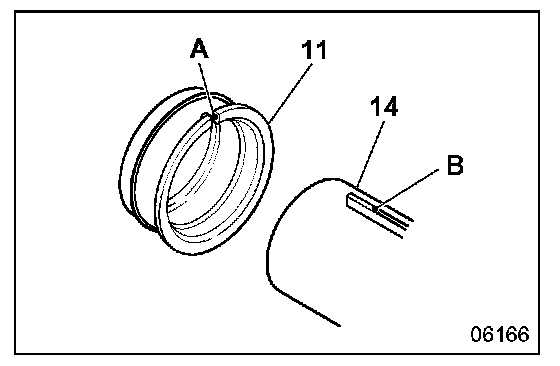

[11] Installation of rubber seal
Align slit A of rubber seal 11 with key B of air cleaner case 14.

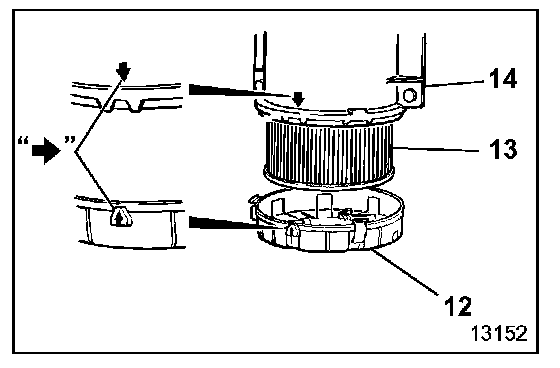

[12] Installation of air cleaner cap
- Alignment mark







[13] Air cleaner element

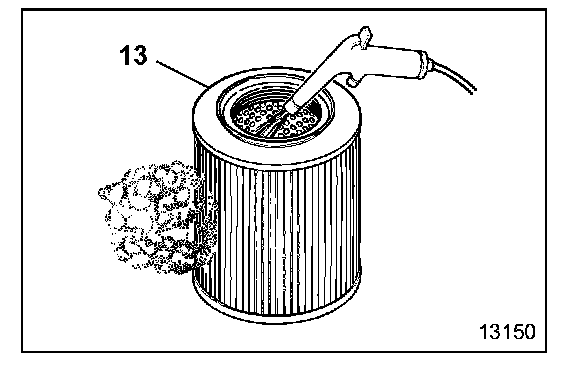

[Cleaning]
- Blow compressed air of 685 kPa{100 lbf/in2, 7 kgf/cm2} or less through air cleaner element 13 from the inside.
- When using compressed air, move the blower's nozzle up and down along the pleats of air cleaner element 13 evenly.

CAUTION:
- Do not tap or hit air cleaner element 13 to remove dust.
- Do not blow compressed air through air cleaner element 13 from the outside.

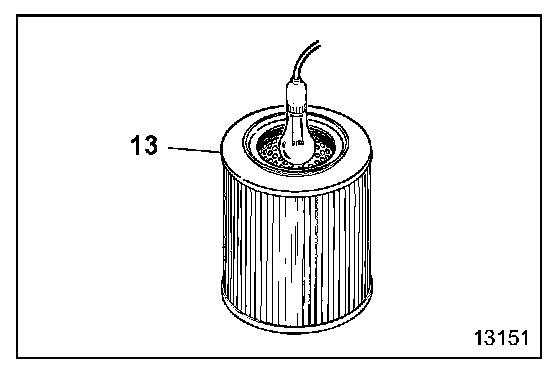

[Inspection]
- Illuminate the inside of air cleaner element 13.
- If parts of the filter paper are torn or thin, or if the packing of the upper surface of air cleaner element 13 is damaged, replace the air cleaner element.

NOTE: If the dust on air cleaner element 13 is wet due to oil smoke or soot, replace the air cleaner regardless of the scheduled replacement interval.
