Fuel Delivery and Air Induction: Service and Repair

Bleeding Air from Fuel System

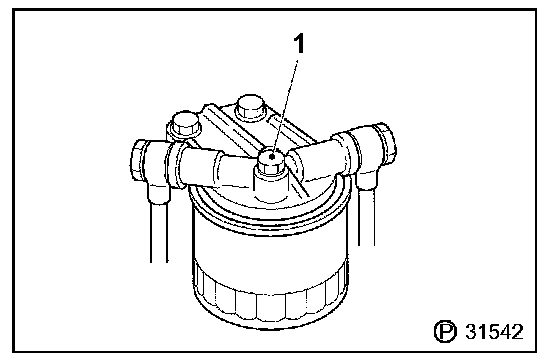

- Loosen the fuel filter air plug 1.

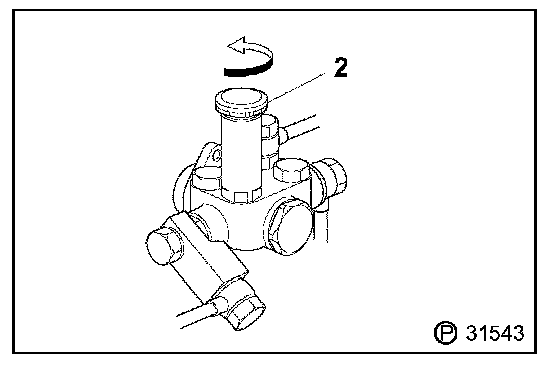

- Turn the priming pump knob 2 counterclockwise until it pops up.
- Move the priming pump knob 2 up and down to feed fuel through the fuel filter.
- When fuel emerging from the fuel filter air plug 1 no longer contains air bubbles, tighten the air plug securely.







- Move the priming pump knob 2 up and down five or six more times. Then, press the knob down and screw it clockwise to lock it in position.
- Wipe up all spilled fuel, then start the engine.
- Check that no fuel leakage occurs.

WARNING:
- Be sure to wipe up all spilled fuel. Unless it is wiped up, it could catch fire.
- Fuel is highly flammable. Keep it away from flames and sources of heat.
