Removal and Replacement

Service procedure







[1] Removal of accelerator pedal assembly

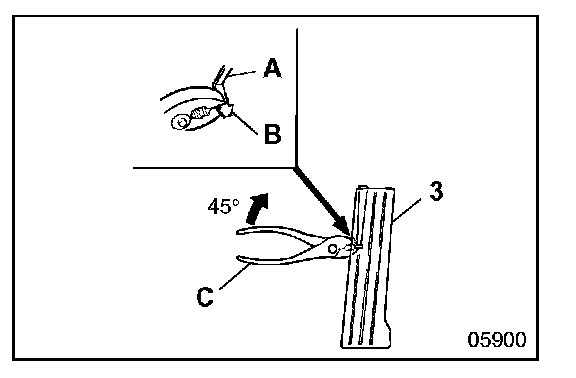

Pinch hook B of stopper A of accelerator pedal 3 using pliers C and rotating approximately 45° pull out the stopper towards the front of the vehicle.

CAUTION: Take care not to damage stopper A itself during removal, do not pull it out too forcibly.
