Mercury
>>
2010
>>
Milan FWD L4-2.5L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Diagrams
>>
Exploded Views
Exploded Views
6F35
Transaxle

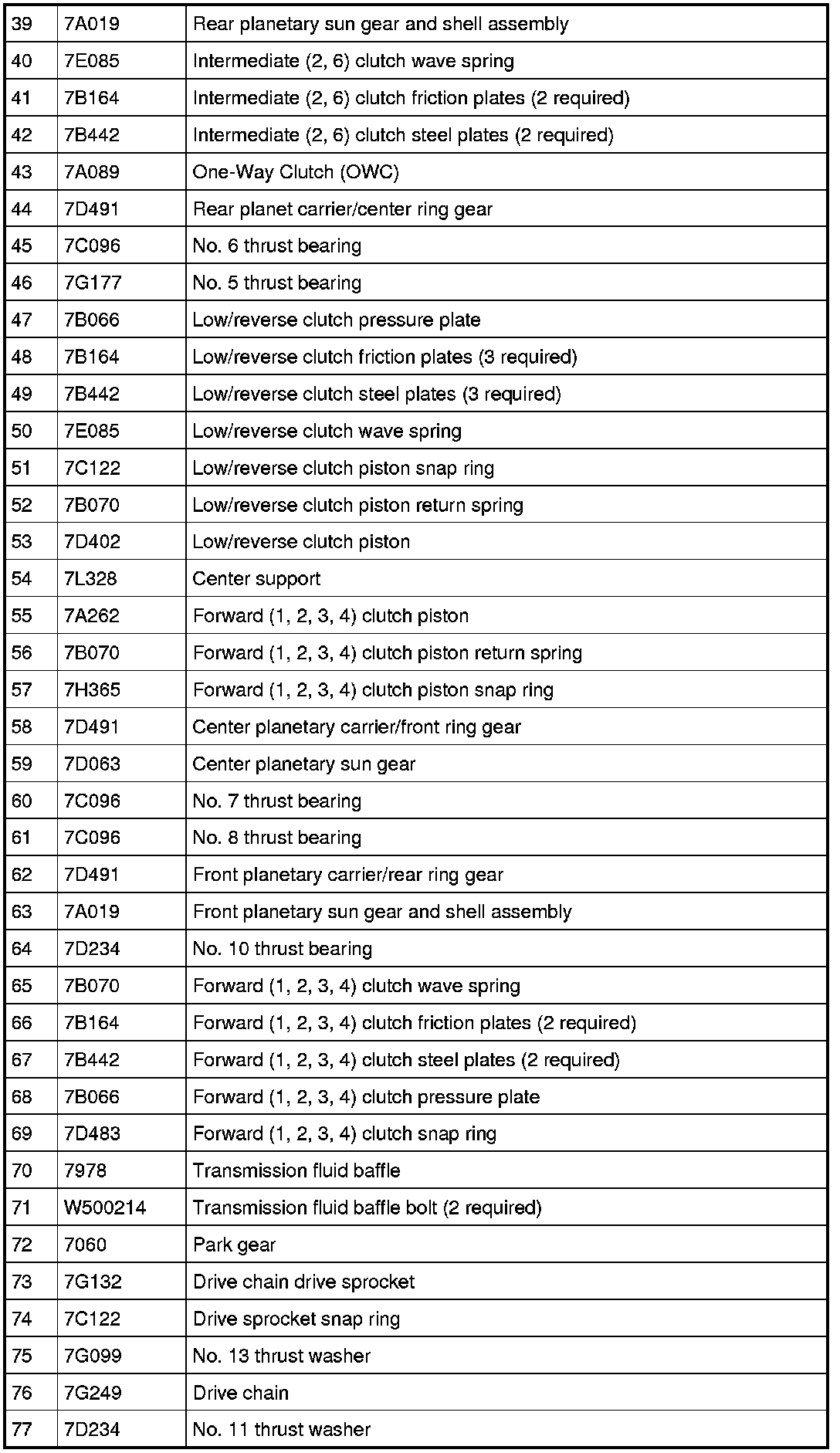

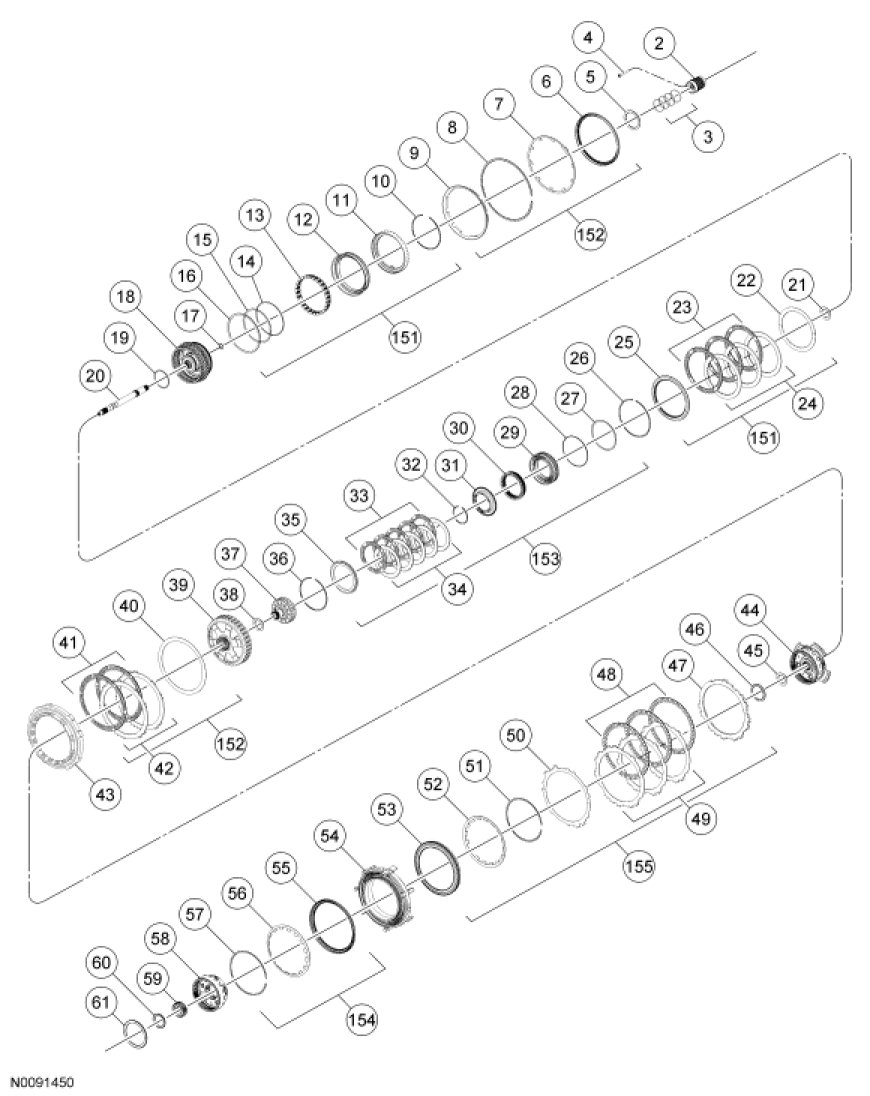

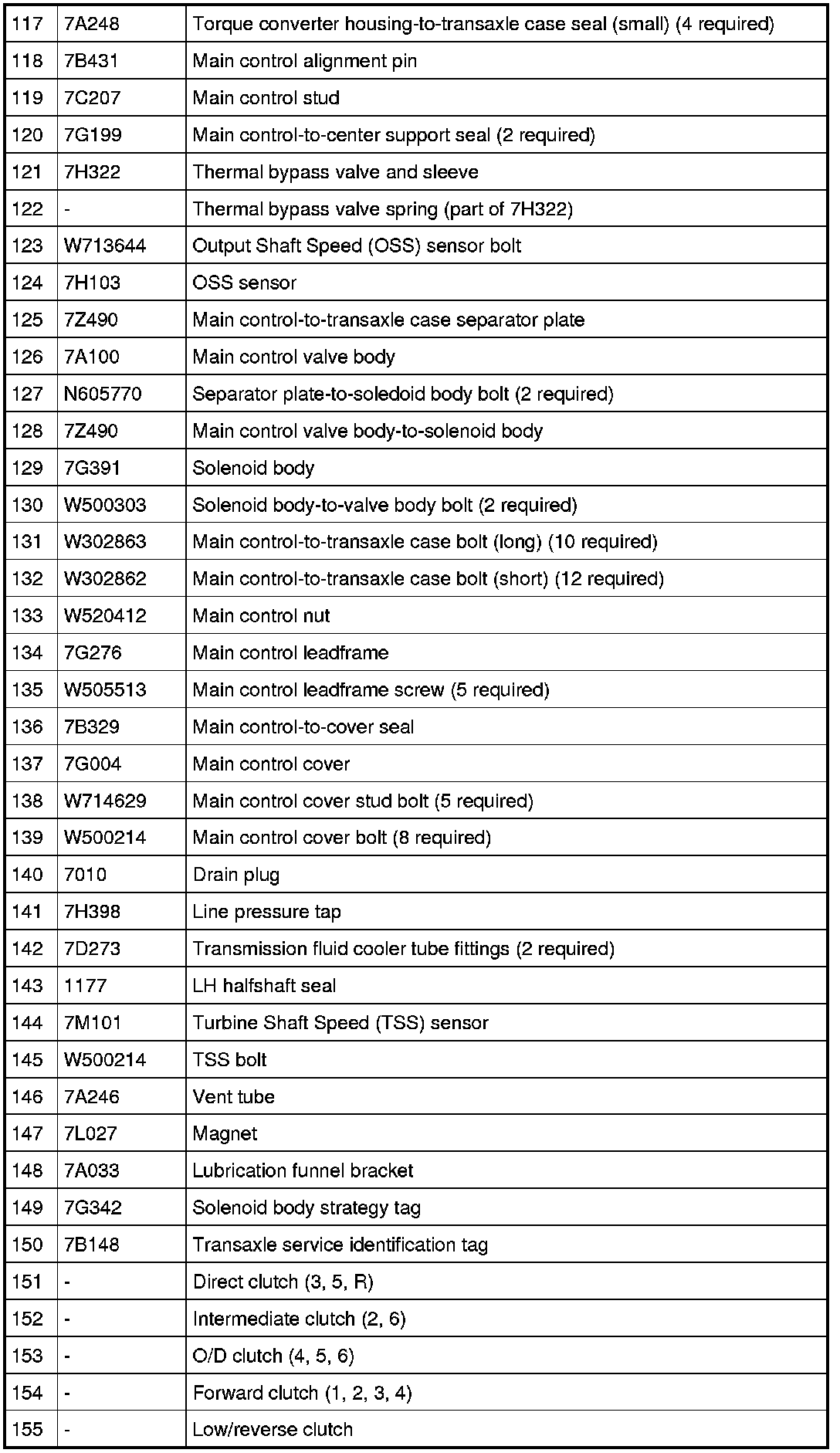

Disassembled Views
