Mercury
>>
2010
>>
Milan FWD L4-2.5L Hybrid
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Diagrams
>>

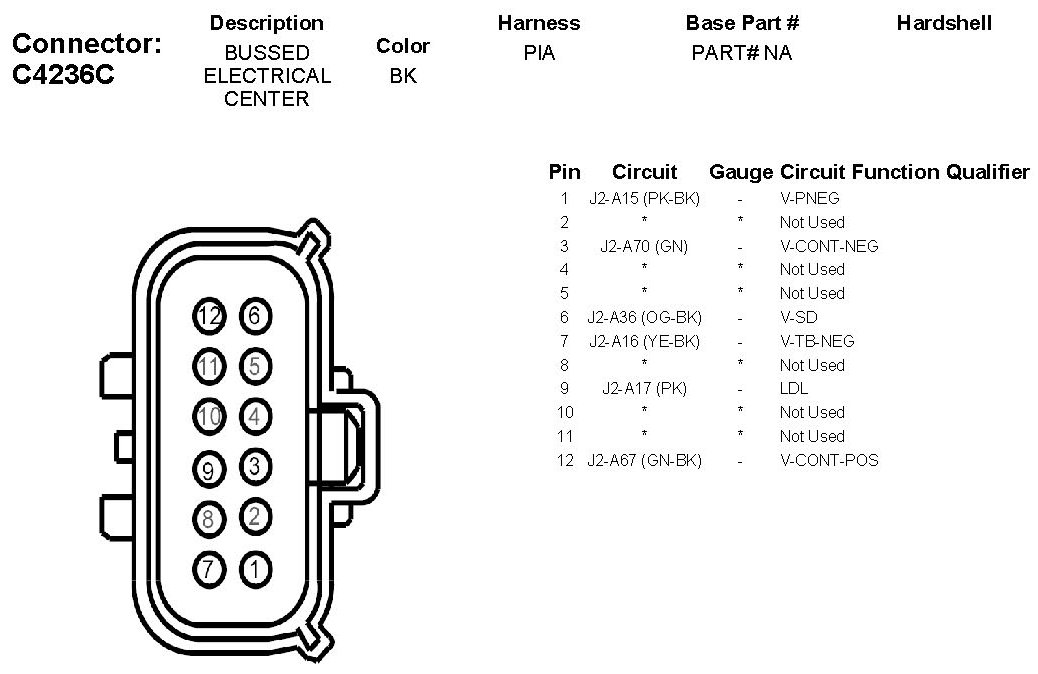

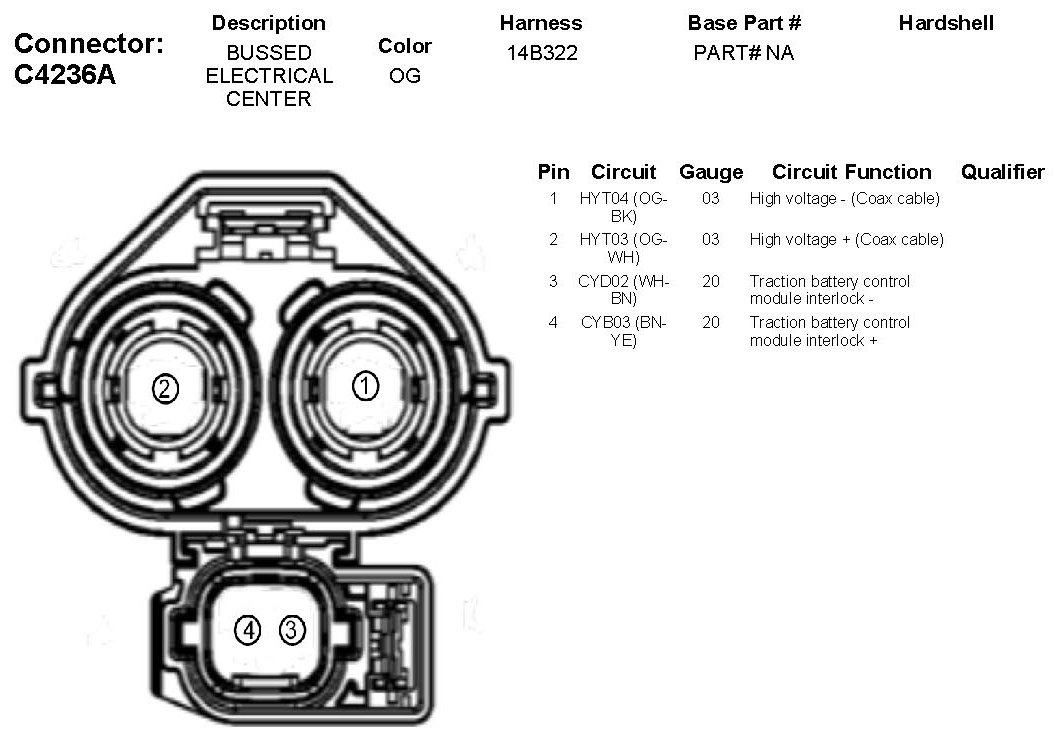

Connector Views
>>
Bussed Electrical Center
Bussed Electrical Center
