Mercury
>>
2010
>>
Milan FWD L4-2.5L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Battery Condition Monitor, Hybrid Drive
>>

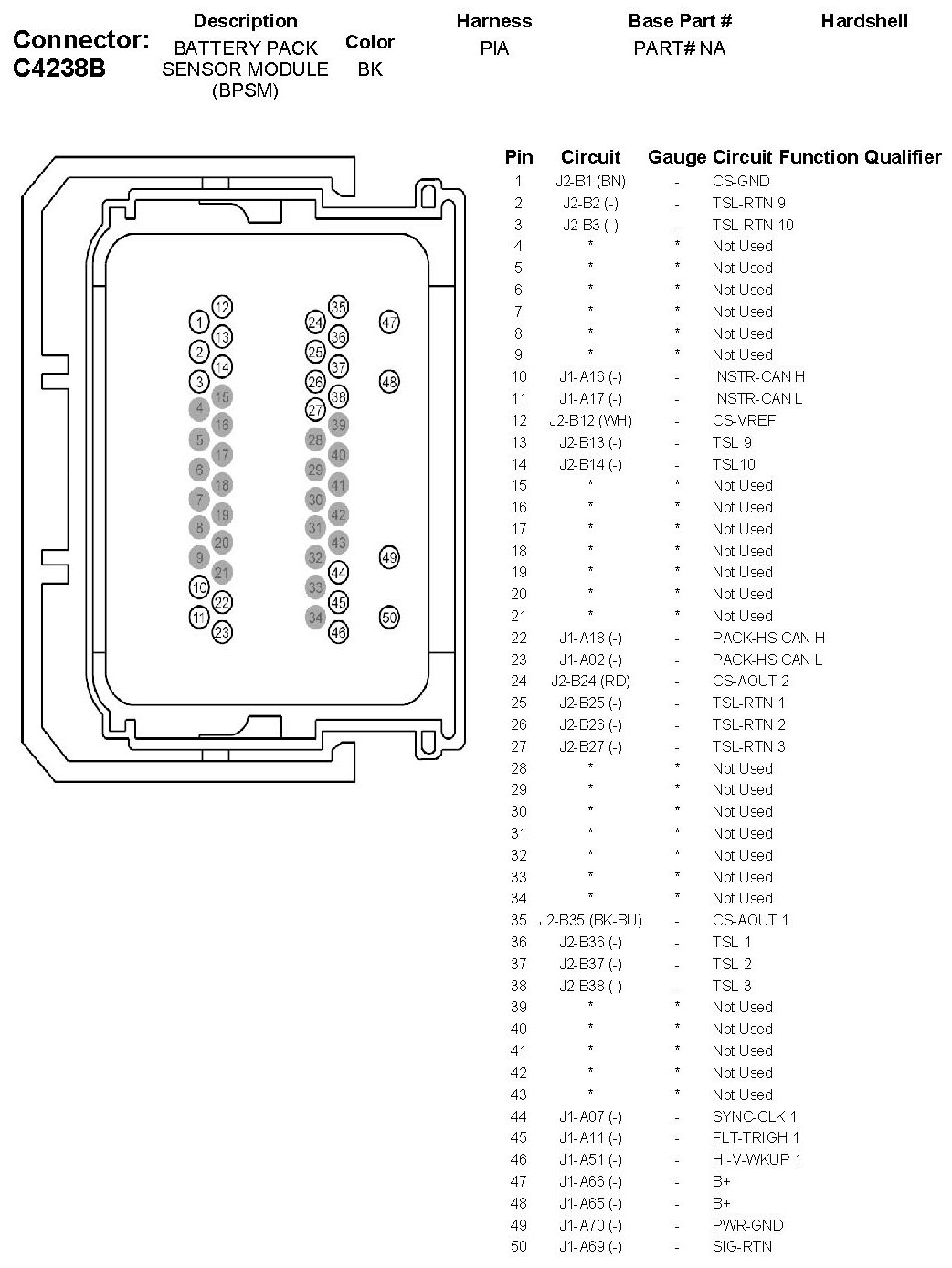

Battery Pack Sensor Module (BPSM)
Battery Pack Sensor Module (BPSM)
