Milan AWD V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Mechanical Diagrams
>>
Drive Belt
Drive Belt

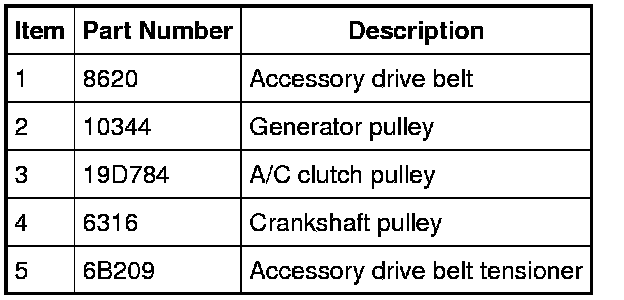

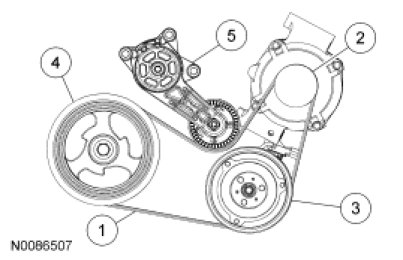

Accessory Drive Belt Routing
Accessory Drive Belt
Coolant Pump
Drive Belt
