Grand Marquis V8-4.6L Flex Fuel
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Exhaust System
>>
System Diagram
System Diagram

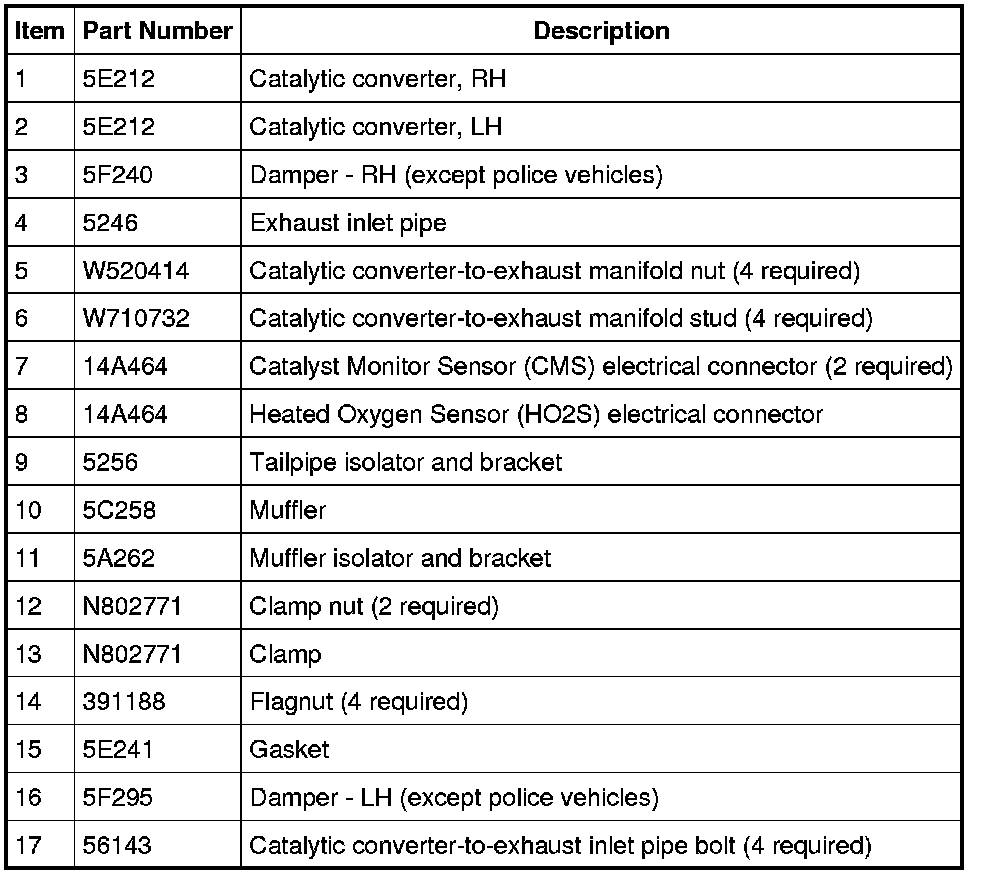

Exhaust System
- Exploded View

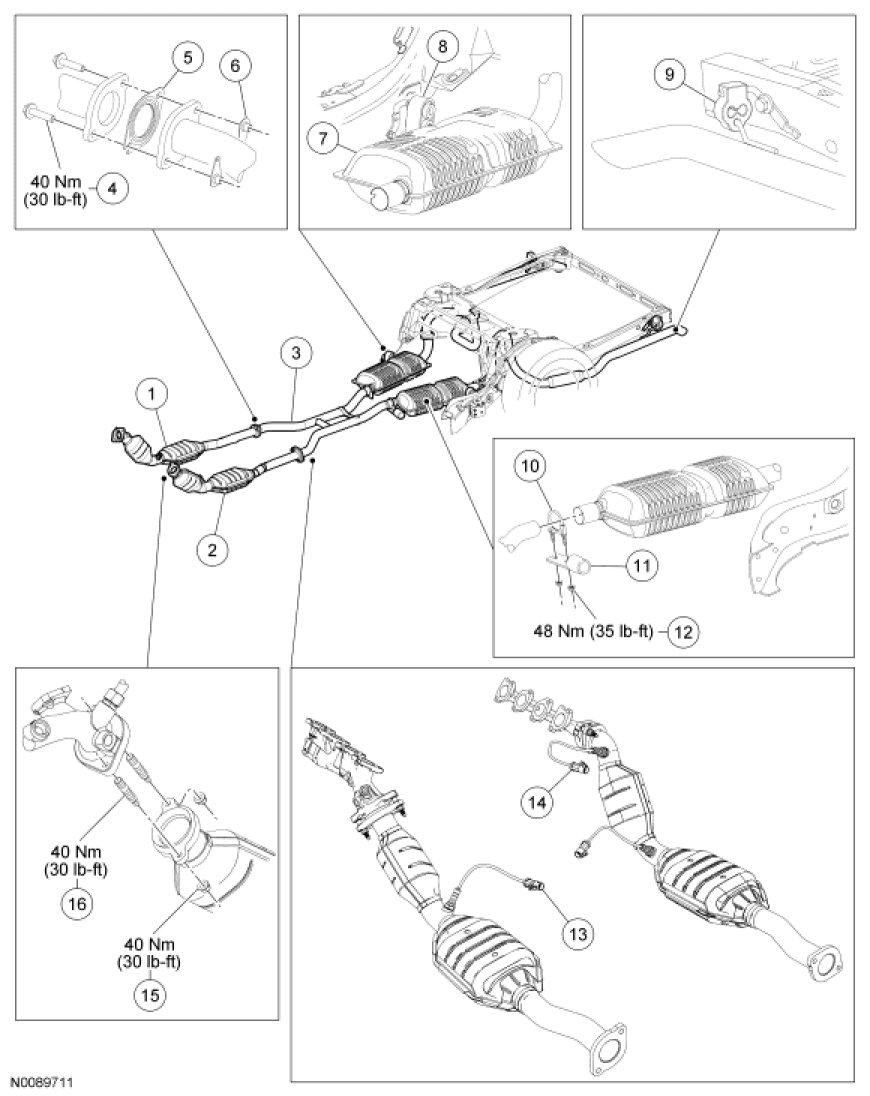

Single Exhaust

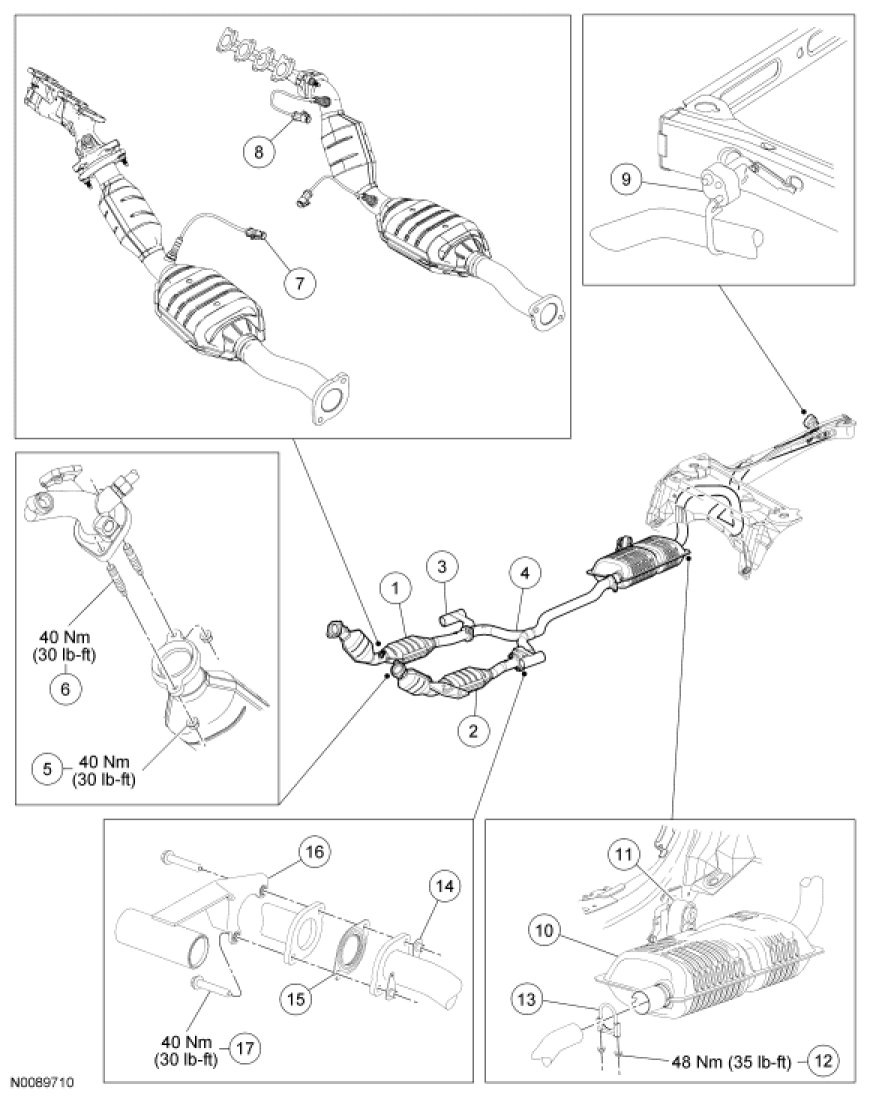

Dual Exhaust
