Mercury
>>
2010
>>
Grand Marquis V8-4.6L Flex Fuel
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
Disassembled View
Disassembled View
Transmission

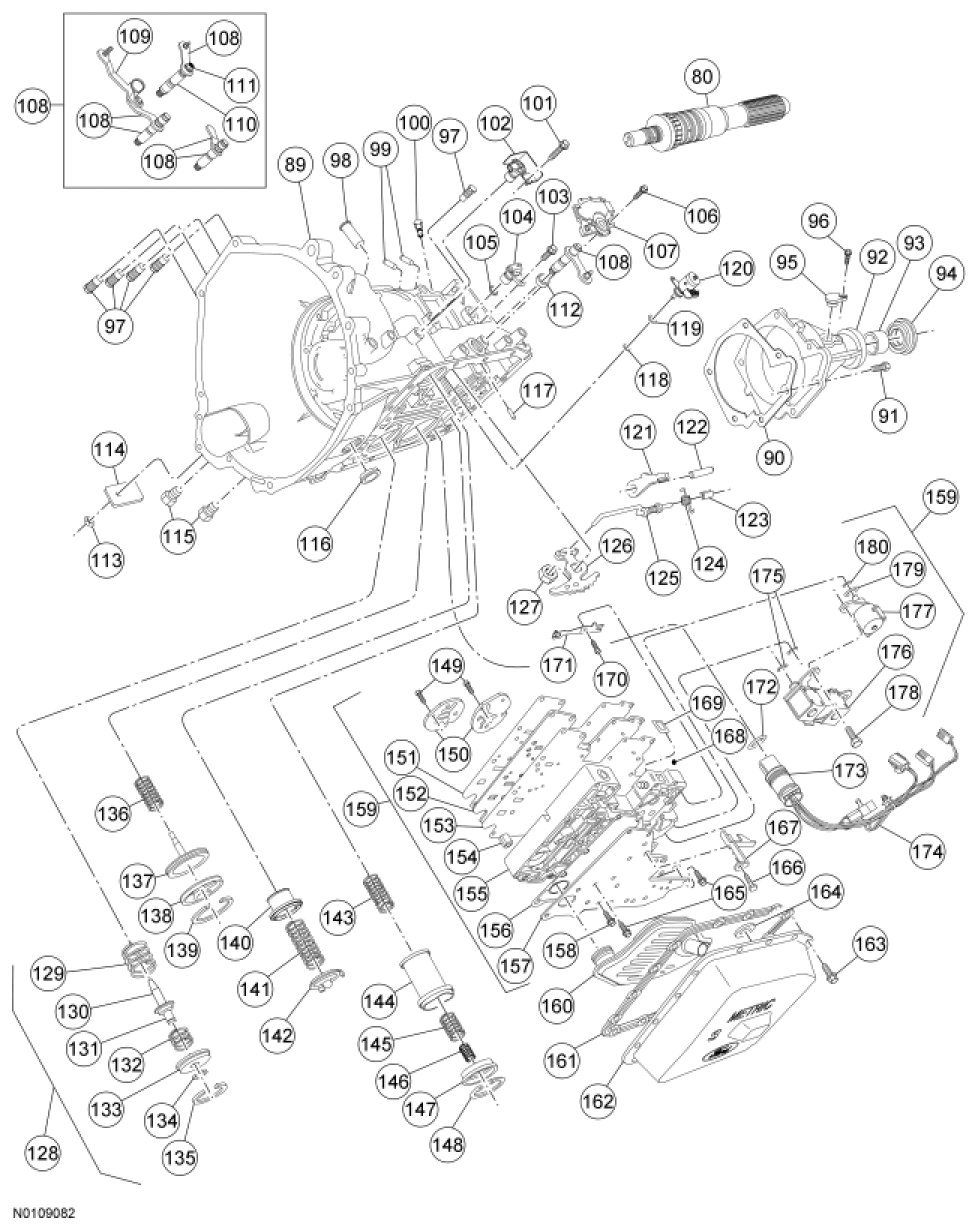

Disassembled View
