Instrument Cluster Bulb

INSTRUMENT CLUSTER BULB

Removal and Installation
1. Remove the instrument cluster.

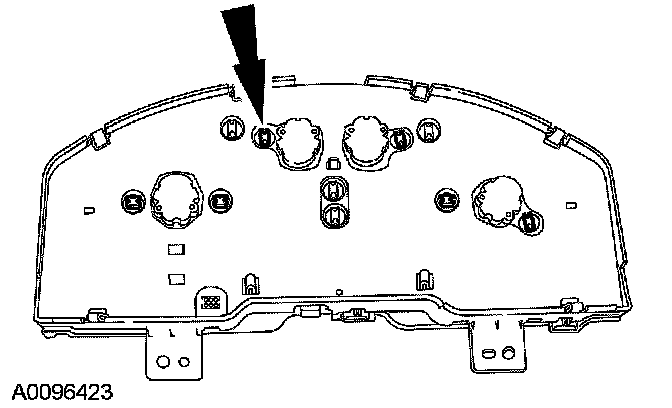

2. NOTE: To remove the illumination bulb, rotate the bulb one quarter turn counterclockwise and lift it out from the instrument cluster.

Remove the illumination bulb(s) in question.

3. To install, reverse the removal procedure.
