Register - Passenger Side

REGISTER - PASSENGER SIDE

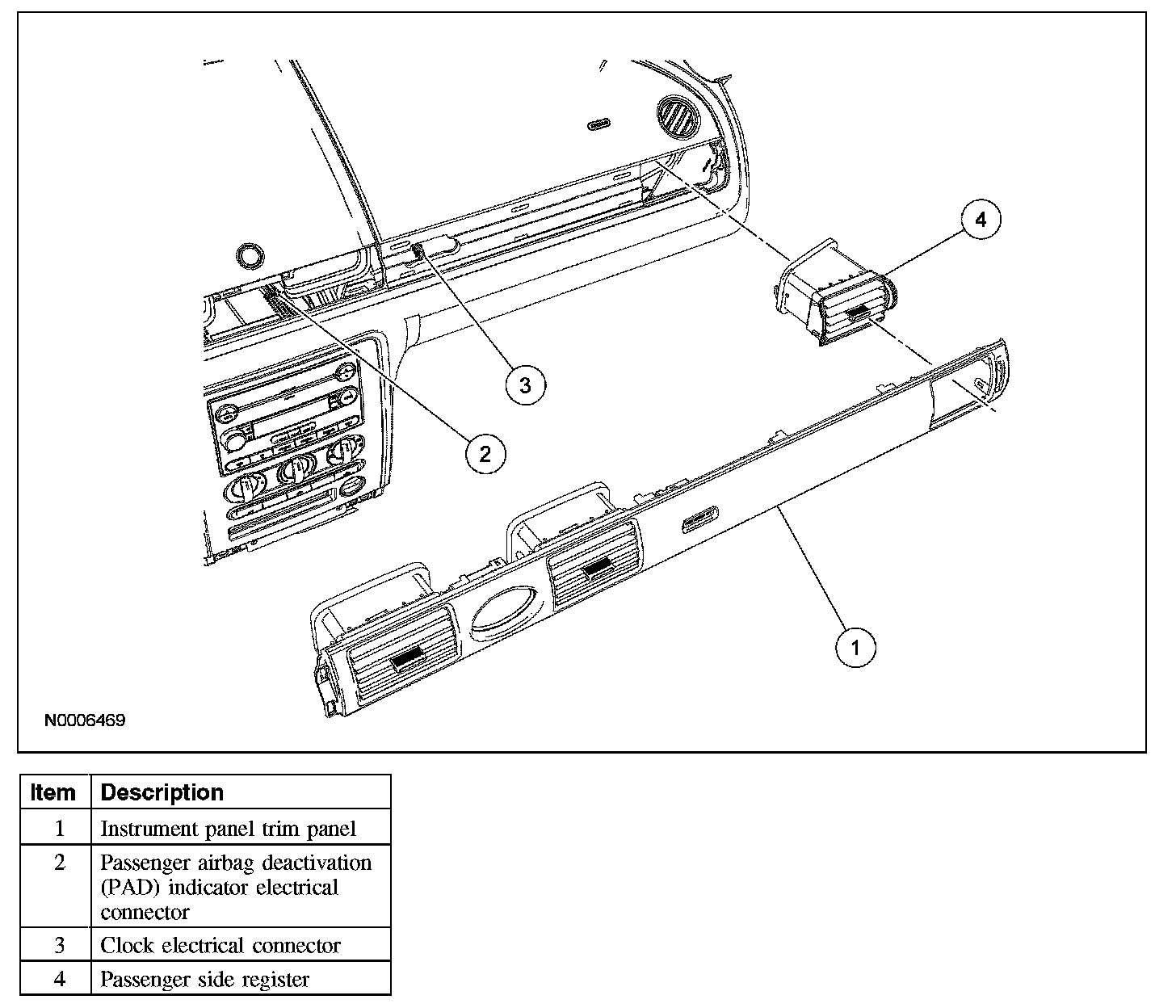

Removal and Installation
1. Remove the instrument cluster finish panel.
2. Remove the instrument panel trim panel.
3. Disconnect the passenger airbag deactivation (PAD) indicator electrical connector.
4. Disconnect the clock electrical connector (if equipped).
5. Release the 4 clips and remove the passenger side register.
6. To install, reverse the removal procedure.
