Home >> Mercury >> 2007 >> Montego AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Brakes and Traction Control >> Parking Brake System >> Parking Brake Cable >> Diagrams

Parking Brake Cable: Diagrams

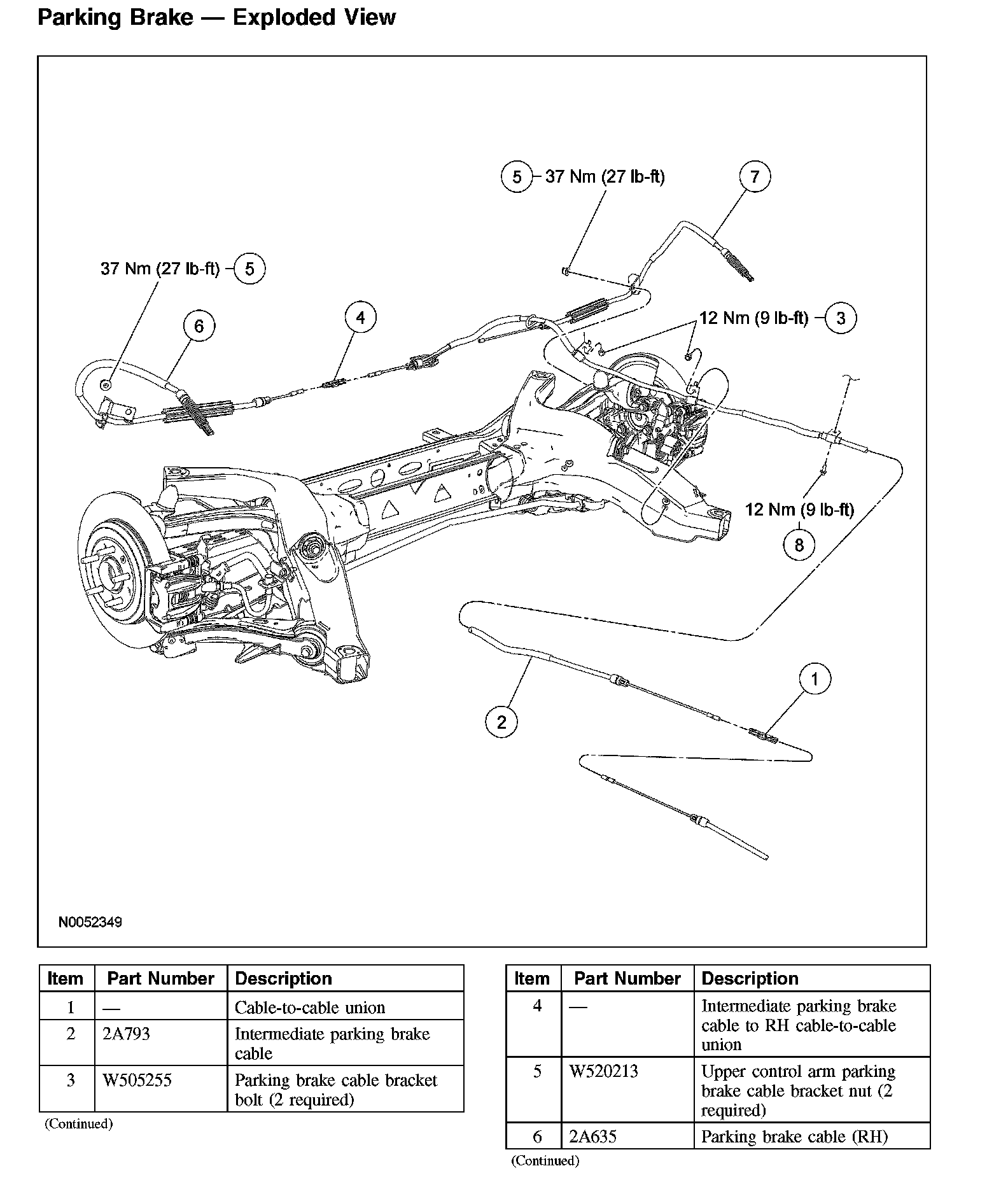

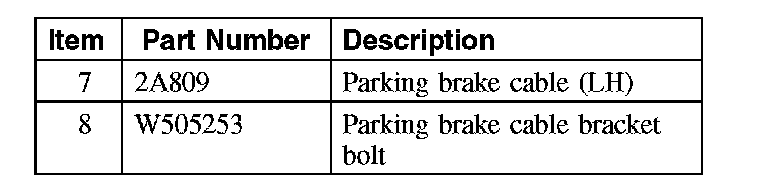

Parking Brake - Exploded View:
