Home >> Mercury >> 2007 >> Milan FWD L4-2.3L VIN Z >> Repair and Diagnosis >> Diagrams >> Connector Views >> Automatic Transmission/Transaxle >> Shift Interlock, A/T

Shift Interlock, A/T

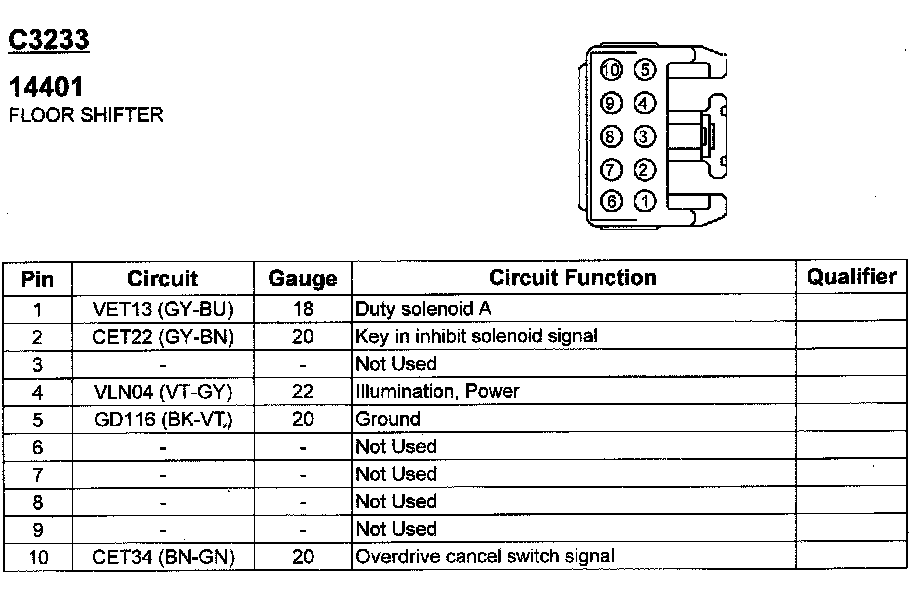

C3233:

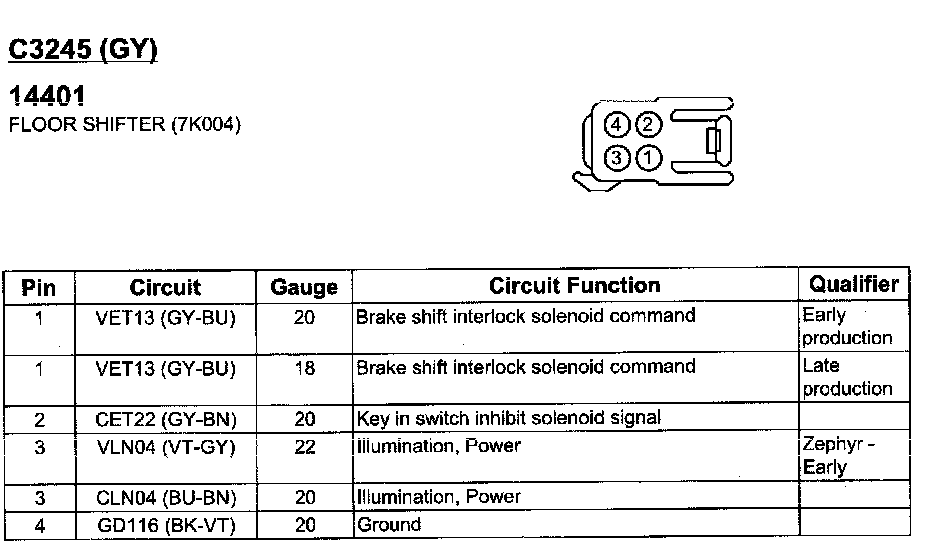

C3245:
