Mercury
>>
2007
>>
Milan AWD V6-3.0L VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

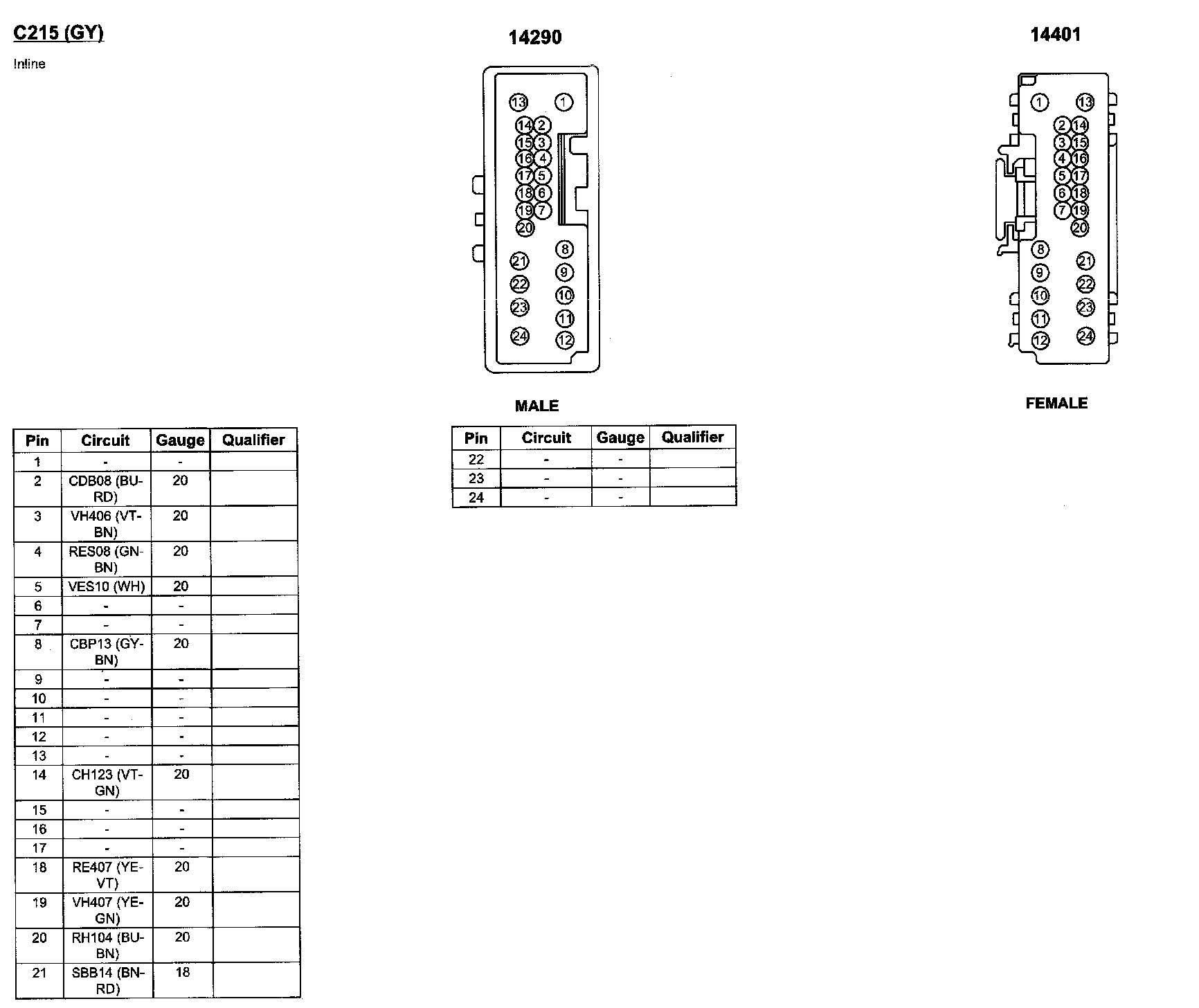

Multiple Junction Connector
>>
C215
C215
C215:
