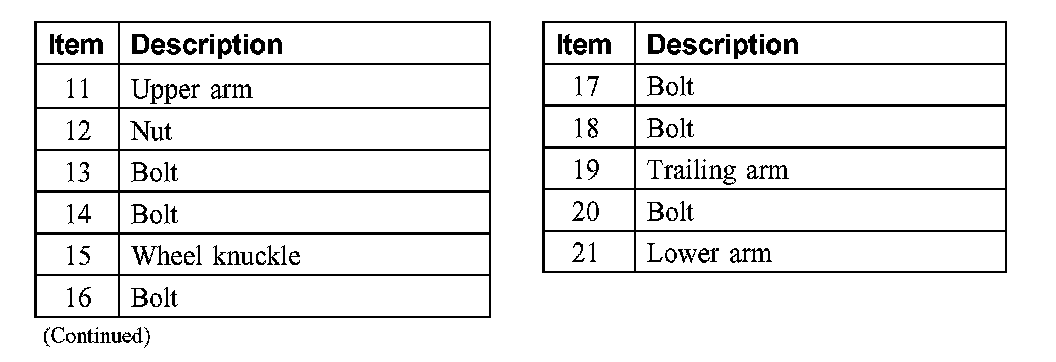

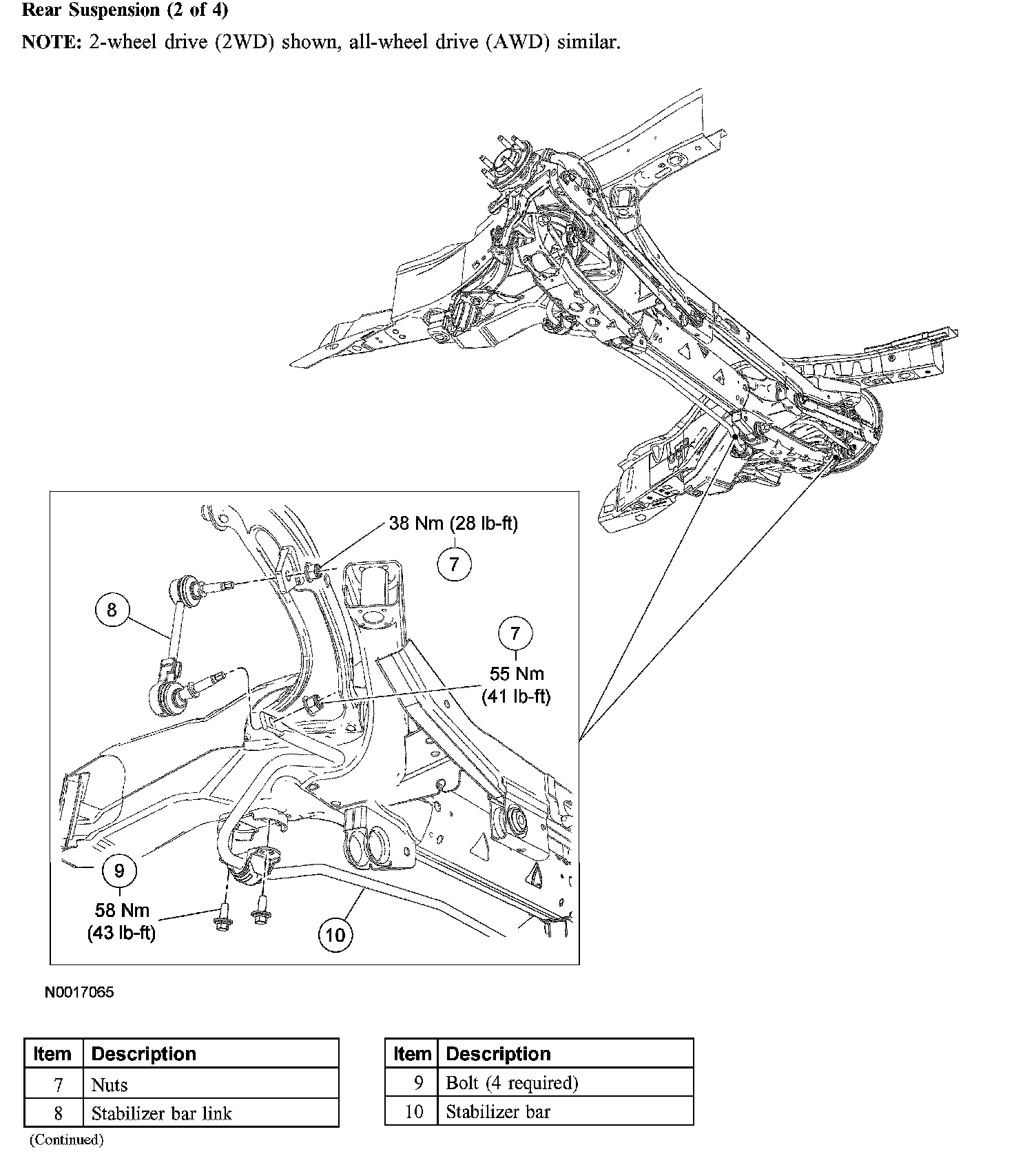

Rear Suspension - Exploded View
Rear Suspension - Exploded View
Rear Suspension - Exploded View:
Rear Suspension - Exploded View:
Rear Suspension - Exploded View:
Rear Suspension - Exploded View:
Rear Suspension - Exploded View:
